Proximity Probes 330140-08-10-11-05 – Bently Nevada

Description

Product Overview

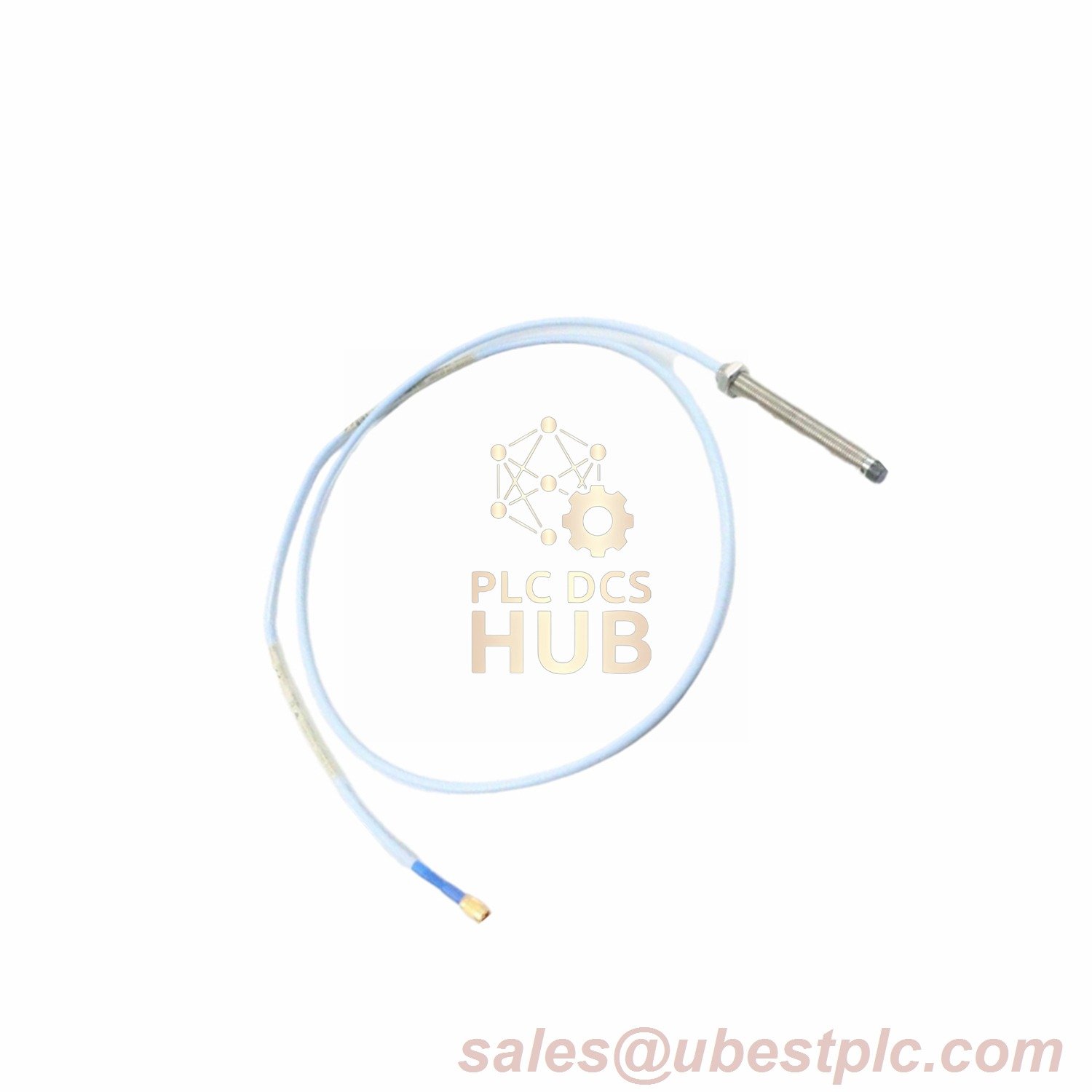

The Bently Nevada 330140-08-10-11-05 is an ATEX/CSA/IECEx-certified 8mm vibration probe with FluidLoc™ leak-proof technology. Engineered for extreme industrial environments, it features a 0.8″ stainless steel case and 1.0m armored cable, operating from -52°C to +260°C to monitor critical rotating equipment in hazardous areas.

Technical Specifications

• Manufacturer/Model: Bently Nevada 330140-08-10-11-05
• Suffix Code Breakdown:
  – 08: 20.3mm (0.8″) case length
  – 10: 1.0m (3.3ft) total length
  – 11: FluidLoc cable + connector protector
  – 05: CSA/ATEX/IECEx certified
• Core Specifications:
• DC Resistance: 7.59Ω ±0.5 @ 1.0m
• Measurement Range: 0.25-1.75mm (±0.025mm)
• Frequency Response: 0.5 Hz – 10 kHz (±3dB)
• Temperature Limits:
  – Probe Tip: -52°C to +218°C
  – Cable Assembly: -51°C to +260°C
• Seal System: Dual Viton® O-rings (15 bar rating)
• Ingress Protection: IP68 (with FluidLoc™)
• Vibration Tolerance: 25G (IEC 60068-2-6)
