Description
Product Description

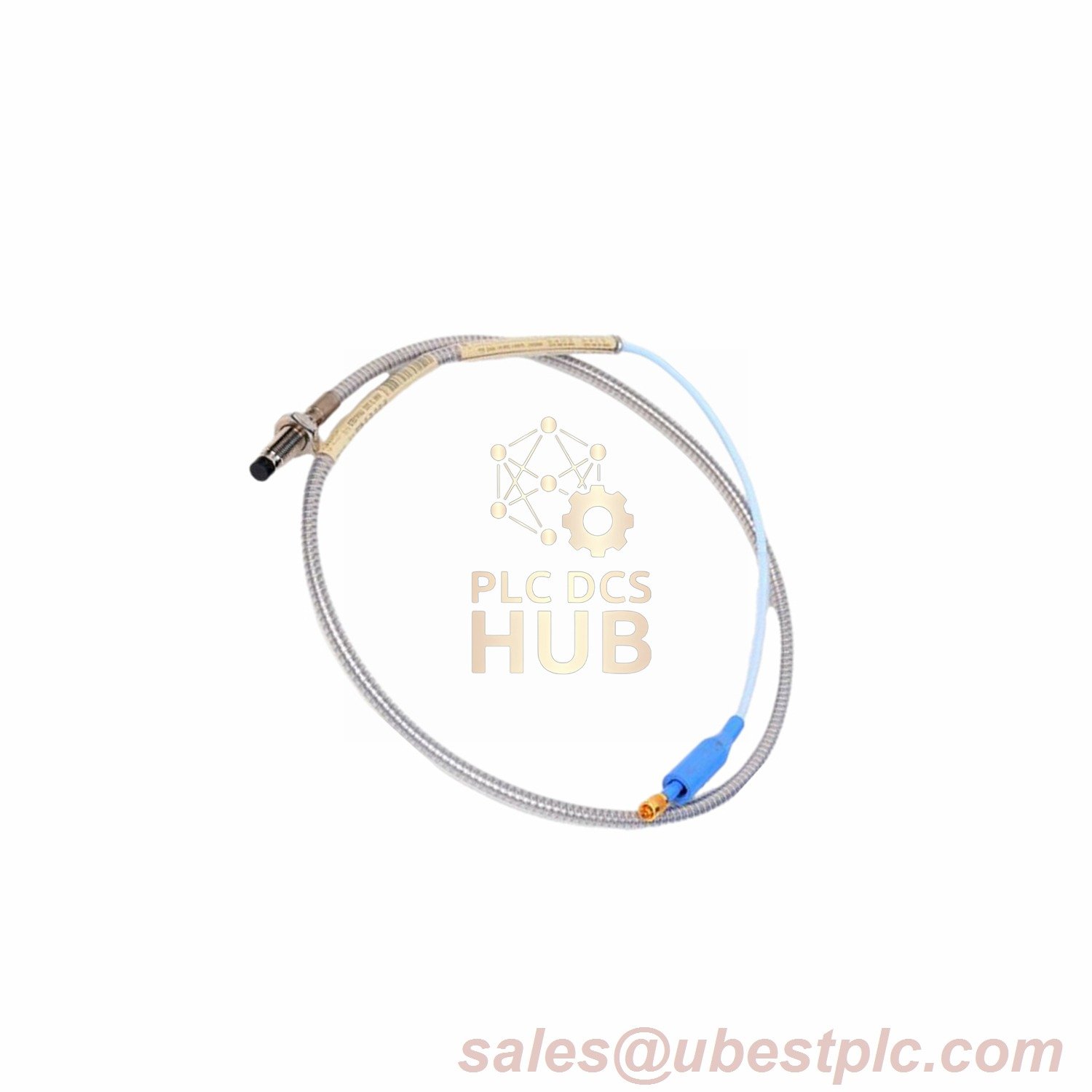

The Bently Nevada 330140-08-10-11-00 is a heavy-duty 8mm vibration probe featuring FluidLoc™ cable technology. Designed for harsh industrial environments, it operates across -52°C to +260°C with 0.8″ stainless steel housing, providing reliable machinery monitoring in oil-rich and high-moisture applications.
Technical Specifications
Manufacturer/Model: Bently Nevada 330140-08-10-11-00
Configuration Code:
– 08: 20.3mm (0.8″) case length
– 10: 1.0m (3.3ft) total length
– 11: FluidLoc cable + connector protector
– 00: No certifications
DC Resistance: 7.59Ω ±0.5 @ 1.0m
Measurement Accuracy: ±0.025mm (±1mil)
Temperature Range:
– Probe Tip: -52°C to +218°C
– Cable/Connector: -51°C to +260°C
Seal Material: Viton® O-ring (330N retention)
Why Choose This Model?
- Meets API 670 5th Edition accuracy requirements
- 304 stainless steel resists saltwater corrosion
- 3% ASF stability in 93% humidity (IEC 68-2-3)
Contact Us: For COO requests or technical support, email sales@ubestplc.com.
