Proximity Probes Without Armor 330905-00-08-05-02-00

Description

???? Premium Performance Proximity Probe

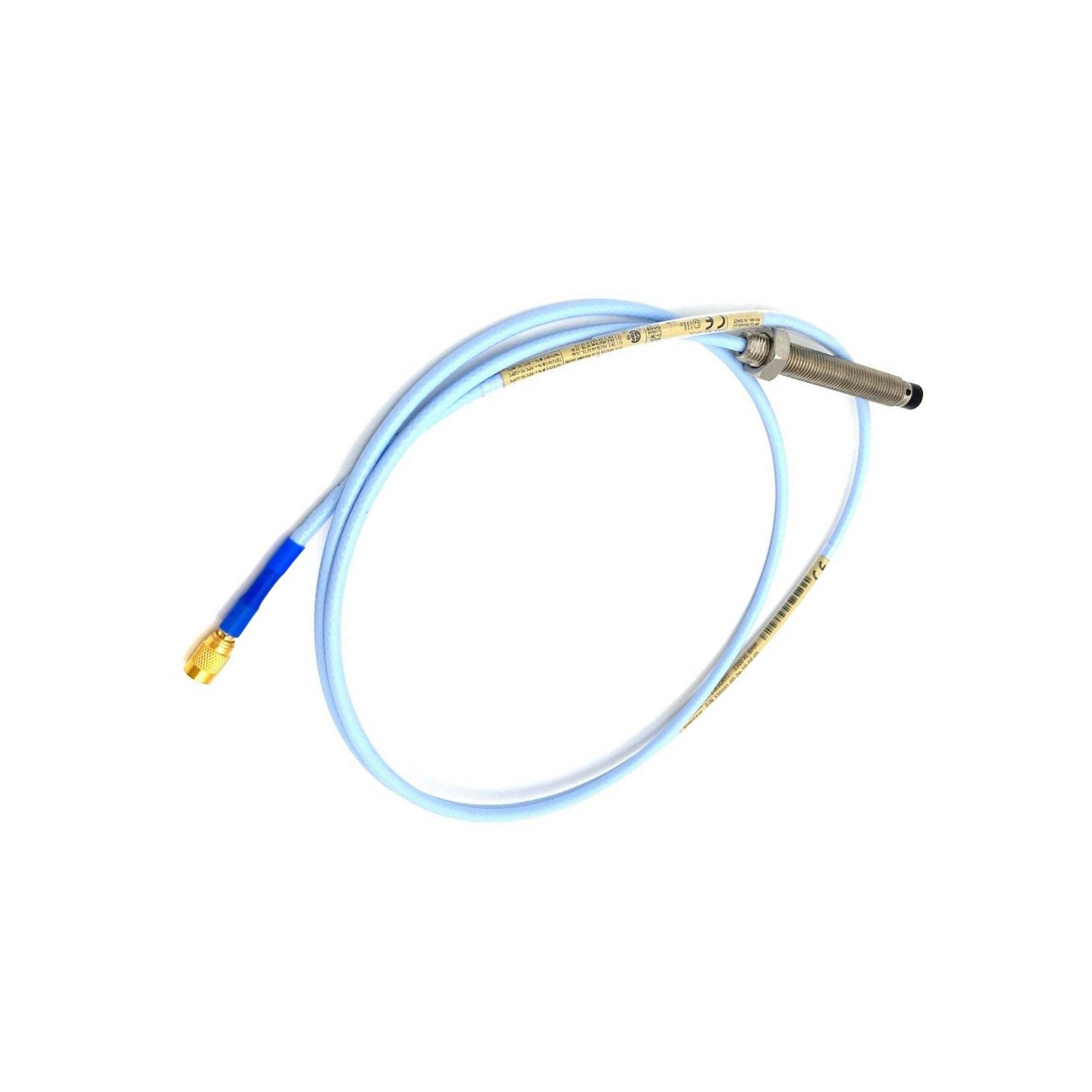

Bently Nevada 330905-00-08-05-02-00 is a 3300 NSv Proximity Probe optimized for industrial vibration monitoring. NEW & FACTORY-SEALED with 12-month warranty.

???? Core Specifications for 330905-00-08-05-02-00

Configuration: M10X1 Thread, No Armor | Case Length: 80mm
Cable: 0.5m (20″) | Probe Resistance: 4.0Ω ±0.5Ω
Connector: Mini Coaxial ClickLoc + Standard Cable
Linear Range: 0.25–1.75mm (10–70 mils) | ISF: 7.87 V/mm

⚙️ Advanced Engineering

Field Wiring: Up to 305m | Capacitance: 69.9 pF/m
Torque Limits: Max 0.56 N•m | Thread Engagement: 15mm
Material: PPS Tip + AISI 304 SST Case | Bend Radius: 25.4mm
Pressure Seal: Viton O-Ring (Untested by Default)

???? Technical Excellence

Frequency Response: 0–10 kHz (±3dB)
Target Size: Min 8.9mm Diameter | Optimal: 13mm+
Deviation (DSL): ±0.06mm | Temp Range: -52°C to +177°C
Cable Shield Resistance: 0.066Ω/m
