Description

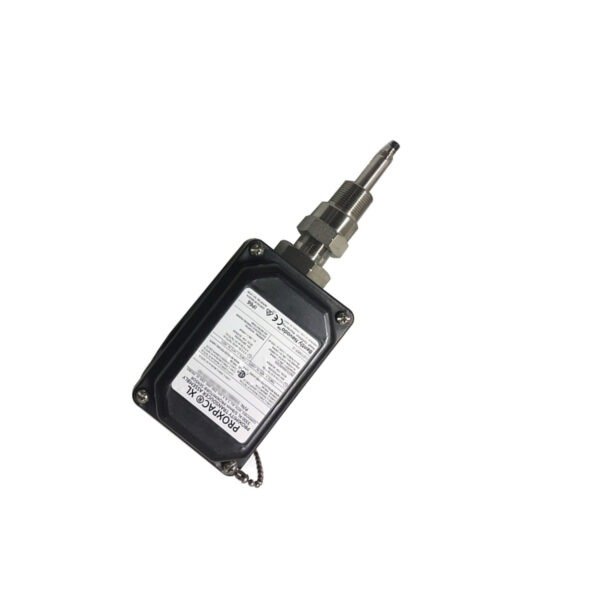

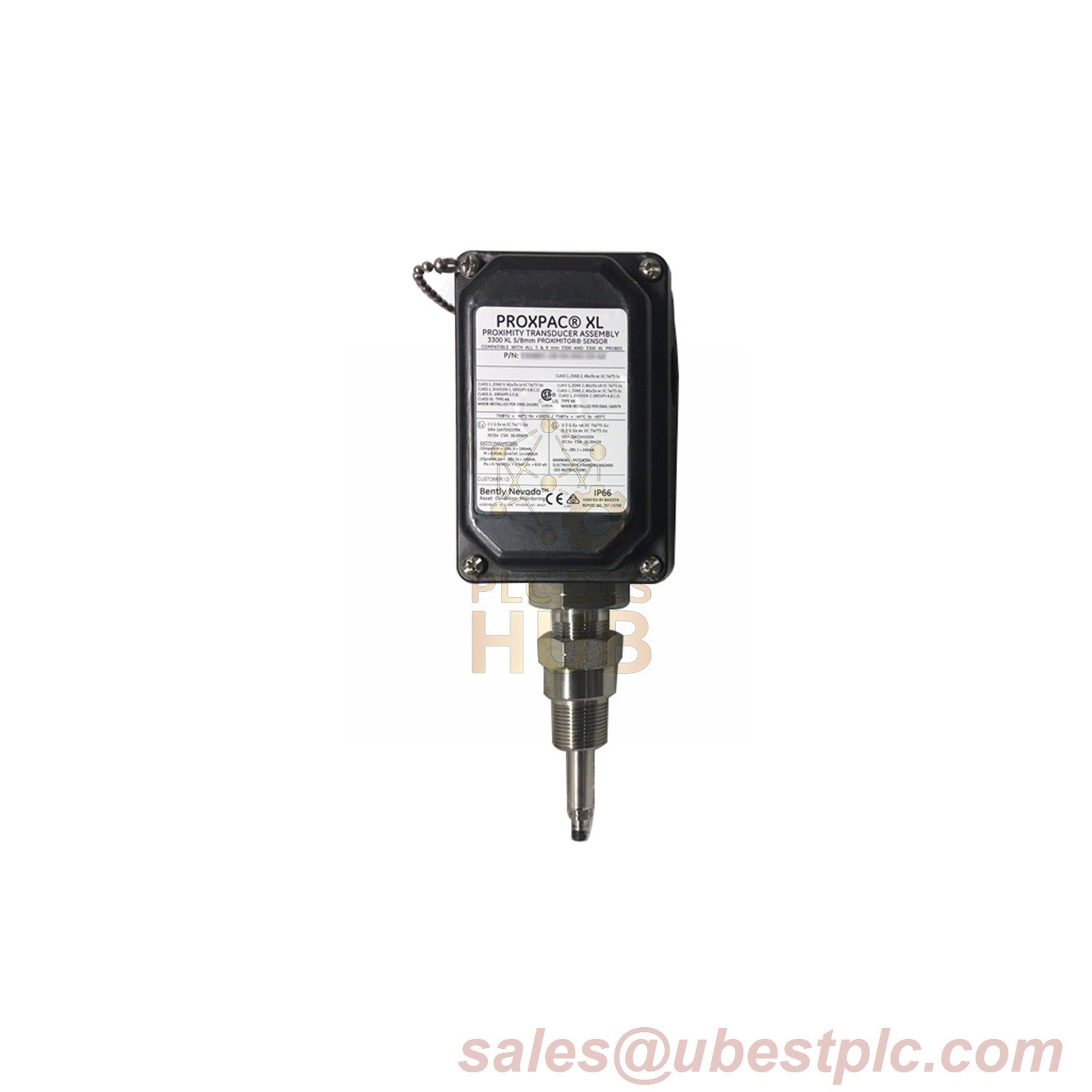

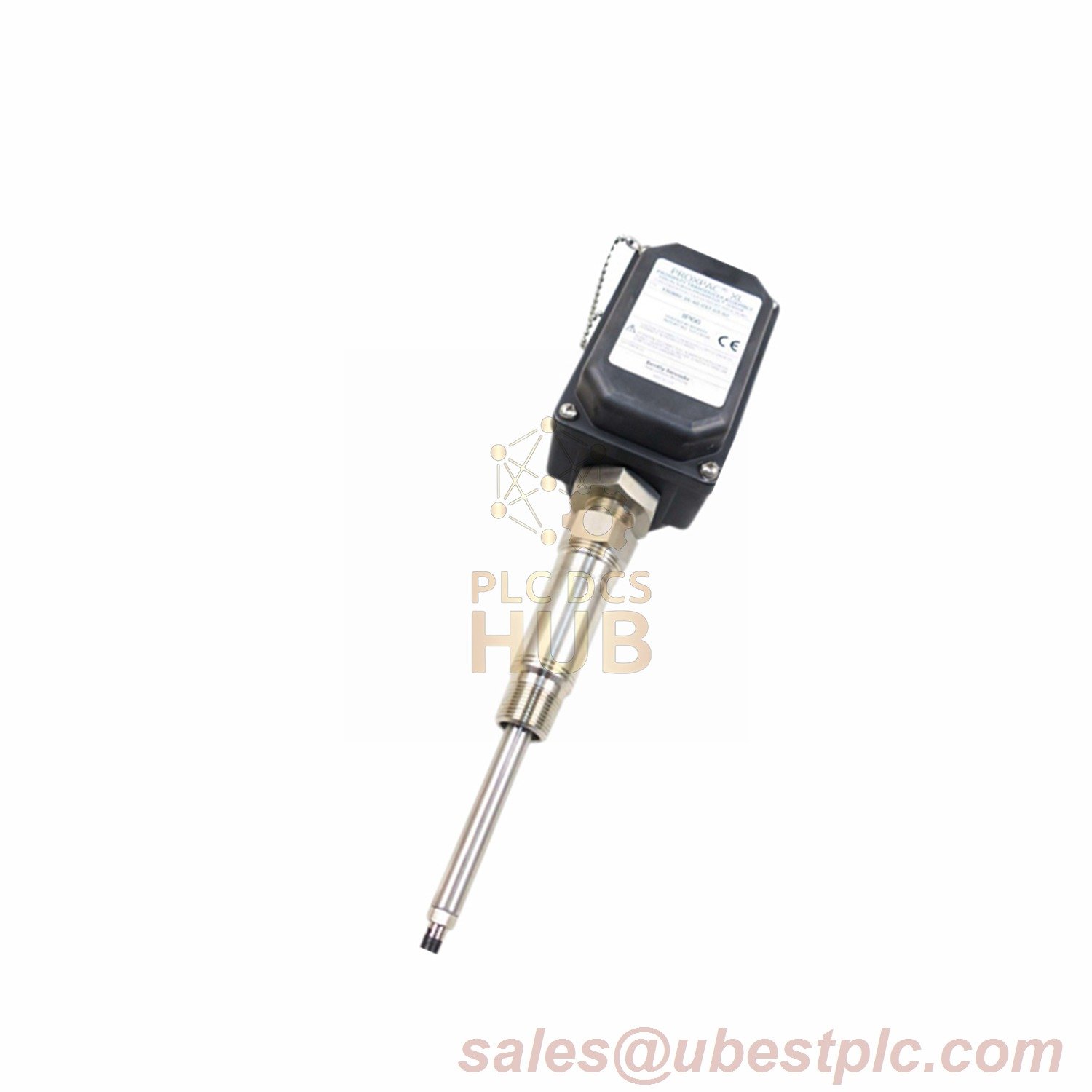

Bently Nevada PROXPAC XL Proximity Transducer
Optimized for space-sensitive industrial environments, the Bently Nevada 330881-28-05-080-00-02 offers an 80mm probe penetration depth and 50mm standoff adapter for precise alignment. Featuring IP66-rated housing, UV-resistant PPS construction, and CSA-certified impact resistance, this transducer delivers reliable performance in extreme conditions (-51°C to +177°C). Ideal for applications requiring compact design without compromising durability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330881-28-05-080-00-02 (Suffix: 28=8mm Probe, 05=50mm Adapter, 080=80mm Penetration, 00=No Fittings) |
| Electrical Output | 50Ω / 7.87 V/mm ±5% Incremental Scale Factor |
| Housing Material | Conductive PPS with Glass Reinforcement |
| Impact Resistance | 7 Joules (BASEEFA/CSA Certified) |
| Field Wiring | Shielded Triax Cable (305m Max) |
| Linear Accuracy | ±0.025mm (±1 mil) Deviation |
Key Features
- Short-profile 80mm probe for confined installations
- 3/4-14 NPT threading with stainless steel plugs/washers
- Withstands 912 N (205 lbf) axial mechanical load
- 0–10 kHz frequency response (±3 dB)
Contact: For COO or customization, email sales@ubestplc.com.
