Description
Description

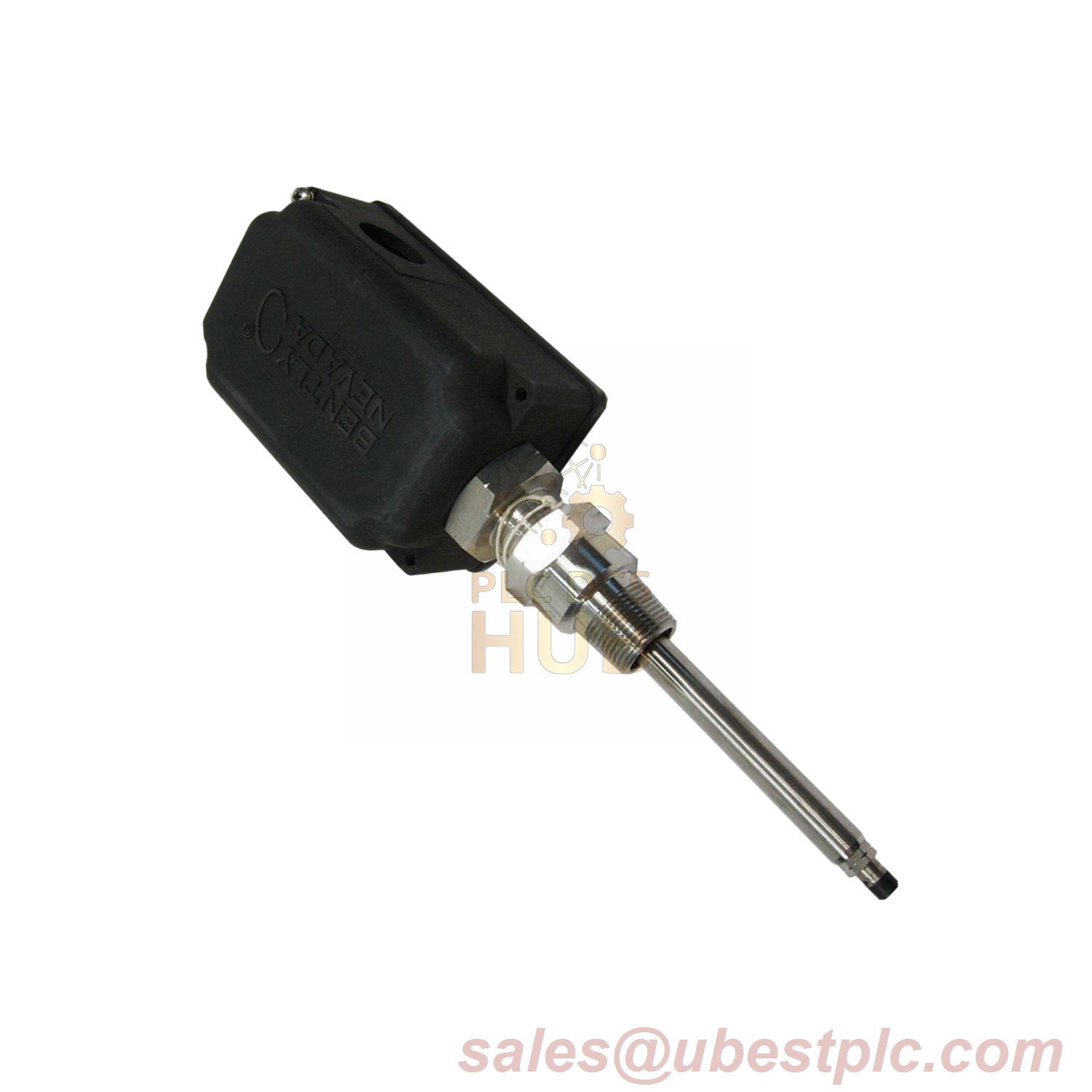

The 330880-28-40-058-01-02 features a 4-inch standoff adapter and 58 mm probe penetration, optimized for installations requiring extended clearance. Certified to IP66/BASEEFA standards, it operates in -51°C to +177°C extremes with multiple approvals. Includes 3/4-14 NPT fittings for industrial-grade connectivity. Made in USA, COO available.
- Extended Standoff: 101.6 mm (4 in) adapter for remote mounting scenarios.
- Precision Measurement: 58 mm penetration depth with ±0.025 mm linearity deviation.
- High Durability: 304 stainless steel housing and 330 N tensile strength.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330880-28-40-058-01-02 |
| Suffix Codes | 28: 8 mm probe (multi-approvals) 40: 4 in (101.6 mm) standoff 058: 58 mm penetration 01: 3/4-14 NPT fitting 02: 3/4-14 NPT thread |
| Electrical Output | 7.87 V/mm ±5% @ 1.27 mm gap |
| Cable Specs | 1m FEP triaxial (75Ω), 50Ω output |
| Torque Settings | 29.5 N·m (retaining nut), 39.3 N·m (sleeve) |
