Description

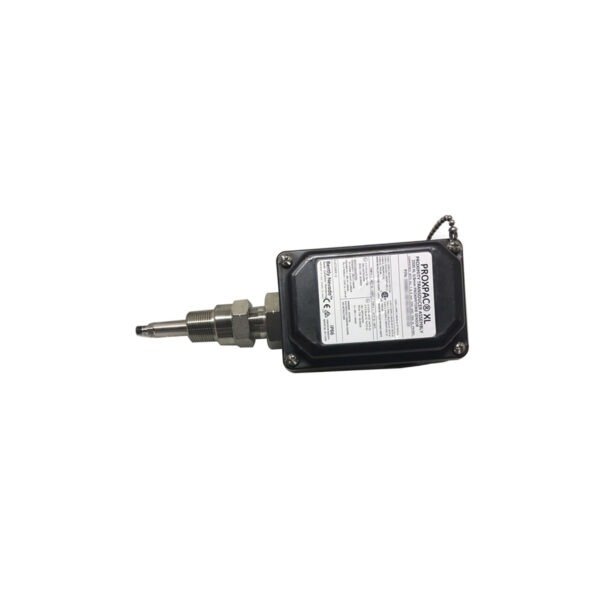

The 330881-28-00-135-03-00 is engineered for ultra-deep penetration monitoring with a 135 mm probe and M20 fittings, optimized for direct installations without outer sleeve assemblies. Certified to IP66/BASEEFA standards, it operates in extreme temperatures (-51°C to +177°C) and features UV-resistant PPS housing. Made in USA, COO available.
- Maximal Penetration: 135 mm probe depth for deep machinery inspection.
- Slim Profile: No standoff adapter or outer sleeve for compact spaces.
- Rugged Build: Withstands 7 J impacts and 912 N mechanical loads.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330881-28-00-135-03-00 |
| Suffix Codes | 28: 8 mm multi-certified probe 00: No standoff adapter 135: 135 mm penetration 03: M20 fitting + plugs 00: No outer sleeve |
| Electrical Specs | 75Ω FEP triaxial cable, 50Ω output, ±0.025 mm linearity |
| Torque Settings | 29.5 N·m (housing), 39.3 N·m (sleeve) |
| Load Capacity | 912 N (205 lbf) @ 38 mm offset |
Contact Information
For deep-penetration applications or COO requests:
Email: sales@ubestplc.com
