Description

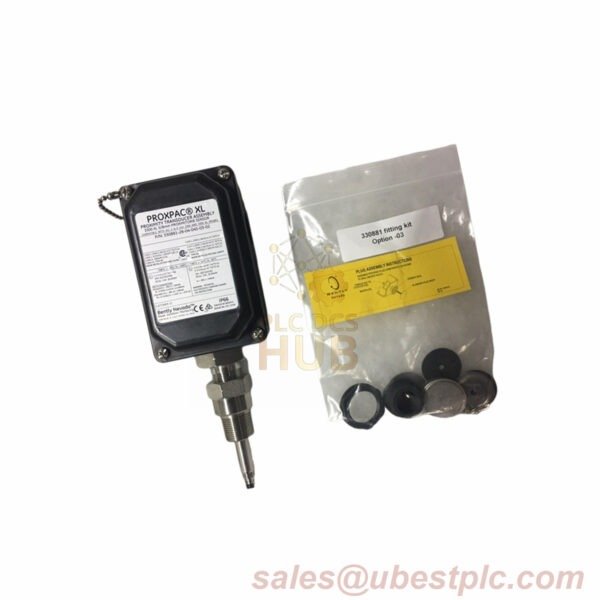

Bently Nevada PROXPAC XL Proximity Transducer
Designed for high-precision vibration monitoring, the Bently Nevada 330881-28-04-045-03-02 integrates a 45mm probe penetration and 40mm standoff adapter for optimal alignment. Featuring M20 threaded fittings, IP66-rated housing, and BASEEFA-certified impact resistance, this transducer operates reliably in extreme temperatures (-51°C to +177°C). Ideal for machinery requiring compact design and robust performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330881-28-04-045-03-02 (Suffix: 28=8mm Probe, 04=40mm Adapter, 045=45mm Penetration, 03=M20 Fittings) |
| Dielectric Strength | 1500 VAC for 1 Minute |
| Structural Integrity | 912 N (205 lbf) Axial Load Capacity |
| Cable Insulation | 75Ω Triaxial FEP (Fluoroethylene Propylene) |
| Compliance | BASEEFA T07/0709, CSA 7J Impact Certified |
| Vibration Damping | Extra Soft Cellular Silicone Isolation |
Key Features
- M20 Fittings + 40mm Standoff for flexible installation
- Gold-plated ClickLoc® connector with 330N tensile strength
- ±5% incremental scale factor across 0°C to +45°C
- 0–10 kHz frequency response (±3 dB @ 305m cable)
Contact: For COO or technical inquiries, email sales@ubestplc.com.
