Reverse Mount Probe 330106-05-30-90-12-00 – Bently Nevada

Description

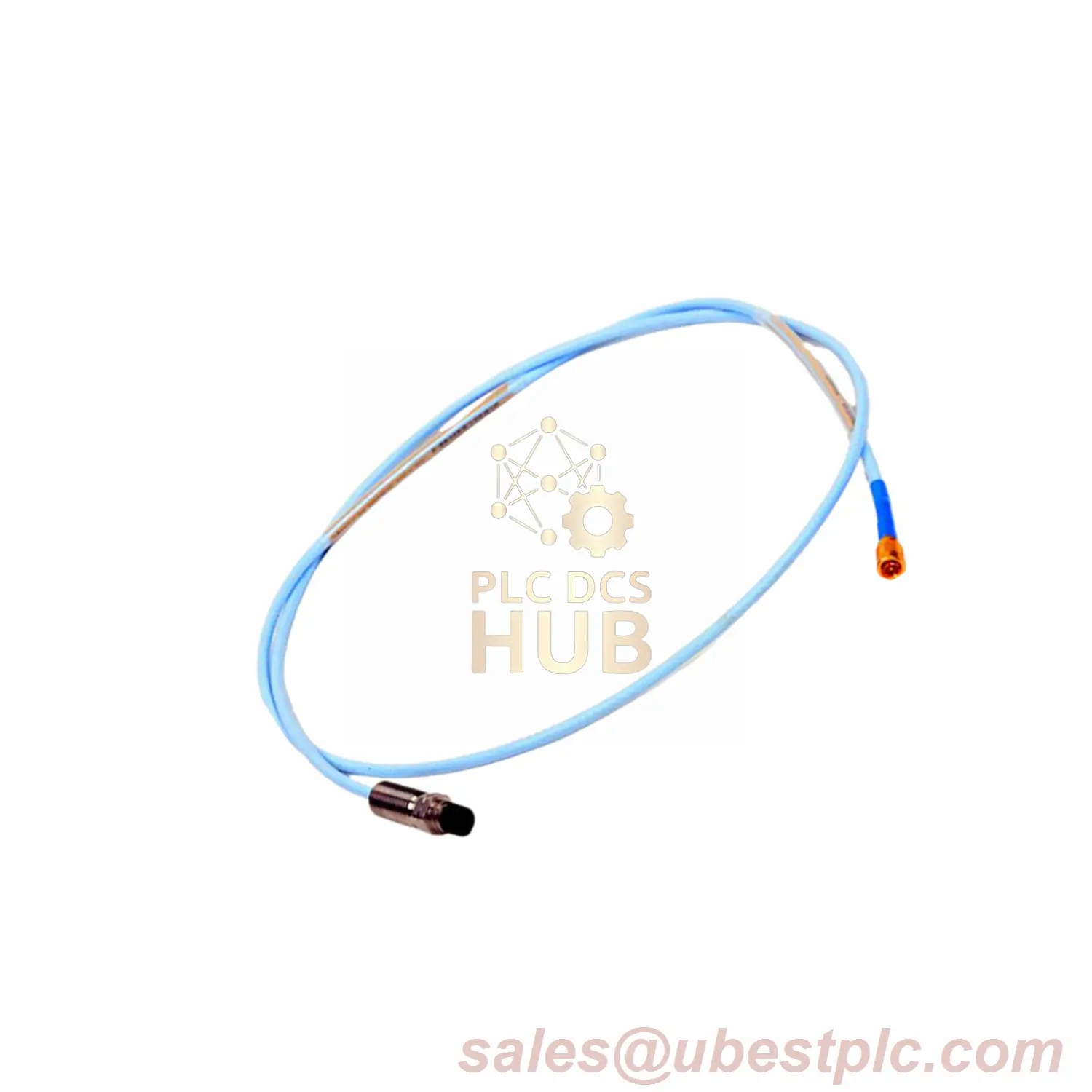

Bently Nevada 330106-05-30-90-12-00 – Long-Reach Fluid-Resistant Probe

Extended Cable Industrial Sensor

9-meter FluidLoc cable probe for wet environments. Reverse mount design. No certifications required. Made in USA.

Product Configuration Analysis

• Core Product: 330106 (8mm Reverse Mount Probe)
• Mounting: -05 (Reverse orientation)
• Cable Length: -90 (9.0 meters/29.5 ft)
• Connection: -12 (ClickLoc with FluidLoc)
• Certifications: -00 (None required)

Technical Specifications

• Electrical Properties
  • Resistance: 9.87Ω ±0.5 (center to outer)
  • Cable Type: 75Ω triaxial FluidLoc
  • Signal Loss: <0.5dB over 9m length
  • Connector: Gold-plated ClickLoc
• Environmental Ratings
  • Operating Range: -52°C to +177°C
  • Humidity Tolerance: Maintains accuracy at 93% RH
  • Seal: Viton O-ring pressure seal
  • Fluid Exposure: FluidLoc protection
• Mechanical Design
  • Case: 303/304 stainless steel
  • Tip: PPS thermoplastic
  • Thread: M10x1 metric
  • Max Engagement: 15mm
  • Cable Weight: 323 g/m
  • Tensile Strength: 330N

Installation Guide

• Thread: M10x1 with 15mm max engagement
• Torque Limit: 33.9 N•m maximum
• Cable Handling: Avoid sharp bends
• Seal Protection: Keep above -34°C

Shipping & Warranty

• 12-month product warranty
• Global delivery: FedEx, UPS, DHL
• Standard shipping (no hazardous fees)
• Tracking provided
