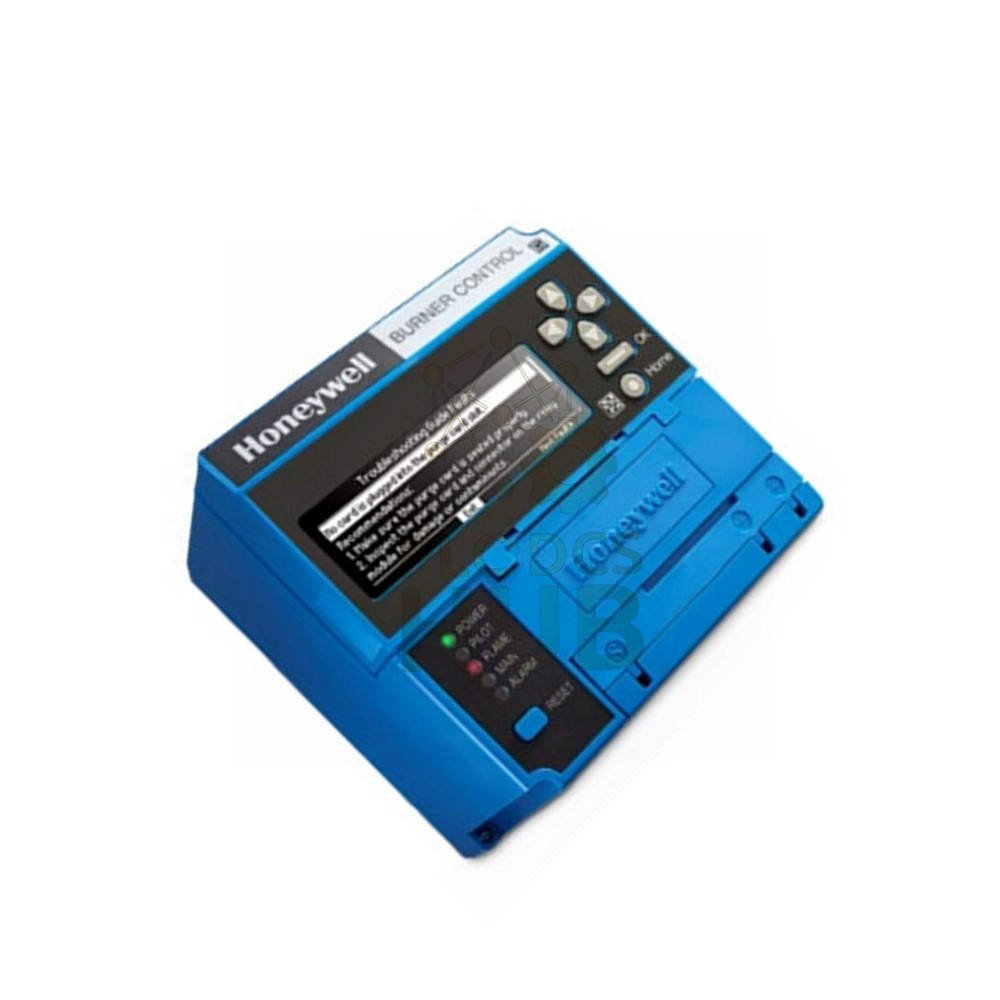

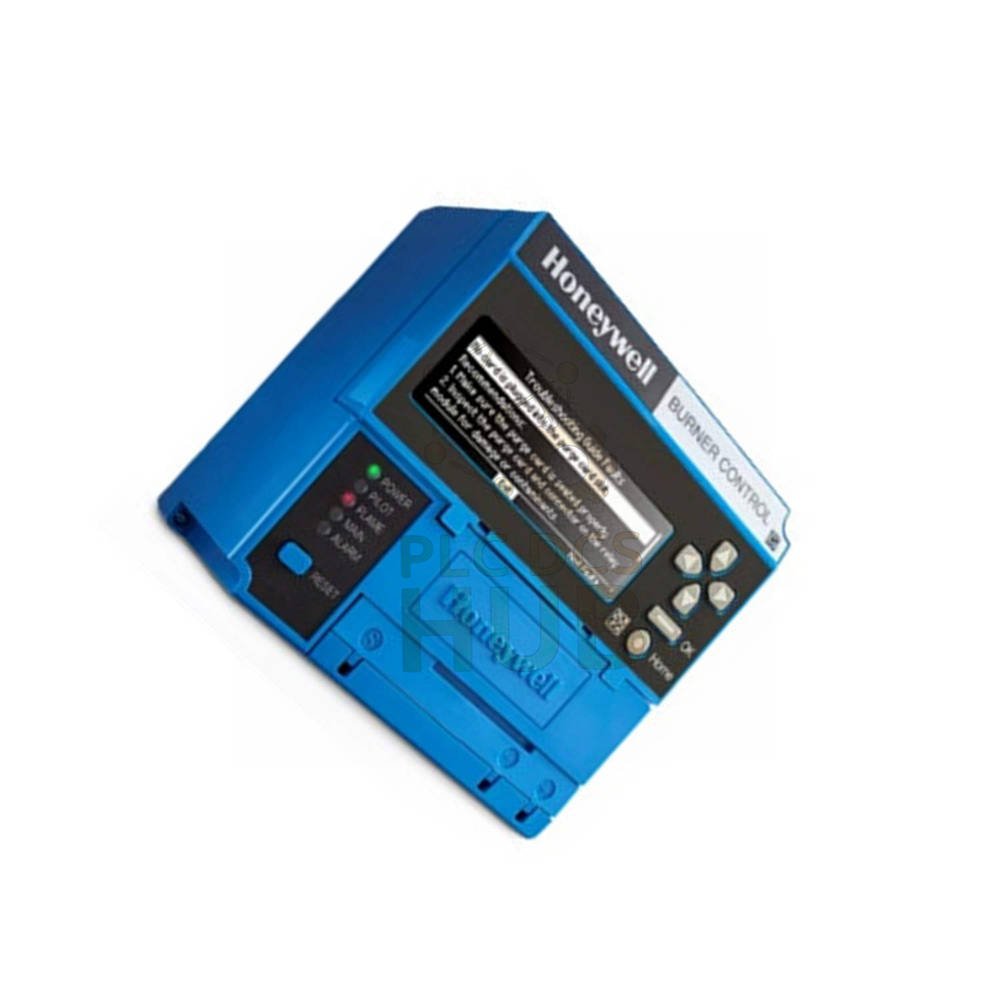

RM7800G1018 Honeywell RM7800 Series Programming Burner Control
RM7800G1018 is a Honeywell burner control module used in industrial combustion systems.
It manages burner start, flame supervision, and safety shutdown. The module works with
universal subbases and flame amplifiers. It offers stable control, fast response, and
strong protection functions for boilers and industrial burners.
Main Product Highlights
- Industrial burner programming control module
- Reliable flame monitoring and safety lockout
- Stable operation under wide temperature range
- Designed for automated burner management
- Works with Honeywell RM7800 flame safeguard systems
- Compact structure for control panel installation
Key Technical Specifications
- Manufacturer: Honeywell
- Model: RM7800G1018
- Series: RM7800 burner control series
- Power supply: 120 Vac
- Voltage tolerance: +10% / -15%
- Operating frequency: 50 Hz or 60 Hz
- Operating temperature: −40°C to +60°C
- Safety lockout protection included
- Built-in early spark termination function
Installation & Physical Details
- Typical panel mounting design
- Compatible subbase: Q7800A and Q7800B
- Approximate dimensions with Q7800A: 127 × 127 × 133 mm
- Depth with Q7800B subbase: about 155 mm
- Weight: about 1 lb 10 oz
- Designed for industrial burner control cabinets
Control Timing & Operation
- Pilot flame establishing time: 4 s or 10 s selectable
- Main flame establishing time: 10 s or 15 s
- Post purge time: 15 seconds
- Early spark cutoff: 5 seconds
- Air flow check: selectable by user
- Supports interrupted pilot operation
Compatible System Components
- Universal wiring subbases: Q7800A or Q7800B
- Flame amplifiers: R7847, R7848, R7849
- Additional amplifier options: R7851, R7852
- Compatible with R7861 and R7886 amplifiers
- Requires ST7800A purge timer card
- Supports integrated burner control systems
Operational Advantages
- Improves burner ignition safety
- Helps protect combustion equipment
- Reliable flame detection response
- Stable control in harsh environments
- Simple integration with Honeywell flame safeguard modules
- Long service life in industrial applications
Shipping & Warranty
- 12-month warranty
- Carefully packed for export delivery
- Worldwide express shipping available
- Courier options: FedEx, UPS, DHL
Professional FAQ
- What systems typically use this burner controller?It is used in industrial burners, boilers, and combustion control systems that require safe flame monitoring.
- How do I know if this model fits my burner system?Check if your system uses Honeywell RM7800 series controllers and compatible Q7800 wiring bases.
- Does this controller require extra modules?Yes. It normally works with flame signal amplifiers and a purge timer card.
- What is the benefit of programmable burner control?Programmable timing improves ignition safety and protects equipment during start and shutdown.
- What should I check before replacing a burner control module?Confirm power voltage, base compatibility, and the correct flame amplifier model.
