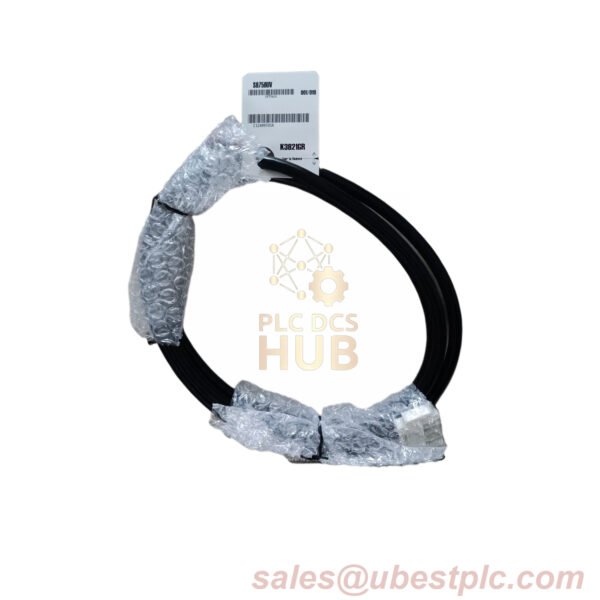

The Yokogawa S9757UV Power Supply Cable is a critical component for energizing Yokogawa’s AEP7D-2 Primary Power Supply Bus Units in industrial automation systems. Designed for 220 V AC applications, this 2-meter cable features a pre-terminated end with color-coded pins and one unterminated end for custom field connections. Engineered to meet rigorous safety standards, it ensures reliable power distribution in high-voltage control environments.
Technical Specifications
- Model: S9757UV
- Compatibility: AEP7D-2 Primary Power Supply Bus Units
- Electrical:
- Voltage Rating: 220 V AC (50/60 Hz)
- Conductors: 3-core, 14 AWG copper
- Insulation: Heat-resistant PVC (600V grade)
- Mechanical:
- Cable Length: 2 m (6.56 ft)
- Termination: One end pre-terminated (3-pin plug)
- Uterminated End: Strip-and-clamp design for field wiring
- Pin Configuration (Pre-Terminated End):
- Black: Pin 4 (Phase)
- White: Pin 3 (Neutral)
- Green: Pin 1 (Ground)
- Environmental:
- Temperature Range: -25°C to +75°C (-13°F to +167°F)
- Certification: IEC 60204-1 compliant
Key Applications
- Primary power feed to AEP7D-2 bus units in process control cabinets
- Retrofitting legacy Yokogawa power distribution systems
- Custom three-phase equipment integrations requiring unterminated wiring
