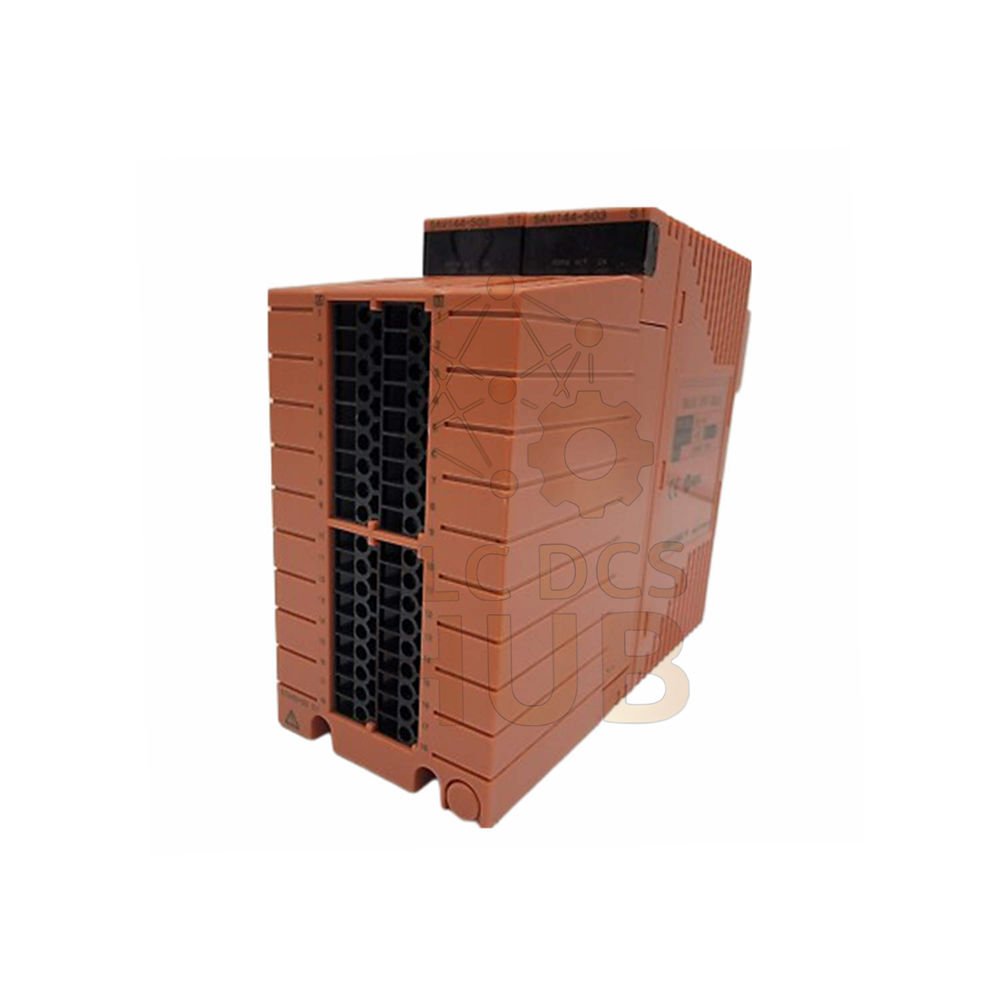

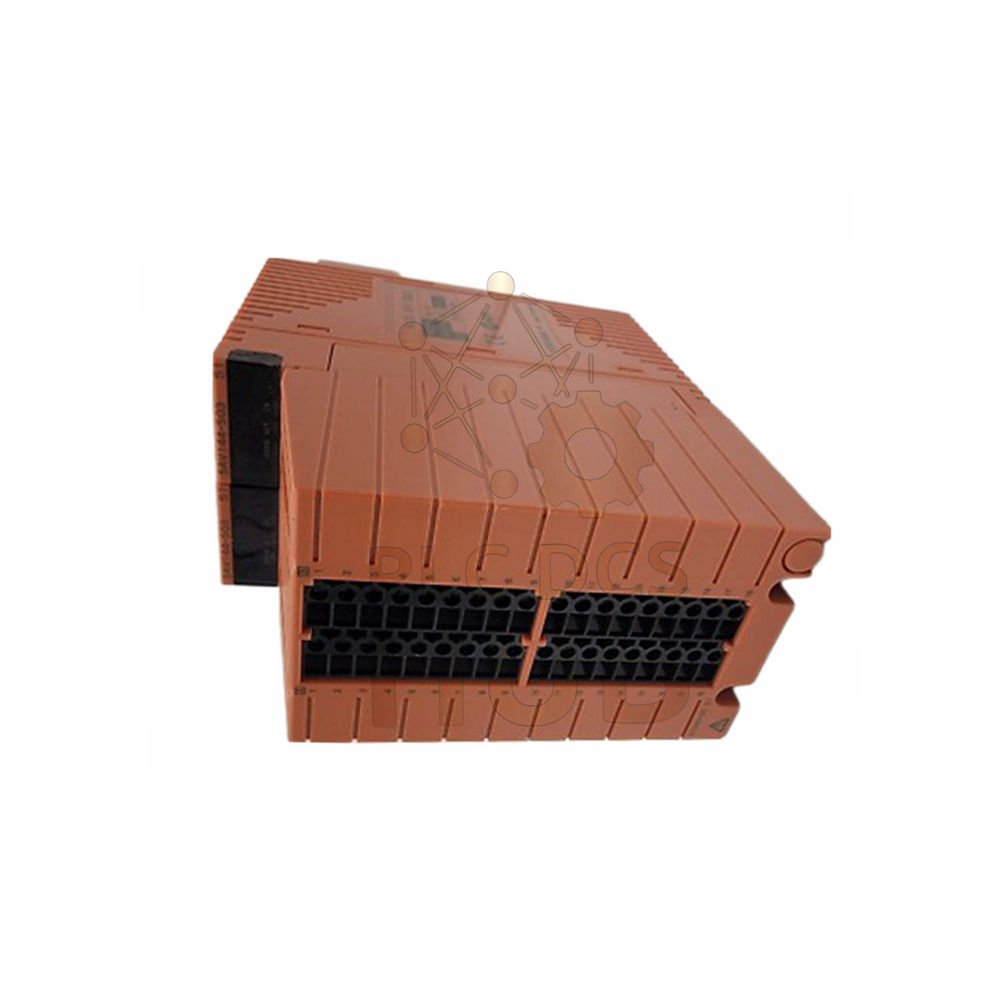

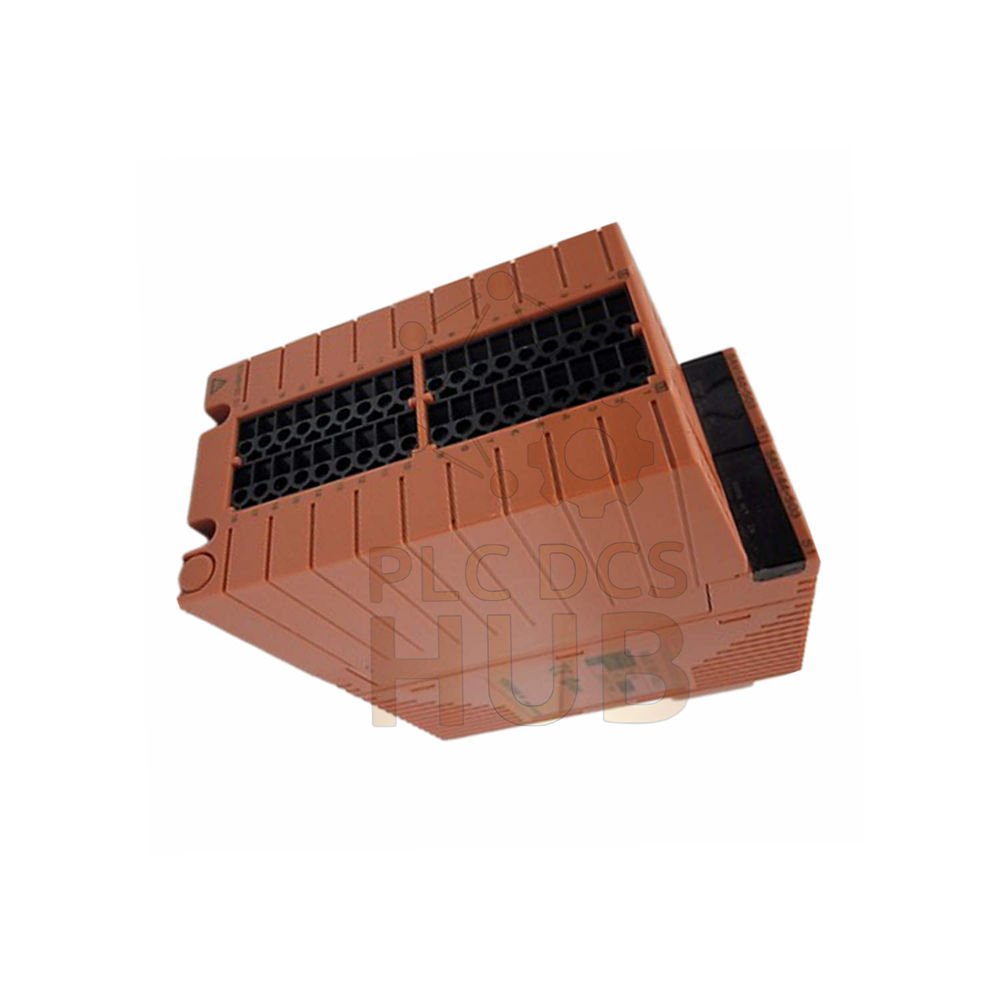

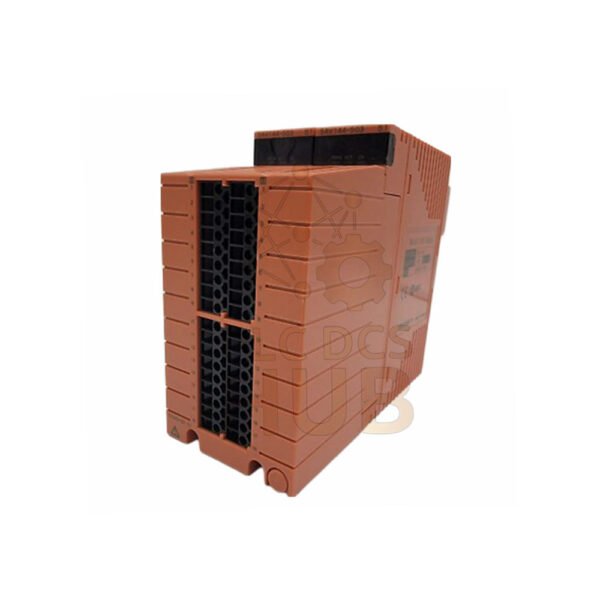

SAV144-S03 Yokogawa CENTUM VP 1-10V Voltage Input Module

Description

SAV144-S03 Yokogawa Voltage Input Module Overview

• The Yokogawa SAV144-S03 is a high-quality analog input unit.
• It works with the CENTUM VP control system.
• This module changes voltage signals into digital data.
• It keeps your factory processes running smoothly and safely.
• Engineers choose the SAV144-S03 for its reliable signal tracking.

Technical Specifications

• Brand: Yokogawa
• Model: SAV144-S03
• Input Type: 1 to 5 V or 1 to 10 V DC
• Accuracy: ±4 mV (1-5V) or ±9 mV (1-10V)
• Safety Isolation: 1.5 kV AC protection against power surges.
• Max Input: ±30 V DC (safe limit)
• Power Use: 300 mA (5V) and 140 mA (24V)
• Weight: Only 0.24 kg to 0.29 kg
• Noise Control: Strong anti-interference for clean signals.

Installation and Compatibility

• System Compatibility: Fits perfectly in Yokogawa CENTUM series.
• Connection Methods: Supports Pressure Clamps and MIL Cables.
• Easy Setup: Fast plug-in design for quick installation.
• Maintenance: Replace the module without stopping the whole system.

Shipping and Warranty

• Warranty: Full 12-month quality guarantee.
• Packing List: One new SAV144-S03 in original box.
• Express Shipping: FedEx, UPS, or DHL available.

Typical Application Scenes

• Checking oil and gas pressure levels.
• Measuring flow in chemical plants.
• Monitoring power in electricity stations.

FAQ

• • What cables should I use?
  • Use the KS1 cable for the best signal connection.

• • Can this handle 10V signals?
  • Yes, it handles both 1-5V and 1-10V ranges.

• How do I know if it works?
• Check the LED lights on the front of the module.

Selection Advice

• Always verify your controller model before buying.
• Check if you need the S03 version for specific voltage needs.
