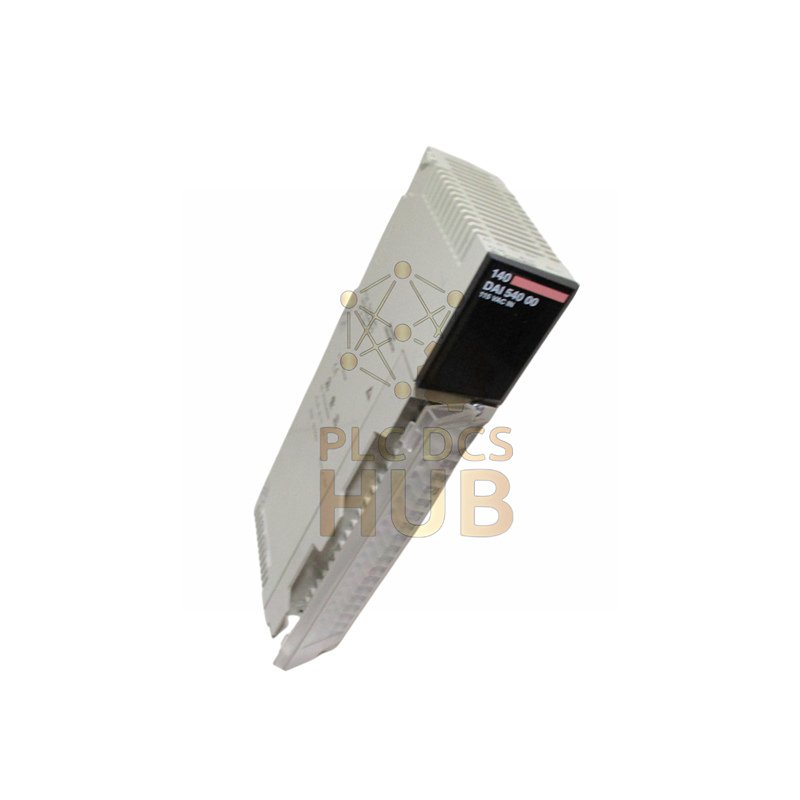

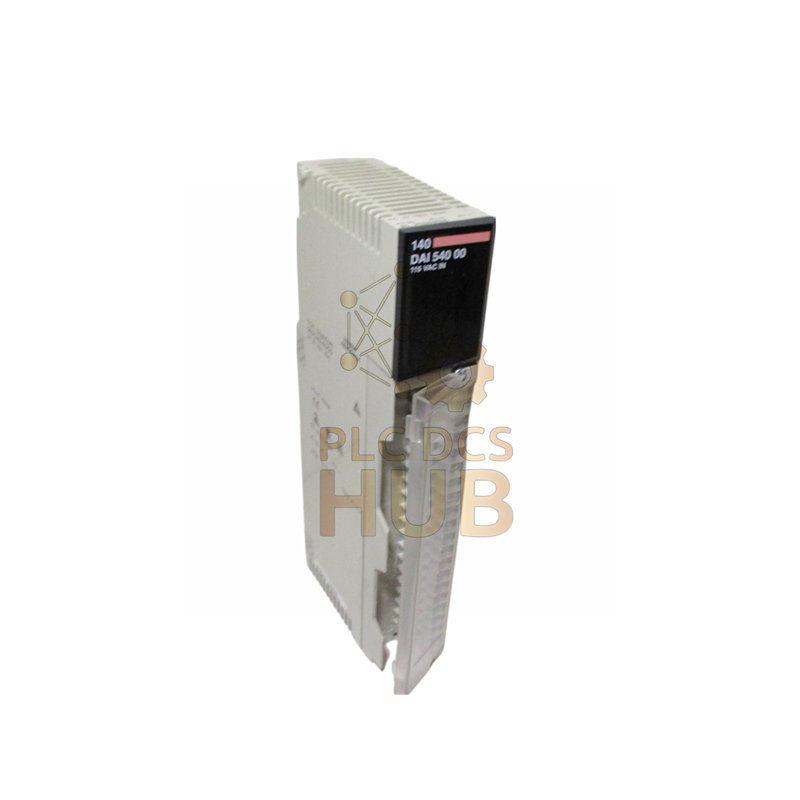

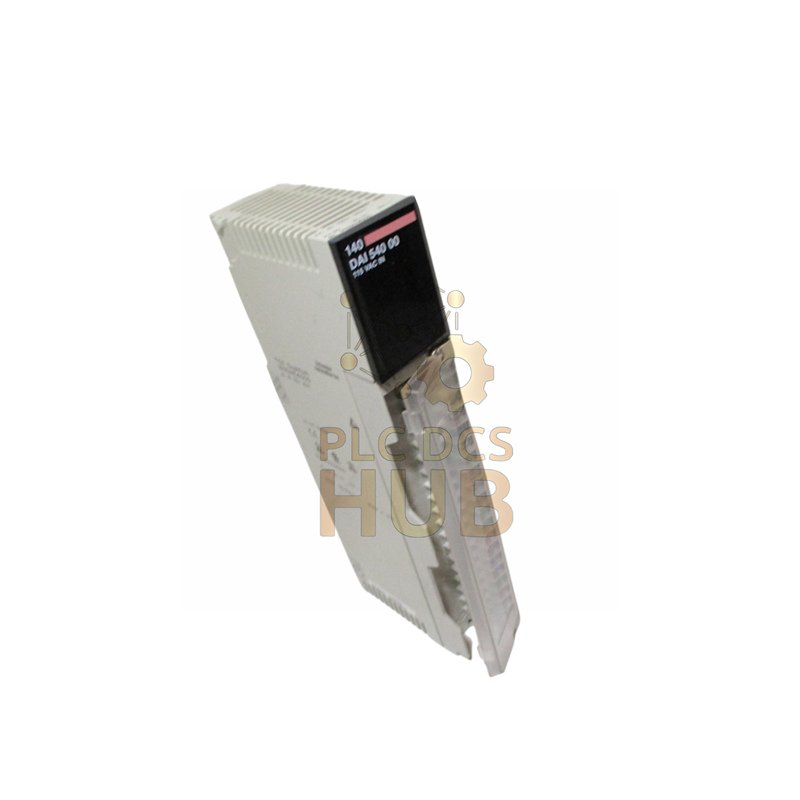

Schneider Electric 140DAI54000: 115V AC Input Module
Connect high-voltage sensors directly. The Schneider Electric 140DAI54000 handles 115V AC inputs. It has 16 channels in one module. Perfect for industrial power monitoring.
Key Features
- 115V AC Inputs: Works with high voltage signals
- 16 Channels: Monitor multiple devices
- LED Indicators: See status at a glance
- Safe Isolation: 1780V protection
- Wide Frequency: 47-63 Hz operation
Technical Specifications
Brand & Model: Schneider Electric 140DAI54000
Series: Modicon Quantum
Type: AC Input Module
Channels: 16 inputs
Voltage: 115V AC
Frequency: 47-63 Hz
On Voltage: 79-132V AC
Off Voltage: 0-20V AC
Response Time: 0.75-12.3 ms
Isolation: 1780V between channels
Power Use: 5.5W maximum
Software: Concept, ProWORX, Unity Pro
Weight: 0.31 kg
Installation
Mount in Quantum rack. Connect 115V AC signals. Each channel has its own LED. Uses only 1 input word. Need help? Support, Inquiry, Contact: +86 158 8020 0923.
FAQ
Q1: What voltage does it accept?
A: 115V AC input signals.
Q2: How many inputs?
A: 16 separate input channels.
Q3: What is the response time?
A: Between 0.75 and 12.3 milliseconds.
Q4: Is it safe for high voltage?
A: Yes, with 1780V isolation protection.
Q5: What software is needed?
A: Concept, ProWORX, or Unity Pro.
Warranty & Shipping
12-month warranty. Ships via FedEx, UPS, DHL.
Download Manual
Get complete details:
- Wiring diagrams
- Safety instructions
- Programming guide
- Technical specs
Download 140DAI54000 manual here
