Schneider 140EHC10500 | 100kHz High-Speed Counter Module – Modicon Quantum

Description

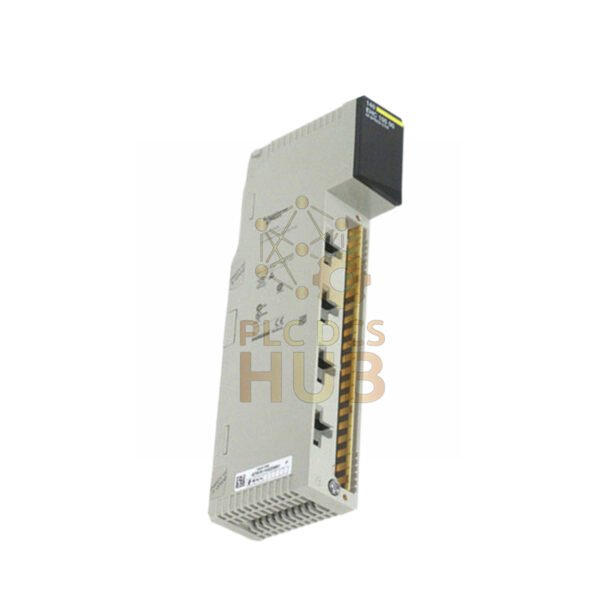

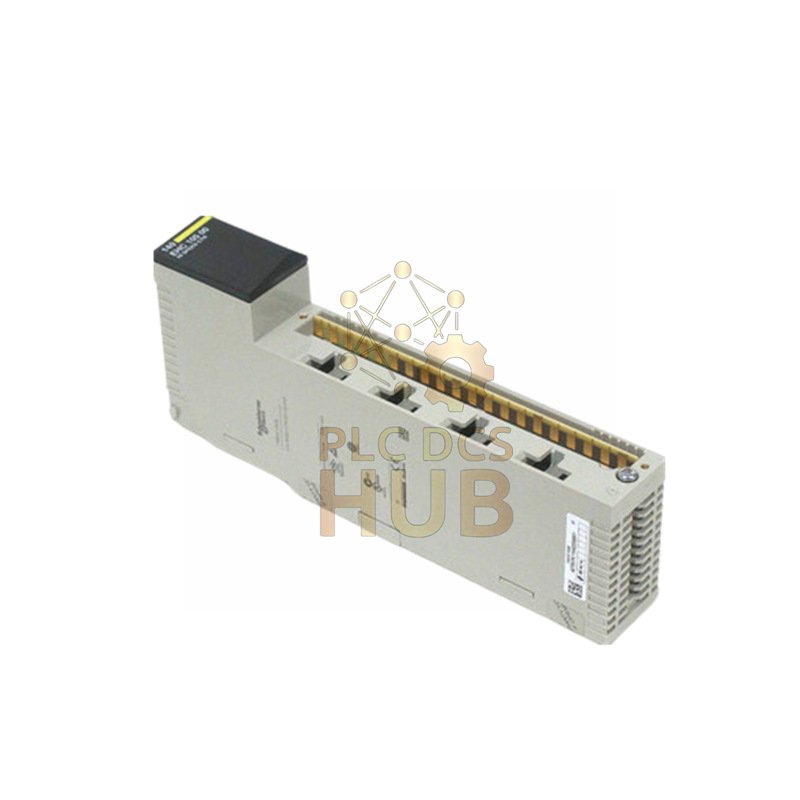

Schneider Electric 140EHC10500: High-Speed Counter for Precision Control

Measure fast-moving processes with the Schneider Electric 140EHC10500 high-speed counter module. Designed for Modicon Quantum systems, this module handles 5 channels at 100 kHz with incredible accuracy. Perfect for applications requiring precise counting and measurement.

Key Advantages

• Ultra-Fast Counting: 100,000 Hz maximum frequency
• Multi-Channel Design: 5 independent counting channels
• Integrated I/O: 8 inputs and 8 outputs in one module
• 32-Bit Precision: Large counting range up to 2,147,483,647
• Robust Protection: Short-circuit and overload protection

Technical Specifications

• Brand & Model: Schneider Electric 140EHC10500
• Platform: Modicon Quantum
• Module Type: High-Speed Counter
• Channels: 5 counting channels
• Max Frequency: 100,000 Hz per channel
• Input Voltage: 30V DC maximum
• Input Current: 7 mA counting, 5 mA discrete
• Output Type: FET transistor outputs
• Output Current: 0.21 A per point
• Counting Range: 32-bit (2,147,483,647)
• Addressing: 12 input + 12 output words
• Power Supply: 19.2-30V DC external
• Isolation: 500Vrms channel to bus
• Operating Temp: 0°C to 60°C

Application & Setup

The 140EHC10500 is ideal for rotary encoders, flow meters, and production counting. Each channel has status LEDs for easy monitoring. The module works in local, distributed, or remote racks. Need configuration help? Support, Inquiry, Contact: +86 158 8020 0923.

Expert FAQs

• Q1: What is the maximum counting speed?
  A: Each channel can count up to 100,000 pulses per second.
• Q2: How many I/O points does it have?
  A: It includes 8 digital inputs and 8 transistor outputs.
• Q3: What is the counting range?
  A: 32-bit counting allows values up to 2,147,483,647.
• Q4: What power supply does it need?
  A: Requires 19.2-30V DC external power (up to 1140 mA).
• Q5: Can it handle different signal types?
  A: Yes, it works with various incremental encoder signals.

Quality Guarantee

This module comes with a 12-month warranty. We ship worldwide via FedEx, UPS, and DHL for fast delivery.

Download Complete Documentation

Get all technical details:

• Full installation instructions
• Wiring diagrams and examples
• Programming guidelines
• Application notes

Download the 140EHC10500 technical manual here
