Schneider Electric 140DDO15310 | Modicon Quantum 32-Point TTL Output Module

Description

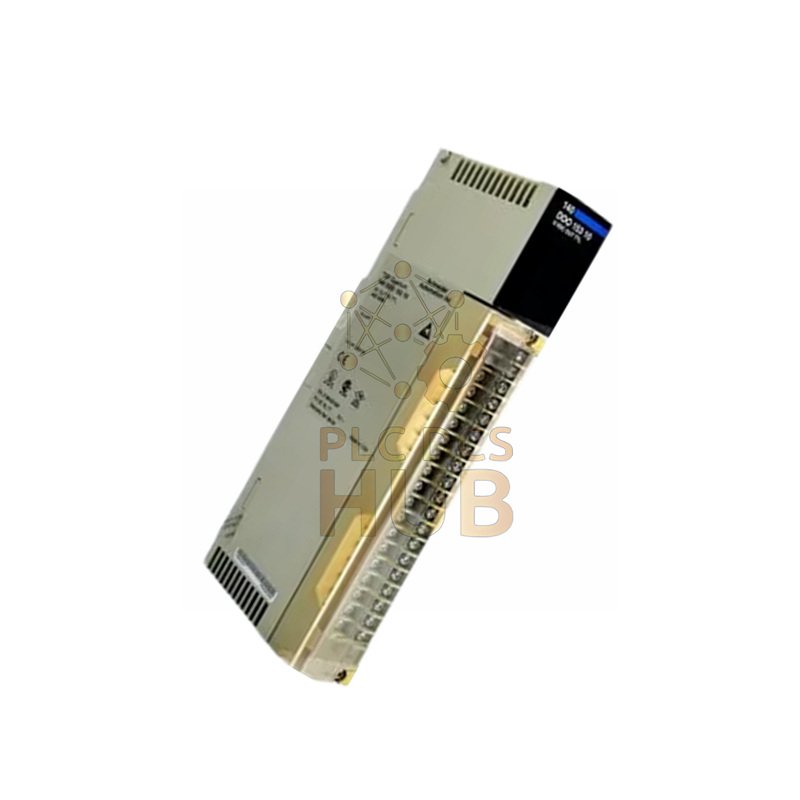

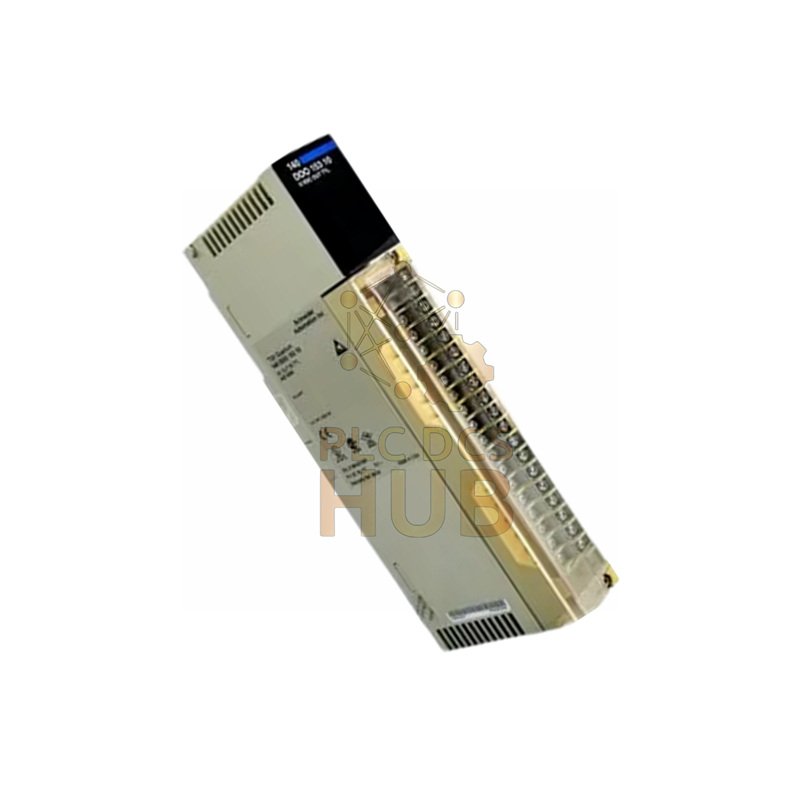

Schneider Electric 140DDO15310: Compact 32-Point TTL Output Module

Get precise digital control with the Schneider Electric 140DDO15310. This module is a key part of the powerful Modicon Quantum family. It provides 32 TTL outputs for fast and reliable signal switching. Perfect for applications needing high-speed 5V DC control.

Detailed Technical Specifications

Brand & Model: Schneider Electric 140DDO15310
Product Series: Modicon Quantum Automation Platform
Module Function: Discrete TTL Output Module
Number of Outputs: 32 Points
Output Type: Positive (Sink)
Rated Voltage: 5 V DC (4 to 5.5 V DC range)
Max Current per Point: 75 mA
Max Current per Group: 600 mA (4 groups of 8)
Total Module Current: 2.4 A
Speed: 250 µs ON, 250 µs OFF
Power Use: 4 W
Operating Temperature: 0°C to 60°C
Isolation: 500 Vrms between groups

Installation & Use

This 140DDO15310 module plugs directly into a Modicon Quantum rack. It uses 2 words of output addressing in your PLC program. Remember, it needs a clean 5V DC power supply. For any setup questions, Support, Inquiry, Contact: +86 158 8020 0923.

FAQs

• Q1: What does TTL output mean?
  A: TTL (Transistor-Transistor Logic) means it switches a 5V signal, which is standard for digital electronics.
• Q2: How many output groups does it have?
  A: It has 4 separate groups. Each group has 8 outputs and its own protection.
• Q3: What is the maximum load current?
  A: You can use up to 75 mA for each output point safely.
• Q4: Is this module fast enough for high-speed applications?
  A: Yes, its 250 µs response time is very fast for most control tasks.
• Q5: How is the module protected?
  A: It has internal fuses and protection against voltage spikes.

Quality Promise & Shipping

We offer a 12-month warranty on this product. Your order will be shipped quickly and securely via FedEx, UPS, or DHL.

Get the Full Manual

For complete wiring diagrams and technical details:

• Learn about correct installation.
• Understand all specifications.
• Find troubleshooting tips.

Download the official 140DDO15310 manual here.
