Description
Modicon X80 Redundant Power Supply: Reliable Backup Power

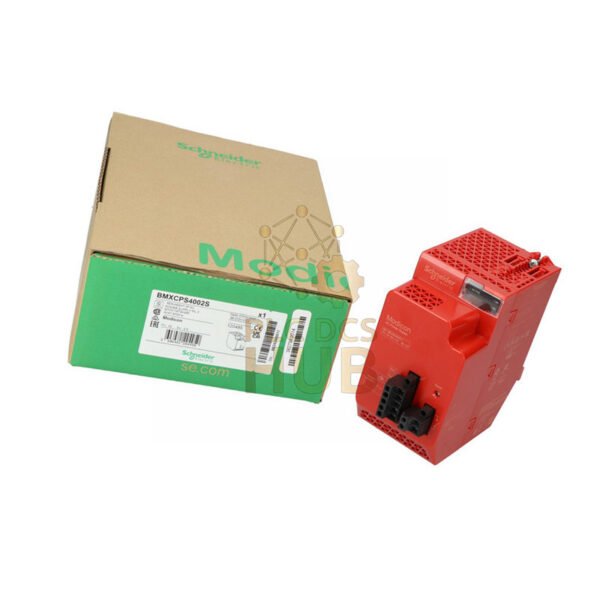

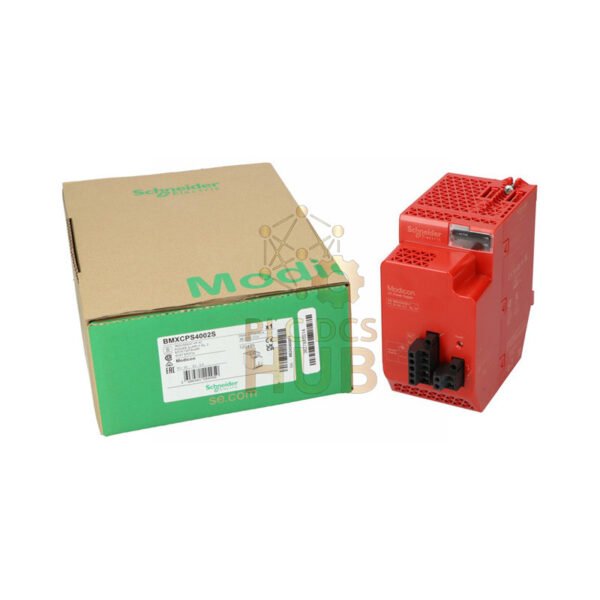

The BMXCPS4002S power supply keeps your Modicon X80 system running without interruption. This redundant unit provides backup power for critical operations. Learn how to install your BMXCPS4002S by getting our detailed guide.
Download Complete Instruction Manual Here
Key Features and Benefits
- Brand & Model: Schneider Electric BMXCPS4002S
- Product Series: Modicon X80 Platform
- Input Voltage: 100-240V AC wide range
- Redundancy: Built-in backup power system
- Output Power: 15W at 3.3V, 40W at 24V DC
- Compatibility: Works with all X80 backplanes
- Diagnostics: Network monitoring available
Technical Specifications
- Voltage Range: 85-264V AC input
- Frequency: 50/60 Hz (47-63 Hz range)
- Input Current: 0.55A at 230V, 1.1A at 115V
- Output Current: 4.5A at 3.3V, 1.67A at 24V
- Power Rating: 0.13 kVA apparent power
- MTBF: 792,000 hours reliability
- Weight: 1.12 lb (0.51 kg)
Environmental Ratings
- Operating Temp: -13°F to 140°F (-25°C to 60°C)
- Storage Temp: -40°F to 185°F (-40°C to 85°C)
- Humidity: 5% to 95% non-condensing
- Vibration: 3 gn resistance
- Shock: 15 gn resistance
- Altitude: 0-6561 feet (0-2000 meters)
- IP Rating: IP20 protection
Packaging and Delivery
- Unit Package: 1 power supply per box
- Box Size: 9.84 x 7.09 x 3.54 inches
- Box Weight: 21.8 ounces (618 grams)
- Case Package: 6 units per shipping case
- Case Size: 15.75 x 11.81 x 11.81 inches
- Case Weight: 9.914 pounds (4.497 kg)
- Shipping: FedEx, UPS, DHL available
- Warranty: 12-month coverage included
Professional FAQ Section
What input voltage does this power supply accept?
It works with 100-240V AC, with a wider operating range of 85-264V AC for flexibility.
How does the redundancy feature work?
The module provides backup power and includes redundancy testing to ensure continuous operation.
What protection features are included?
It has overload, short-circuit, and overvoltage protection on secondary circuits for safety.
Can it operate in harsh environments?
Yes, it works from -25°C to 60°C and is ATEX certified for hazardous locations.
What diagnostic information is available?
You can monitor temperature, remaining lifetime, and uptime duration via network diagnostics.
