Description
Modicon M340 Processor: Powerful Automation Control
The BMXP3420102CL processor runs Modicon M340 systems. It controls up to 1024 digital points. It needs a memory card to work. Get the full guide for your BMXP3420102CL unit now.
Key Features & Specifications
- Brand: Schneider Electric
- Model: BMXP3420102CL
- I/O Capacity: 1024 digital / 256 analog points
- Memory: 4096 kB total RAM for programs and data
- Speed: 0.12 µs for basic logic commands
- Task Control: 64 event tasks plus master and fast tasks
Communication & Connectivity
- Serial Ports: RS232C and RS485 for classic devices
- USB Port: 12 Mbit/s for fast programming
- CANopen: Manages 63 devices on one network
- Expansion: Fits 2 Ethernet and 4 AS-i modules
- Network Range: Up to 1000 meters with isolated links
Physical Details & Operation
- Power Use: 90 mA at 24V DC from the rack
- Temp Range: 0°C to 60°C for safe operation
- Humidity: 10% to 95% with no water drops
- Enclosure: IP20 rating for indoor use
- LED Lights: 7 indicators for status and errors
- Weight: 0.21 kg light and compact design

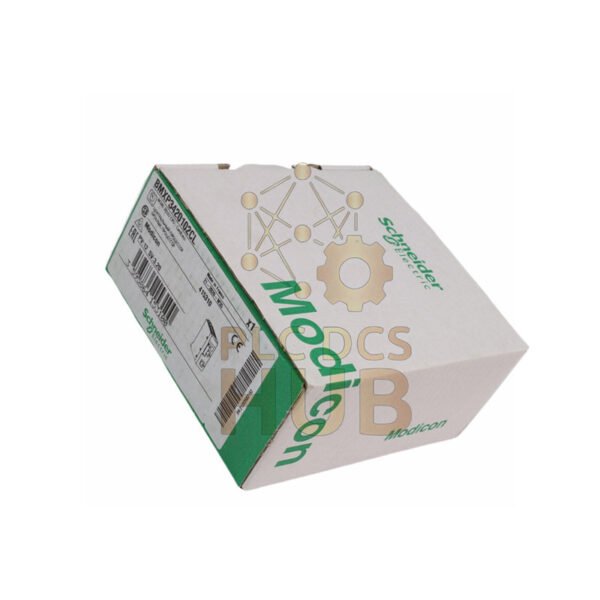

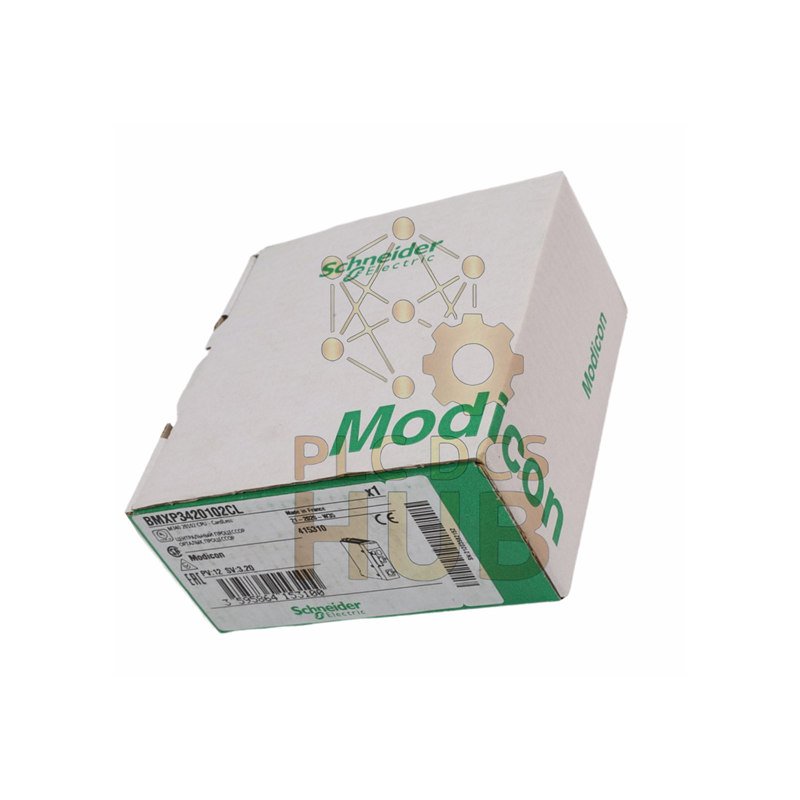

Packaging & Delivery
- Single Pack: 1 module per box
- Box Size: 12.0 x 11.0 x 5.5 cm small package
- Box Weight: 252 grams easy to carry
- Bulk Pack: 15 modules per case
- Case Size: 40.0 x 30.0 x 15.0 cm
- Case Weight: 4.581 kg total
- Shipping: We use FedEx, UPS, and DHL
- Warranty: 12 months full cover
Common Questions
- Does it include a memory card?
- No, you must buy one separately.
- How many devices connect to CANopen?
- Up to 63 devices on the network.
- What is the maximum I/O count?
- 1024 digital points in full setup.
- Can it work in hot places?
- Yes, up to 60°C ambient temperature.
- How fast is the processor?
- It does 8,100 Boolean commands per ms.
