Description

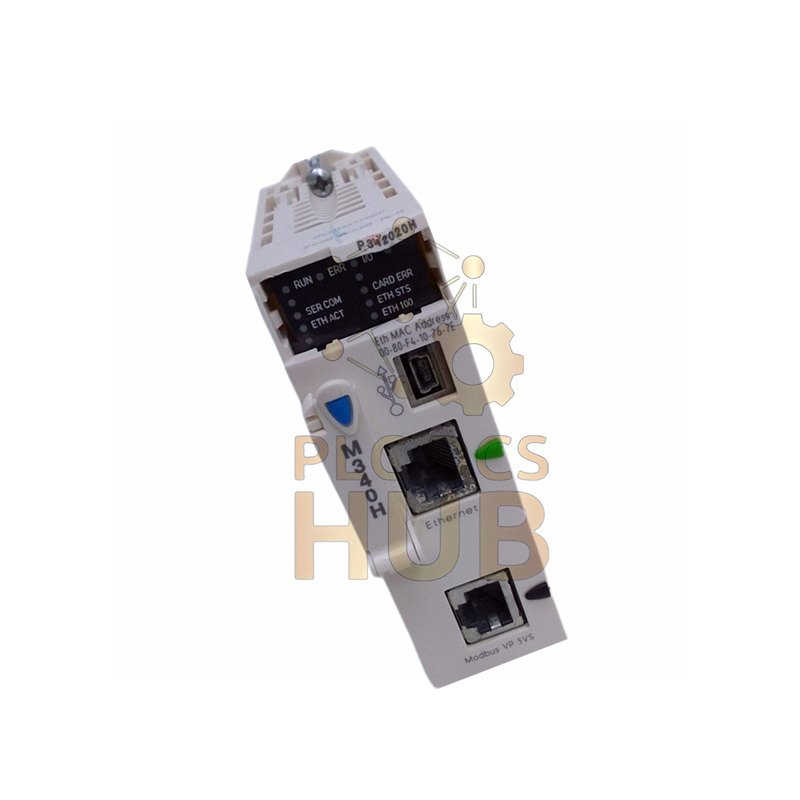

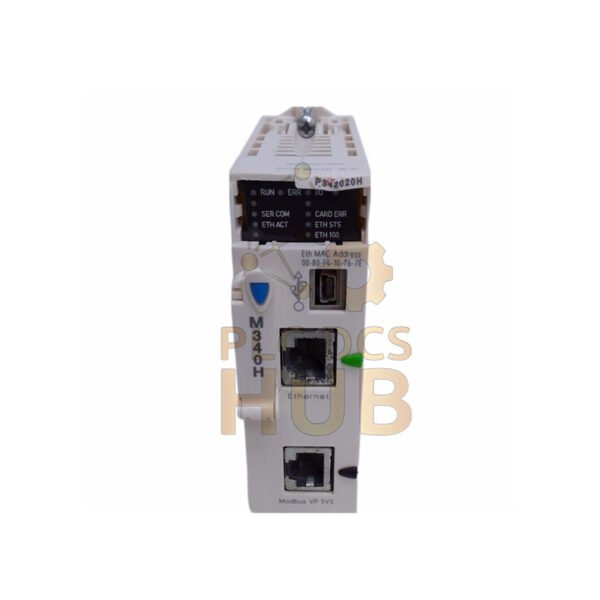

Modicon M340 Rugged Processor: Built for Tough Environments
The BMXP342020H processor delivers reliable control for harsh industrial applications. This robust Modicon M340 unit handles extreme temperatures and challenging conditions. Get complete setup details for your BMXP342020H by downloading our manual.
- Complete installation guide for severe environments
- Programming examples and configuration tips
- Maintenance procedures for long-term reliability
- Safety instructions for hazardous locations
Key Features and Benefits
- Brand & Model: Schneider Electric BMXP342020H
- Product Series: Modicon M340 Automation Platform
- I/O Capacity: 1024 discrete points, 256 analog points
- Environment Rating: Designed for severe conditions
- Temperature Range: -13°F to 158°F (-25°C to 70°C)
- Communication: Ethernet, Modbus, CANopen protocols
- Memory: 4096 kB RAM with 8MB memory card
Technical Specifications
- Processing Speed: 0.12 µs for Boolean instructions
- Power Consumption: 95 mA at 24V DC from rack
- Task Capacity: 64 event tasks plus master/fast tasks
- Network Ports: Ethernet, USB, serial RS232/485
- Weight: 0.452 lb (0.205 kg) compact design
- LED Indicators: 8 status lights for monitoring
- Protection: IP20 rating with conformal coating
Environmental Durability
- Hazardous Certification: ATEX/IECEx Zone 2/22 approved
- Chemical Resistance: Gas class Gx and 3C4 rated
- Contaminant Protection: Dust, sand, salt, mold resistant
- Humidity Range: 10% to 95% non-condensing
- Safety Standards: Class I Division 2 hazardous locations
- Vibration Resistant: Industrial-grade construction
Packaging and Shipping
- Unit Package: 1 processor per box
- Package Size: 4.72 x 4.61 x 2.20 inches
- Package Weight: 8.995 ounces (255 grams)
- Bulk Package: 15 units per shipping case
- Case Size: 15.75 x 11.81 x 5.91 inches
- Case Weight: 8.891 pounds (4.033 kg)
- Carriers: FedEx, UPS, DHL available
- Warranty: 12-month protection included
Professional FAQ Section
What makes this processor suitable for severe environments?
It operates from -13°F to 158°F and has conformal coating protection against moisture and contaminants.
How many communication ports does it have?
It includes Ethernet, USB, RS232, and RS485 ports for multiple connection options.
Can it work in hazardous locations?
Yes, it carries ATEX and IECEx certifications for Zone 2/22 hazardous areas.
What memory card is included?
The package includes an 8MB BMXRMS008MP memory card for program storage.
How fast is the processing speed?
It executes Boolean instructions in 0.12 microseconds for rapid control response.
