Description

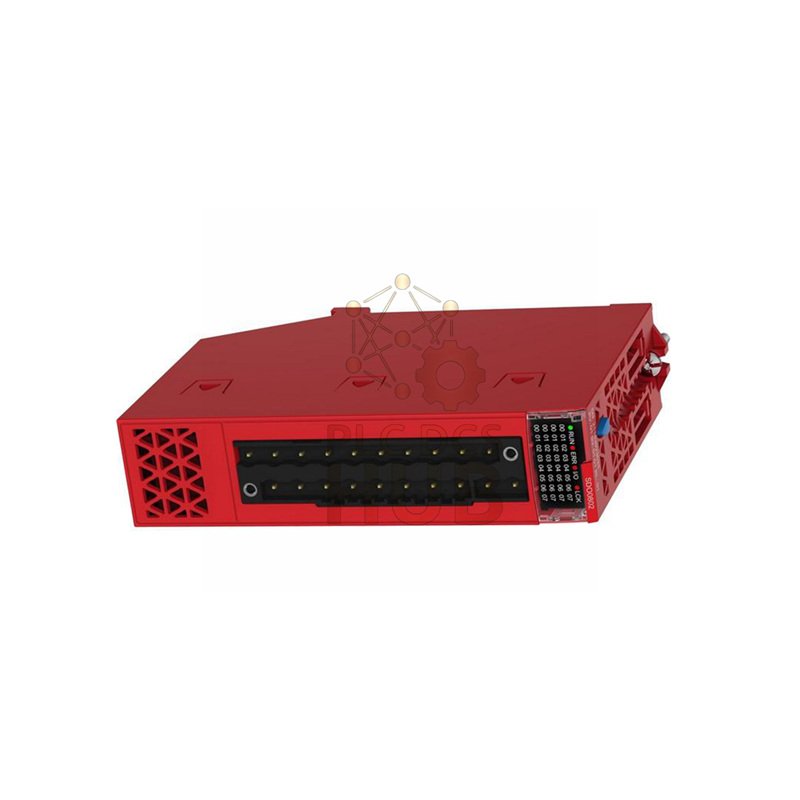

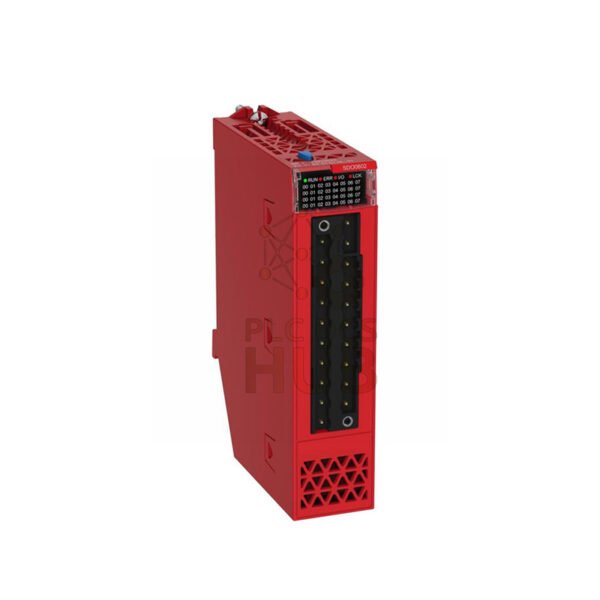

Modicon X80 Safety Output Module: Reliable 8-Channel Control
The BMXSDO0802 module provides safe output control for Modicon X80 systems. This 8-channel module ensures reliable operation in industrial environments. Get complete installation details for your BMXSDO0802 by downloading our guide.
Download Complete Instruction Manual Here
Main Features and Benefits
- Brand & Model: Schneider Electric BMXSDO0802
- Product Series: Modicon X80 Platform
- Output Channels: 8 discrete solid-state outputs
- Voltage Rating: 24V DC positive logic
- Current Capacity: 0.5A per channel, 10A total
- Response Time: 1.2ms fast operation
- LED Indicators: Channel status monitoring
Technical Specifications
- Operating Voltage: 19-30V DC wide range
- Power Consumption: 264mA at 3.3V, 15mA at 24V
- Voltage Drop: Less than 1.2V at state 1
- Leakage Current: Maximum 0.5mA at state 0
- Heat Dissipation: 4.4W power rating
- MTBF: 383,000 hours reliability
- Module Weight: 0.26 lb (0.12 kg)
Environmental Ratings
- Operating Temperature: -13°F to 140°F (-25°C to 60°C)
- Storage Temperature: -40°F to 185°F (-40°C to 85°C)
- Humidity Range: 5% to 95% non-condensing
- Vibration Resistance: 3 gn stability
- Shock Resistance: 15 gn durability
- IP Rating: IP20 protection class
- Altitude: 0-6561 feet operation
Packaging and Shipping
- Unit Package: 1 module per box
- Box Size: 10.24 x 7.09 x 2.17 inches
- Box Weight: 12.028 ounces (341 grams)
- Case Package: 8 units per shipping case
- Case Size: 15.75 x 11.81 x 11.81 inches
- Case Weight: 7.385 pounds (3.350 kg)
- Shipping Methods: FedEx, UPS, DHL available
- Warranty Coverage: 12-month quality guarantee
Professional FAQ Section
What is the maximum current per output channel?
Each channel can handle 0.5A continuously, with a maximum of 0.625A per channel.
Can outputs be connected in parallel?
Yes, you can parallel up to 2 outputs for higher current applications.
What protection does the module have?
It includes short-circuit, overload, overvoltage, and reverse polarity protection.
How fast is the response time?
The output responds within 1.2 milliseconds for quick control actions.
What type of loads can it drive?
It can drive tungsten loads up to 6W and is compatible with IEC 61131-2 type 3 DC inputs.
