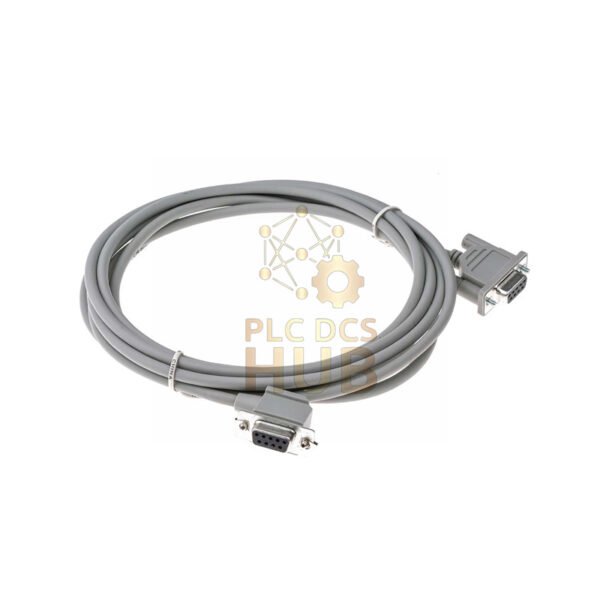

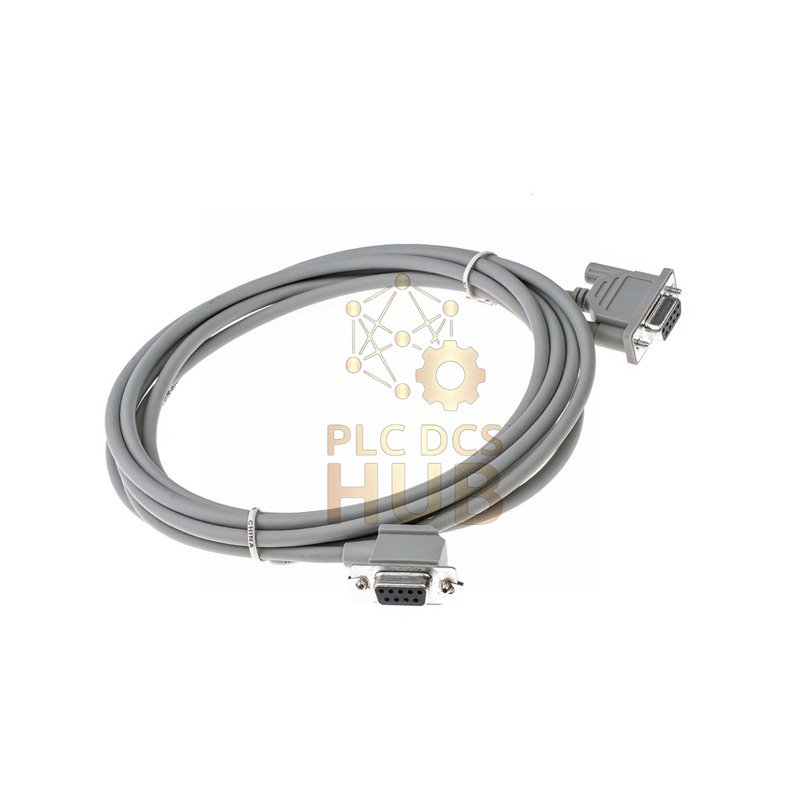

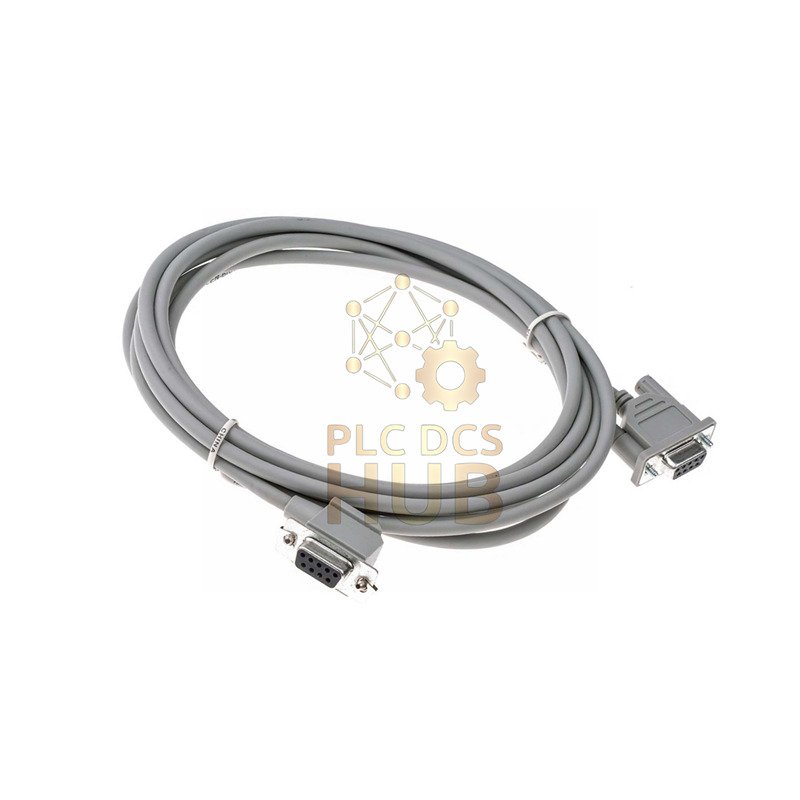

Allen-Bradley 1747-CP3: 3-Meter SLC 500 Programmer Cable
Connect and program your SLC 5/02 to 5/05 processors with this reliable 3-meter cable. The 1747-CP3 cable is your essential link for easy setup and communication.
Before You Start
- Download the full installation and wiring guide for your SLC 500 system.
- Get the manual here: SLC 500 Hardware Guide (PDF)
Detailed Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model Number: 1747-CP3
- Series: SLC 500
- Cable Type: 9-pin Null Modem (RS-232)
- Cable Length: 3 meters / 118 inches
- Connector A: 9-pin D-Shell (Male)
- Connector B: 9-pin D-Shell (Female)
- Internal Wire: Belden 9463
- Weight: 0.37 lbs (168 grams)
- Operating Temperature: 32°F to 140°F (0°C to 60°C)
Compatible With
- SLC 5/02, SLC 5/03, SLC 5/04, SLC 5/05 Processors
- PanelView Component Terminals
- MicroLogix Controllers
- Standard PC Serial Ports (DTE Devices)
Frequently Asked Questions
- Q1: Can I use this 1747-CP3 cable with a USB adapter?
- A1: Yes, but you must use a reliable USB-to-serial adapter and install the correct drivers on your computer first.
- Q2: Is this a straight-through or null modem cable?
- A2: The 1747-CP3 is a null modem cable, which means it crosses the transmit and receive lines to allow two DTE devices to communicate.
- Q3: Will this cable work for programming MicroLogix 1000?
- A3: No, the MicroLogix 1000 uses a different protocol (DF1) and requires a different programming cable.
- Q4: What is the purpose of the internal jumpers?
- A4: The internal jumpers help control the flow of data (handshaking) between the controller and your computer, ensuring stable communication.
- Q5: My computer doesn’t have a 9-pin port. What do I need?
- A5: You will need a USB-to-Serial adapter that provides a true 9-pin COM port and is known to work well with Rockwell software.
