Description

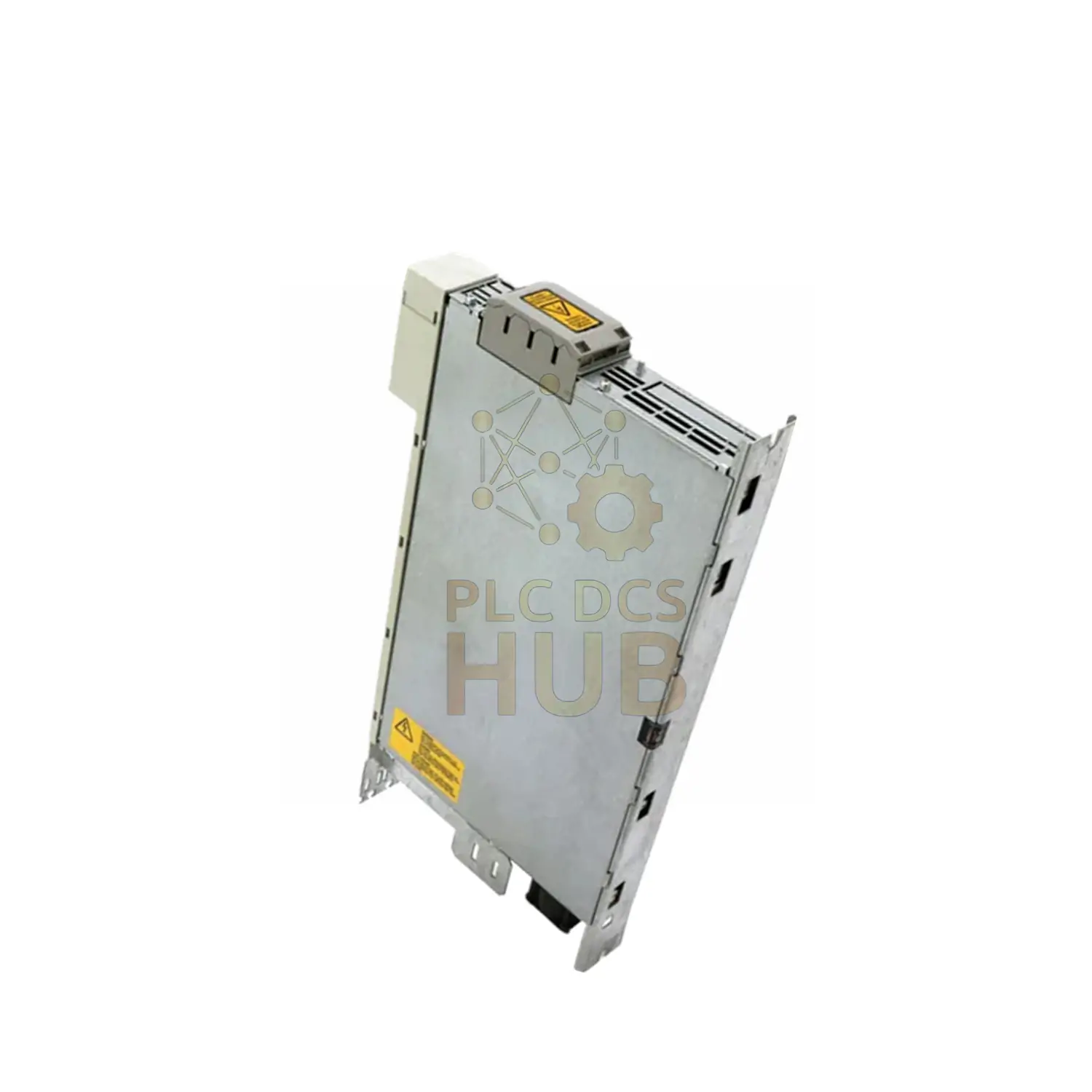

Siemens 6SE7018-0TA61-Z – High-Power 8A DC/AC Drive
The 6SE7018-0TA61-Z converts 510-650V DC to 3-phase AC power with 8A continuous output. Ideal for industrial motor control applications.
Key Features
- Wide input range (510-650V DC)
- 8A continuous current output
- Adjustable 0-400Hz output frequency
- Compact design for space-saving installation
- Professional motion control capabilities
Technical Specifications
| Model Number | 6SE7018-0TA61-Z |
| Brand | Siemens |
| Series | SIMOVERT MASTERDRIVES MC |
| Input Voltage | 510-650V DC |
| Output Voltage | 0-380/480V AC |
| Output Current | 8A continuous (12A peak) |
| Power Rating | 3.7KW |
| Switching Frequency | 4-16kHz adjustable |
| Efficiency | >96% |
| Cooling Method | Forced air |
| Dimensions | 356×102×483mm |
| Weight | 9.1kg |
Frequently Asked Questions
- What’s the peak current capability?
12A for up to 60 seconds. - Can I use this with solar power systems?
Yes, compatible with 510-650V DC sources. - What protection features are included?
Overcurrent, overvoltage, and thermal protection. - Is parameter storage available?
Yes, supports parameter backup. - What cables are recommended?
4mm² minimum for power connections.
Shipping & Warranty
Fast delivery via FedEx, UPS or DHL. 12-month performance guarantee included.
Package Contents
- Siemens 6SE7018-0TA61-Z drive unit
- Mounting hardware
- Quick start guide
