Description
Product Overview

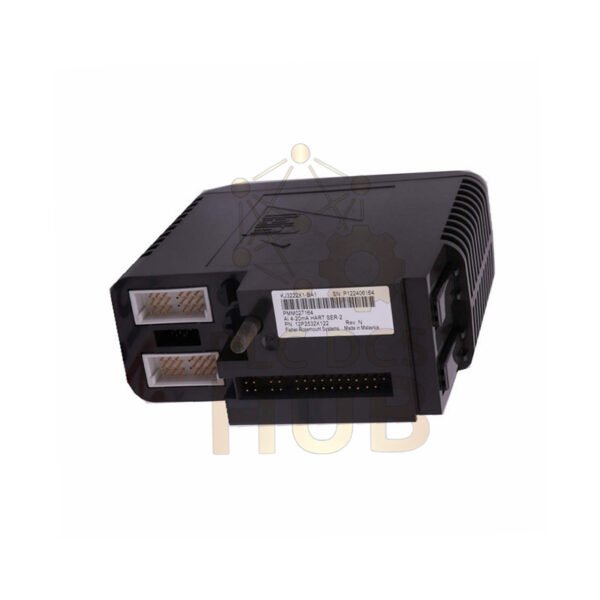

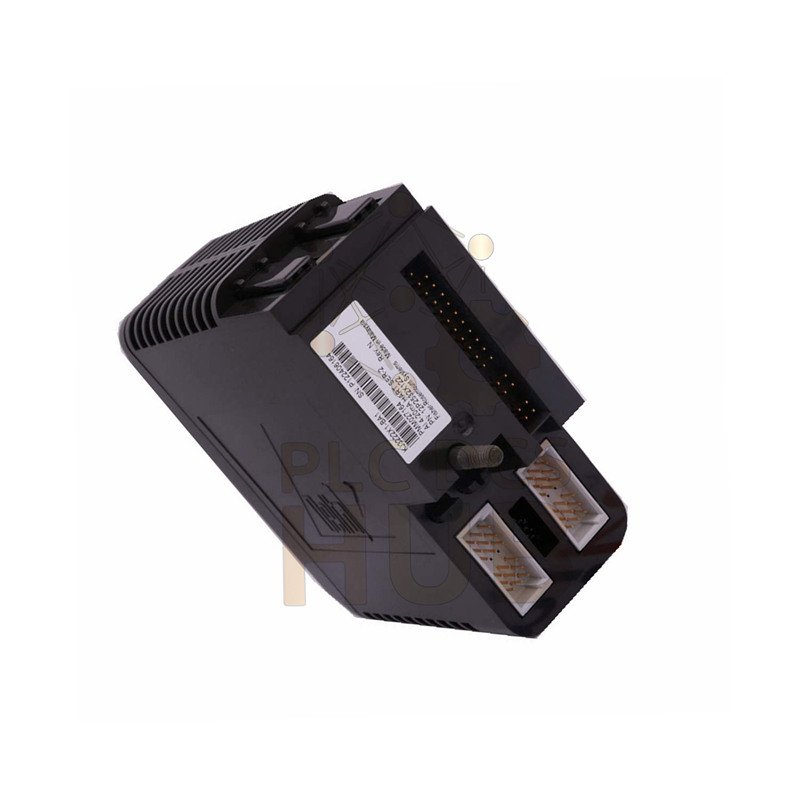

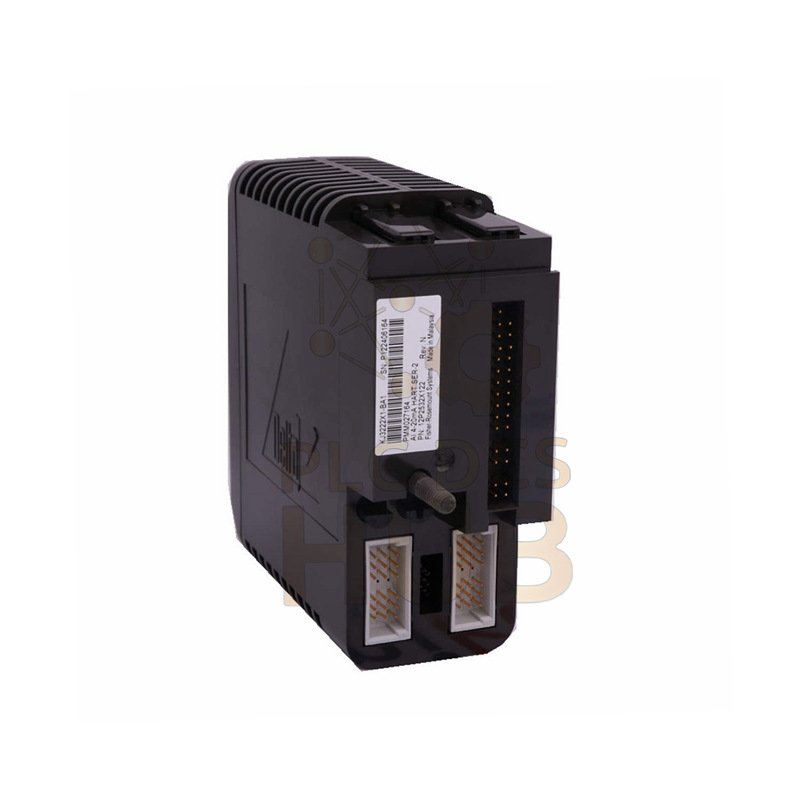

The VE4035S2B1 is a robust redundant I/O system. It pairs with the KJ3221X1-BA1 and KJ3221X1-EA1 termination blocks. This setup provides eight reliable 4-20mA analog output channels. It is perfect for critical process control applications.
Key Specifications & Performance
- Complete System: VE4035S2B1 with KJ3221X1-BA1 and KJ3221X1-EA1
- Channels: Eight independent analog output channels
- Signal Range: 4 to 20 mA nominal (1 to 23 mA full range)
- Isolation: High 1500V DC optical isolation per channel
- Resolution: Precise 12-bit digital-to-analog conversion
- Accuracy: Excellent 0.25% of span over temperature
- Power: Field circuit: 300 mA max @ 24V DC
- Load Drive: Can drive 20 mA into a 700 ohm load
- LocalBus Current: 100 mA typical, 150 mA maximum
Reliability & Design Features
- Redundant Design: Built for high-availability systems
- On-board Calibration: Calibration data stored on the card
- Protection: Optional 2.0 A fuse for circuit safety
- Warranty: Backed by a 12-month manufacturer warranty
- Shipping: Fast global delivery via FedEx, UPS, and DHL
Frequently Asked Questions (FAQ)
- What makes this a “redundant” I/O system?
The VE4035S2B1 card works with dual termination blocks. This setup allows for backup if one path fails, ensuring continuous operation. - Can I use only one termination block to save cost?
For true redundancy, you need both KJ3221X1-BA1 and KJ3221X1-EA1. Using only one block removes the system’s backup capability. - What type of cable should I use for field wiring?
Use standard shielded twisted-pair cable. This helps reduce electrical noise for accurate 4-20mA signal transmission. - How do I know if my power supply is adequate?
Your 24V DC supply must deliver at least 300mA for the field circuits. Also ensure it can power the LocalBus (12V, 150mA max). - Is this card suitable for safety instrumented systems (SIS)?
While robust, you must check specific system certifications. This module is for general high-reliability control, not dedicated SIS use.
