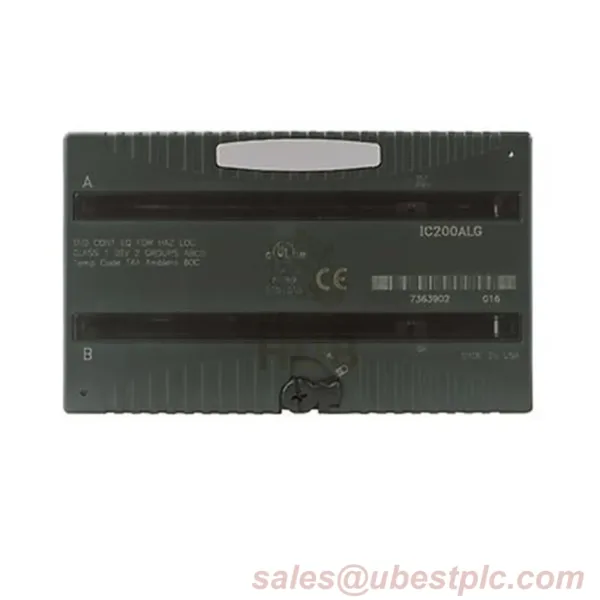

GE Fanuc IC200ALG325: Precision 8-Channel Analog Output
High-density 13-bit output module for Versamax systems. Dual diagnostics + industrial durability.
Technical Specifications
Output Type
Voltage (bipolar/unipolar)
Voltage (bipolar/unipolar)
Voltage Range
-10V to +10V DC
-10V to +10V DC
Resolution
13-bit (8,192 steps)
13-bit (8,192 steps)
Accuracy
±1% full scale
±1% full scale
Isolation
1500VAC (1 min)
1500VAC (1 min)
Power
18-30V DC external
18-30V DC external
Installation Guide
- Mount in Versamax rack (0-60°C environment)
- Connect 18-30V DC external power
- Configure outputs via PLC software
- Verify green “OK” LED illuminates
- Calibrate during initial startup
Diagnostics & Monitoring
Dual LED Indicators
• Green “OK” light: Power status
• Red “Fault” light: Output errors
Auto-Diagnostics
• Continuous power loss detection
• Channel fault reporting
• Configuration error alerts
Shipping & Support
???? Global Express Shipping
FedEx • UPS • DHL
Typically delivers in 2-3 business days
???? 12-Month Warranty
Covers defects
Technical FAQ
Q: Can outputs operate simultaneously?
A: Yes – all 8 channels update every 10ms
Q: Bipolar vs unipolar operation?
A: Supports both: ±10V DC or 0-10V DC
Q: Required calibration frequency?
A: Annual calibration recommended
Q: Compatible with Versamax Micro?
A: Yes – integrates with all Versamax PLCs
