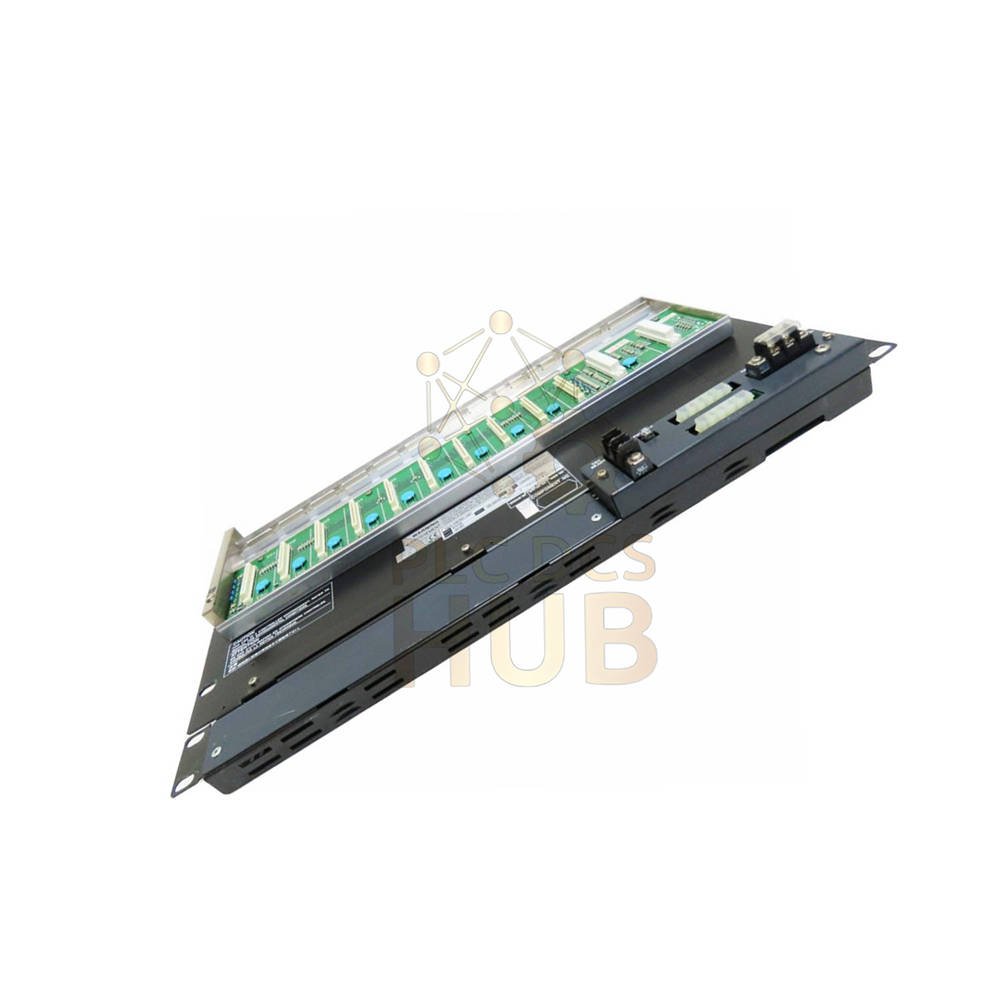

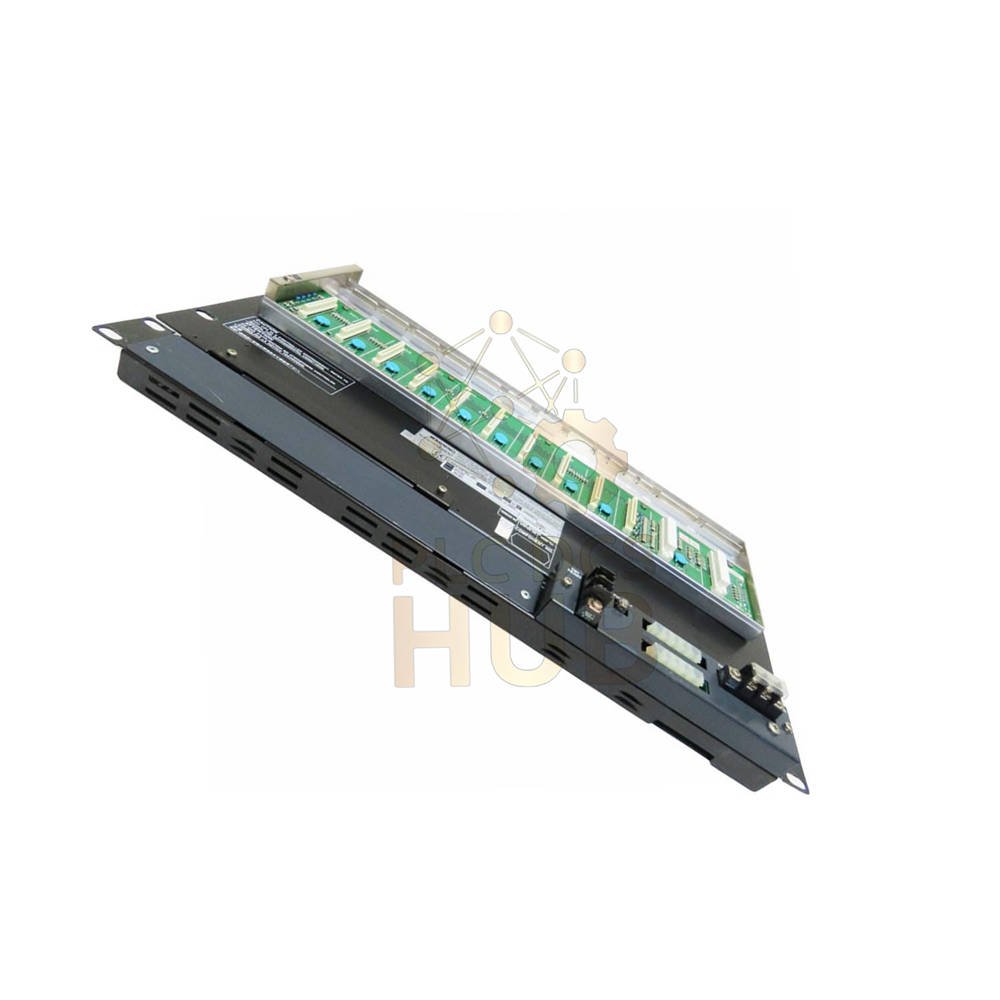

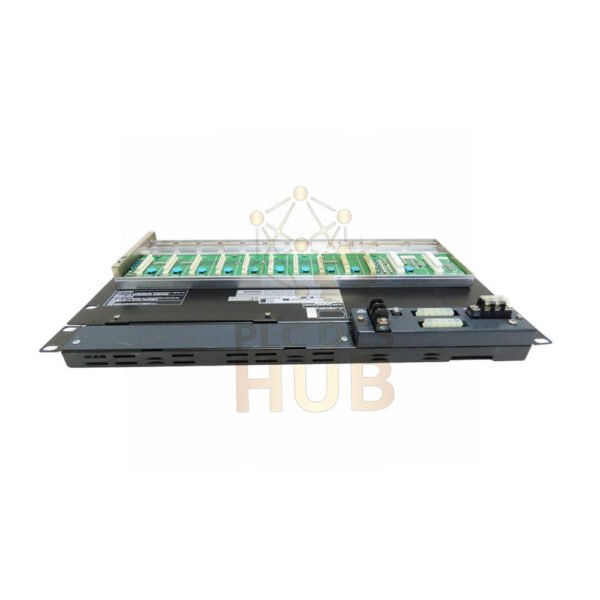

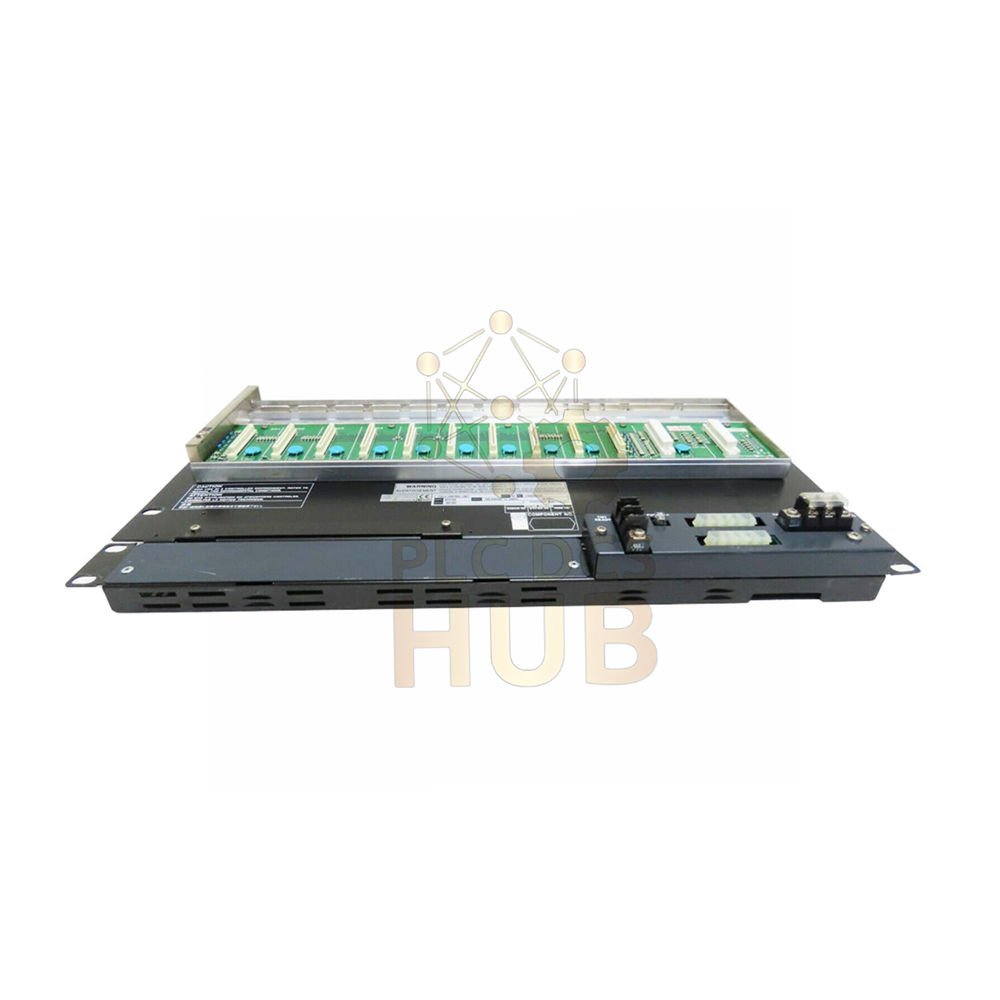

Yokogawa AFV10D-S41201 Field Control Unit for Centum VP

Description

Product Overview

• Brand: Yokogawa
• Model: AFV10D-S41201
• Type: Duplexed Field Control Unit
• System: Yokogawa Centum VP

• AFV10D-S41201 controls field I/O with high stability.
• Designed for Vnet/IP and FIO networks.
• Supports full dual-redundant architecture.
• Fits standard 19-inch industrial racks.
• Ensures safe and continuous plant operation.

Key Technical Data

• Main Memory: 32 Mbyte
• Control Function: LFS1500 for Field Control Station
• Network Protocol: Vnet/IP
• I/O System: FIO
• Power Supply Option: 100–120 V AC or 220–240 V AC
• Redundancy: Dual CPU, Dual Power Supply
• Mounting Type: 19-inch rack mount
• Weight: Approx. 8 kg
• Operating Temperature: 0 to 55 °C
• Storage Temperature: -20 to 70 °C
• Humidity: 10 to 90% RH non-condensing
• Power Frequency: 50/60 Hz
• Shock Resistance: Suitable for control room cabinet
• Cooling: Forced air ventilation
• EMC Protection: Industrial immunity level

Configuration Breakdown

• AFV10D
  • -S
    • Standard type
  • -4
    • Dual-Redundant Vnet/IP
    • Dual-Redundant Power Supply
  • -1
    • 100–120 V AC input
  • -2
    • 220–240 V AC input
  • -0
    • Basic hardware type
  • -1
    • LFS1500 Control Function
    • For Vnet/IP and FIO systems

Core Selling Points

• True duplex design for zero single point failure.
• Fast network data exchange.
• High memory capacity for complex logic.
• Stable long-term operation.
• Easy integration into existing Centum VP systems.
• Designed for large process plants.

Installation Notes

• Install inside a clean control cabinet.
• Ensure correct AC voltage selection.
• Connect redundant power lines separately.
• Keep airflow space above and below unit.
• Verify network cable redundancy.

Maintenance Advantages

• Supports online diagnostics.
• Quick module replacement design.
• Clear status indicators.
• Low routine maintenance needs.

Warranty and Shipping

• 12-Month Warranty from shipment date.
• Fast delivery via FedEx, UPS, or DHL.
• Professional export packing.

FAQ

• How does duplex control improve reliability?
• Two CPUs work together.
• If one fails, the other continues.
• Can this unit run large control logic?
• Yes.
• 32 MB memory supports complex programs.
• Which power version should I choose?
• Check your cabinet AC voltage first.
• Select 100–120 V or 220–240 V correctly.
• Is it suitable for plant expansion?
• Yes.
• It works well in growing Vnet/IP systems.
• What should I check before installation?
• Confirm rack space and cooling.
• Verify redundant power wiring.
