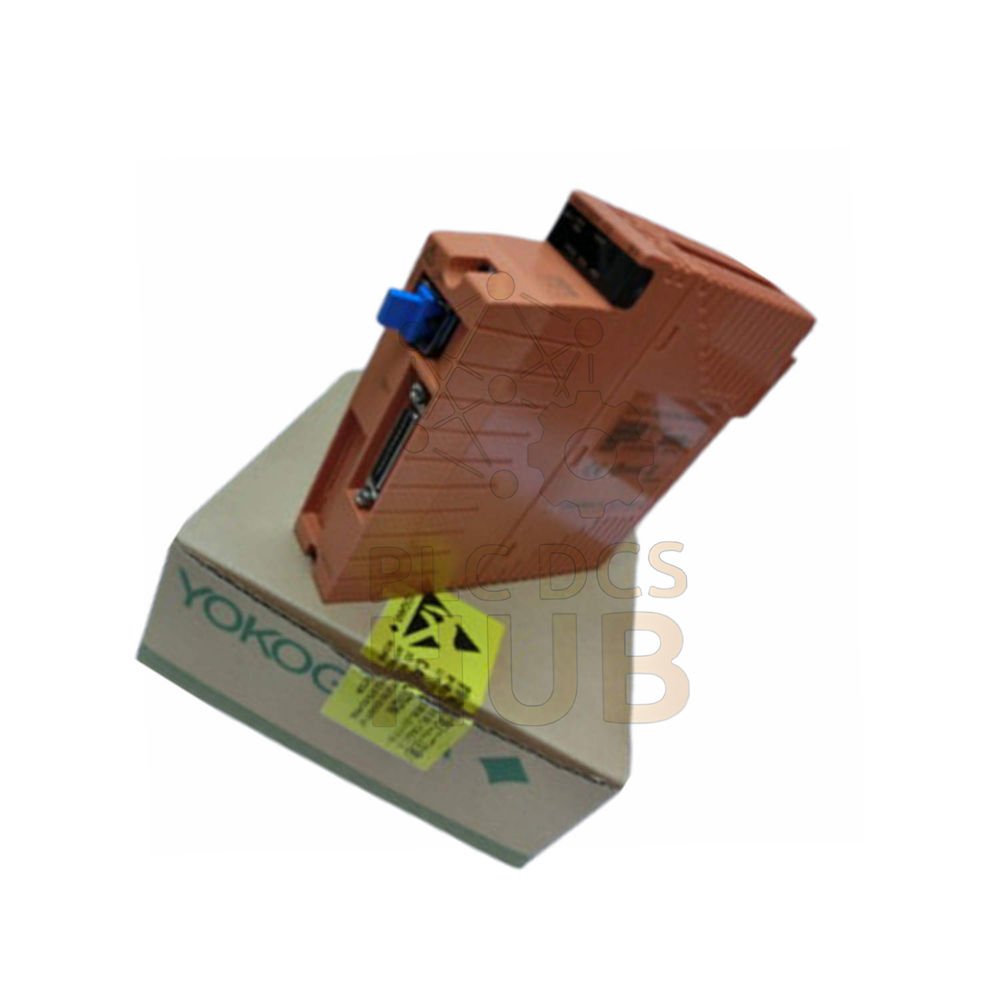

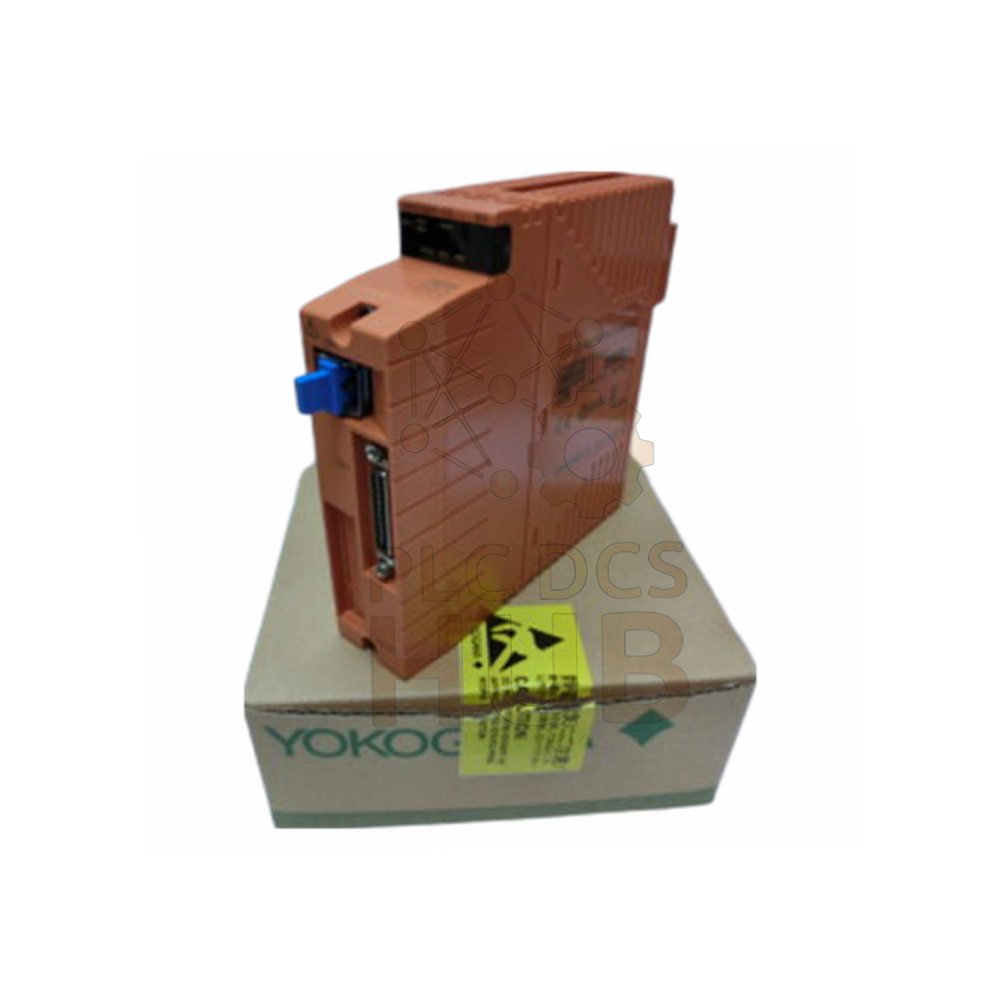

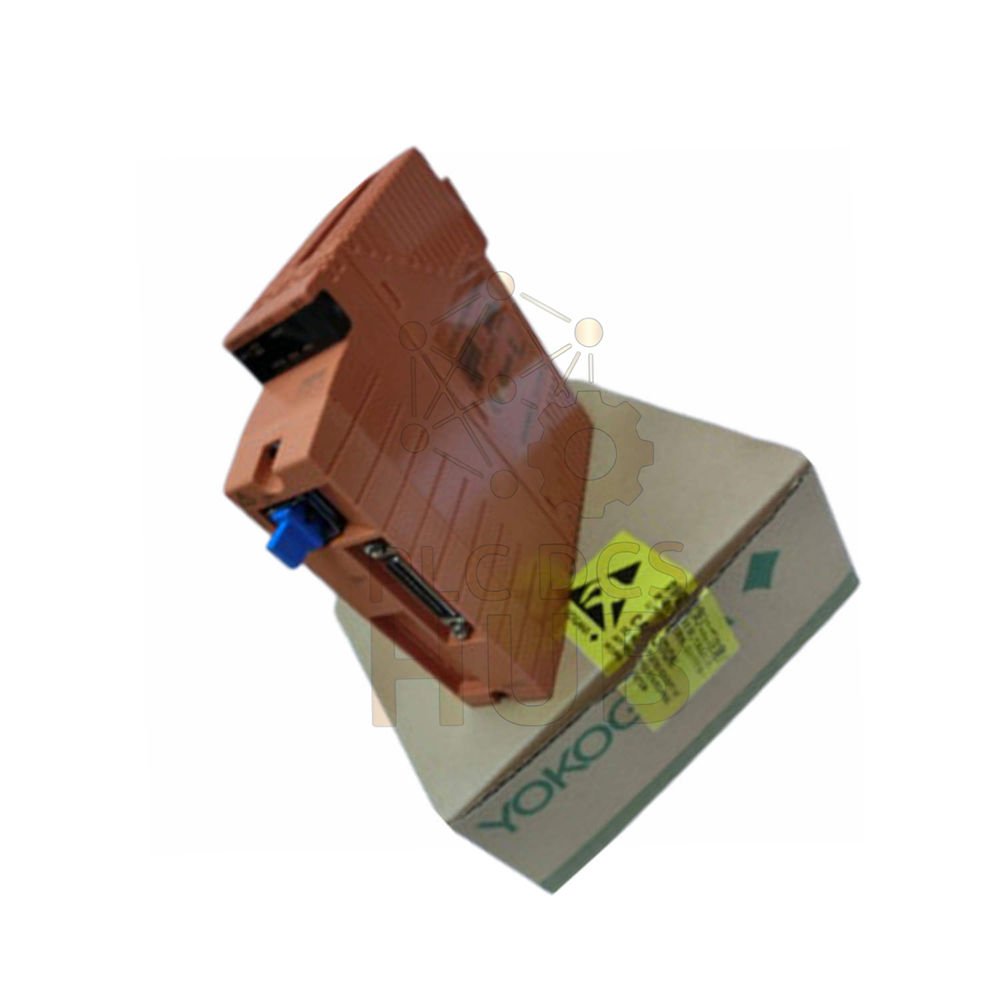

SNT501-13 Yokogawa Optical ESB Bus Repeater Module
- Product Description: The Yokogawa SNT501-13 is a high-quality fiber optic module. It links industrial devices over long distances. It converts electrical signals into light for fast data travel. This module works perfectly with CENTUM VP systems. It helps you build a strong and stable control network.
Key Communication Features
- Long Distance: Send data up to 5 km in normal setups.
- Max Range: Reach up to 10 km using Vnet/IP R1.03 or later.
- Easy Layout: It supports both Star and Chain connection types.
- Signal Safety: Strong anti-interference tech stops electronic noise from breaking your data.
Technical Data
- Brand: Yokogawa
- Model: SNT501-13
- Power Use: Low 0.5 A current helps save energy.
- Size: Small 142.5 x 32.8 x 32.8 mm fits tight boxes.
- Weight: Very light at only 0.3 kg.
- Accuracy: High resolution for perfect signal conversion.
- Build: Strong design for hot or vibrating factory areas.
Installation and Maintenance
- Fast Setup: Small size makes mounting quick and easy for anyone.
- Live Status: LED lights show you if the module is working or has an error.
- Easy Care: The plug-and-play design means you can swap parts fast.
- Commissioning: Simple steps help you start your system without delay.
Compatibility and Use Cases
- System Match: Fully tested with Yokogawa CENTUM VP series.
- Industry Use: Best for Oil, Gas, Chemical, and Power plants.
- Connectivity: Use it to connect remote field units to your main room.
Shipping and Warranty
- Warranty: You get a 12-month quality guarantee.
- Box Contents: Includes one SNT501-13 module and a manual.
- Fast Shipping: We use FedEx, UPS, and DHL for quick global delivery.
Buying Guide
- Distance Tip: Check your cable length to stay under the 10 km limit.
- Layout Tip: Choose Star for safety or Chain to save cable.
- System Check: Ensure your software is R1.03 for the longest range.
- Stock Tip: Buy an extra unit to avoid long downtime if one breaks.
FAQ
- Can I use this with other brands?
- No, it only works with Yokogawa ESB Bus systems.
- What cable do I need?
- Use high-quality fiber optic cables for the best signal.
- Is it hard to install?
- No, it is a simple plug-in module with clear LED lights.
- How fast is shipping?
- We ship via DHL/FedEx for the fastest arrival.
