Optimizing Industrial Precision with the Honeywell CC-PAIH51 Series C Module

The Honeywell CC-PAIH51 serves as a cornerstone of the Experion PKS Series C I/O family. This analog input module bridges the gap between field instrumentation and digital control strategies. It excels in demanding sectors like oil & gas and petrochemicals. High-integrity signal acquisition ensures that critical measurements remain accurate and reliable. Furthermore, the module minimizes false trips, which directly enhances plant safety and operational uptime.

The Role of 16-Bit Resolution in Industrial Control

The CC-PAIH51 utilizes a 16-bit Analog-to-Digital (A/D) converter to process field signals. This hardware configuration provides 65,536 discrete signal levels for every input. Consequently, a standard 4–20 mA loop achieves a granularity of approximately 0.00024 mA per step. This precision is ideal for advanced PID tuning and complex DCS strategies. However, while 16-bit resolution is impressive, remember that total loop accuracy depends on the weakest link.

Expert Insight from PLCDCS HUB: In our field experience, wiring noise and sensor drift often impact performance more than the module bit-depth. Always prioritize high-quality shielded cabling to realize the full potential of your industrial automation hardware.

Managing Noise Immunity and Signal Filtering

Modern factory automation environments are often saturated with electromagnetic interference from VFDs and heavy motors. The CC-PAIH51 addresses this through sophisticated, configurable digital filtering. These filters smooth out signal jitter to ensure stable control loops. However, engineers must balance stability with responsiveness. Excessive filtering can introduce signal lag, which is dangerous in high-speed applications like compressor anti-surge systems. Therefore, precise tuning during the commissioning phase remains essential.

Leveraging HART Communication for Predictive Maintenance

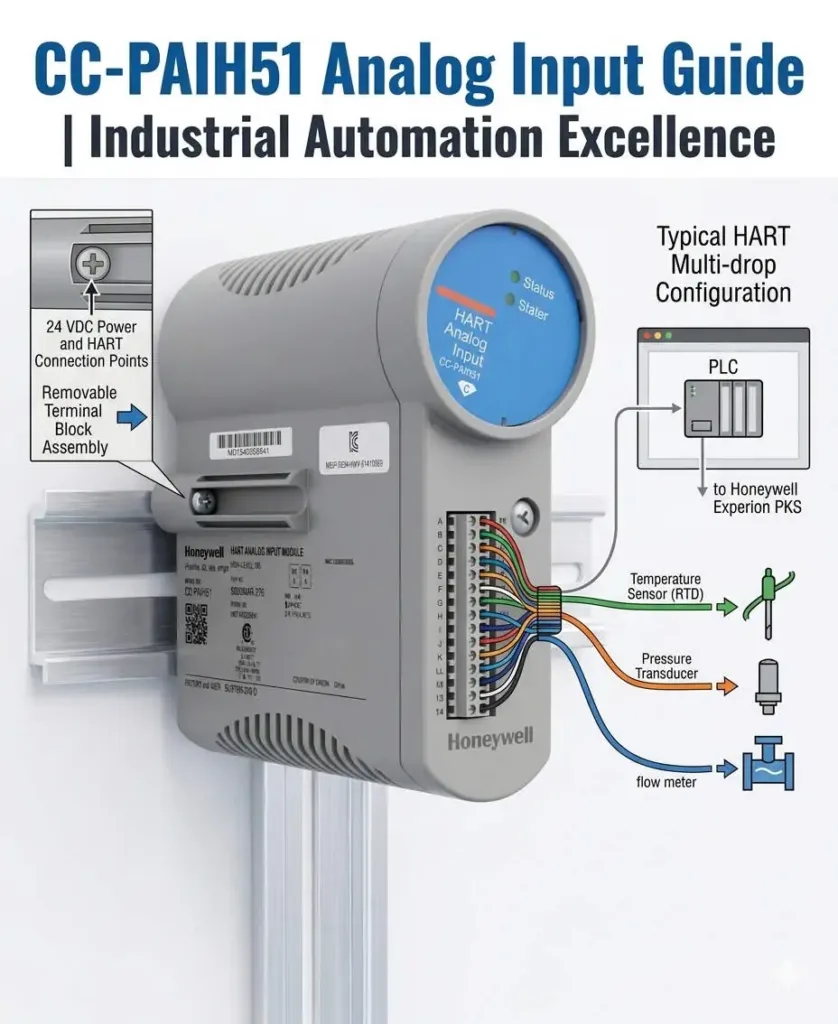

Modern control systems rely heavily on intelligent device management. The CC-PAIH51 supports HART-enabled field devices, allowing for simultaneous process variables and diagnostic data. This capability enables operators to monitor sensor health remotely from the control room. As a result, maintenance teams can identify drift or hardware failure before an actual breakdown occurs. This proactive approach significantly reduces unplanned downtime and expensive field trips.

Technical Best Practices for Installation

Successful deployment requires strict adherence to engineering standards. Poor installation can lead to intermittent signal spikes and data loss. Consider these technical checkpoints:

• ✅ Grounding Strategy: Use single-point grounding for shielded cables to prevent ground loops.
• ✅ Cable Routing: Maintain at least 30 cm separation between signal and power cables.
• ✅ Terminal Integrity: Use spring-clamp terminals in high-vibration zones near turbines or pumps.
• ✅ Surge Protection: Install external Surge Protection Devices for all outdoor cable runs.

Strategic Buyer’s Perspective on Series C Modules

Selecting the CC-PAIH51 should be a calculated decision based on your specific PLC or DCS architecture. While it offers superior performance, it is not always a “plug-and-play” replacement for legacy Series A I/O. Upgrading usually requires new baseplates and updated firmware. If your project involves custody transfer, you might require specialized high-precision transmitters alongside this module.

Application Scenarios and Solutions

• Refinery Distillation Columns: Provides stable temperature data for high-quality fuel separation.
• Offshore Platform Safety: Delivers noise-resistant monitoring for emergency shutdown systems in harsh environments.
• Continuous Chemical Processing: Ensures precise flow control to maintain chemical reaction consistency.

For authentic parts and expert technical support on your Honeywell hardware, visit PLCDCS HUB Limited today. We provide the reliable components your systems require to stay online.

Frequently Asked Questions (FAQ)

1. How do I decide between the CC-PAIH51 and a high-precision 24-bit module?
For 95% of process control loops, 16-bit is the industry standard and perfectly sufficient. You only need higher resolution for revenue-grade custody transfer where tiny signal increments represent significant financial value.

2. What is the most common mistake during CC-PAIH51 commissioning?
The most frequent error is over-filtering the signal to hide “jitter.” This masks underlying wiring issues and creates a sluggish loop. We recommend fixing the physical noise source before relying on software filters.

3. Is this module compatible with older Honeywell hardware?
The CC-PAIH51 is specifically designed for the Series C chassis. While it communicates via the Experion network, you cannot physically install it into legacy Series A or High-Performance Process Manager (HPM) racks without a migration plan.
