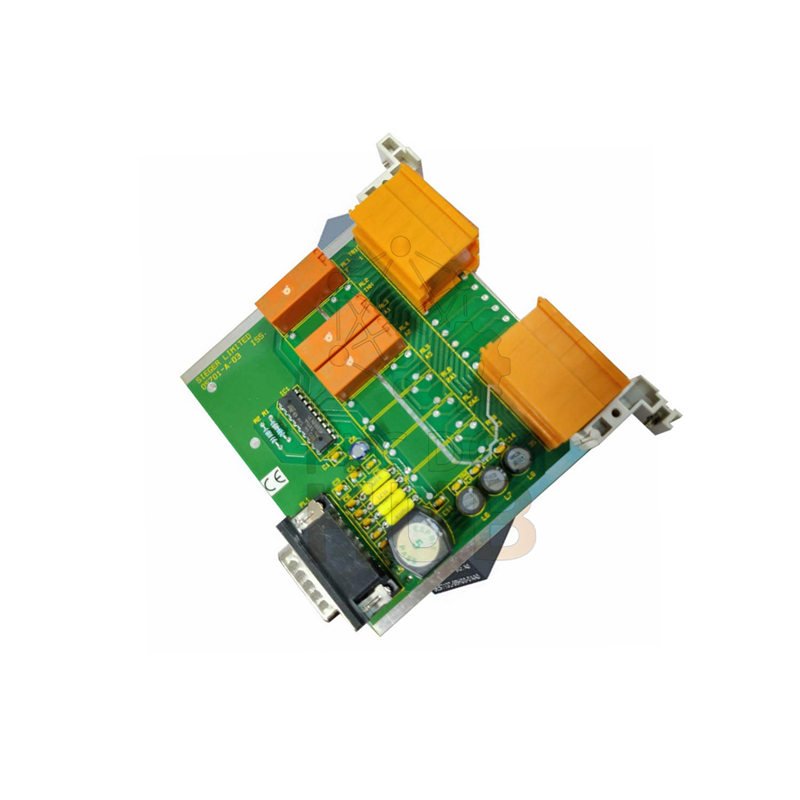

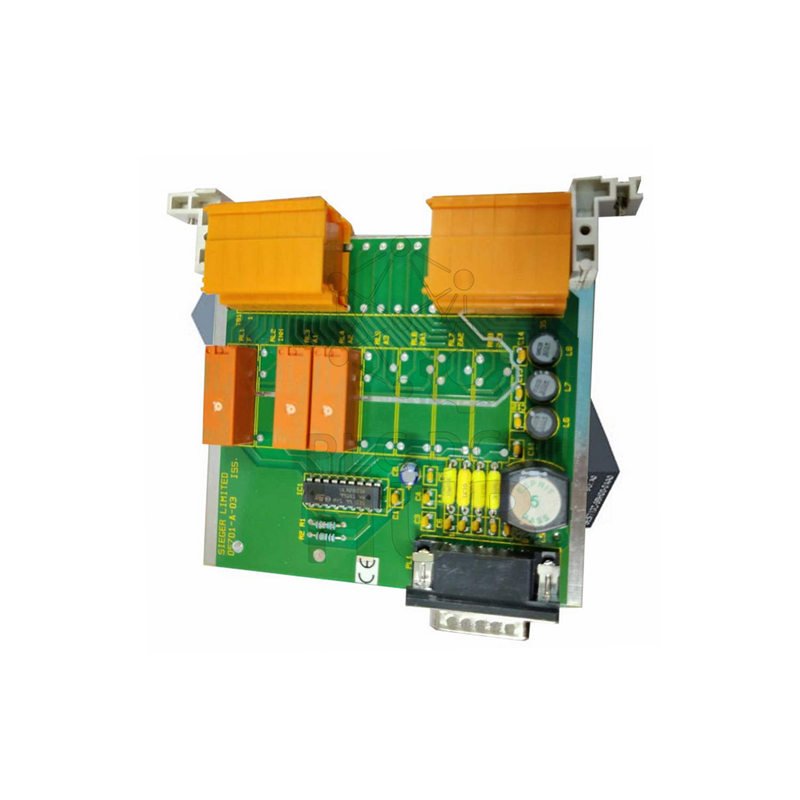

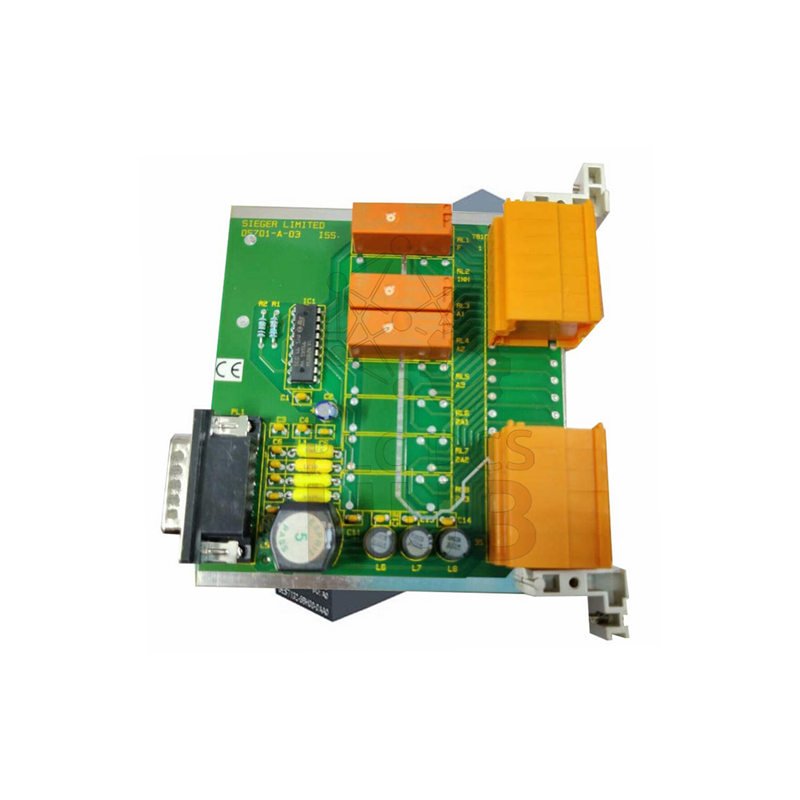

05701-A-0327 Honeywell Series 5701 Double SPCO Relay Module

Description

Product Snapshot

• Brand: Honeywell
• Model: 05701-A-0327
• Series: 5701
• Type: Double SPCO Relay Card
• This card provides stable relay switching.
• It supports control and alarm logic.
• The design fits industrial safety systems.

Why Choose This Relay Card

• Double SPCO contacts improve control flexibility.
• High insulation protects sensitive circuits.
• Strong contact rating handles real loads.
• Stable operation in harsh environments.
• Proven Honeywell reliability.

Electrical Characteristics

• Relay Configuration: Double SPCO
• Contact Rating: Up to 5A at 250V AC
• DC Load Rating: Up to 30V DC
• Operating Voltage: 24V DC or 230V AC
• Insulation Resistance: Greater than 1000 MΩ
• Dielectric Strength: 2000V AC for 60 seconds
• Contact Life: Long mechanical endurance

Environmental and Mechanical Data

• Operating Temperature: -25 °C to +55 °C
• Weight: Approx. 0.45 kg
• Resists vibration in panels.
• Suitable for continuous duty.

Installation Notes

• Designed for system card racks.
• Ensure correct coil voltage selection.
• Tighten terminals to avoid heat build-up.
• Label wiring for easy service.

Operation and Service

• Fast switching improves response time.
• No routine calibration required.
• Periodic contact inspection is advised.

Typical Applications

• Gas detection control systems.
• Industrial alarm outputs.
• Process interlock logic.
• Safety shutdown circuits.

Packing and Shipping

• One Honeywell relay card.
• Anti-static protective packing.
• Worldwide delivery via FedEx, UPS, DHL.

Warranty Policy

• 12-month warranty provided.
• Covers manufacturing defects.
• Support available during warranty period.

FAQ

• Can this relay card drive inductive loads?
• Yes, but external suppression is recommended.
• Is this card suitable for safety alarms?
• Yes, it is widely used in alarm circuits.
• How do engineers extend relay life?
• They limit switching current and voltage.
• Does contact rating affect system design?
• Yes, always size loads below the maximum rating.
• How should buyers confirm the right version?
• Check coil voltage and system compatibility.
