Description
Product Overview

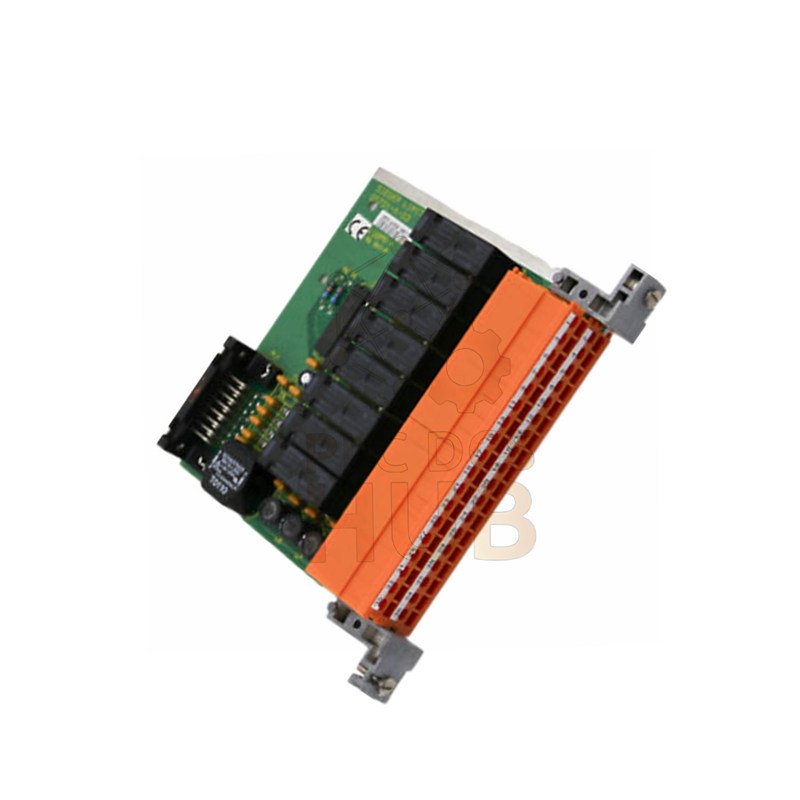

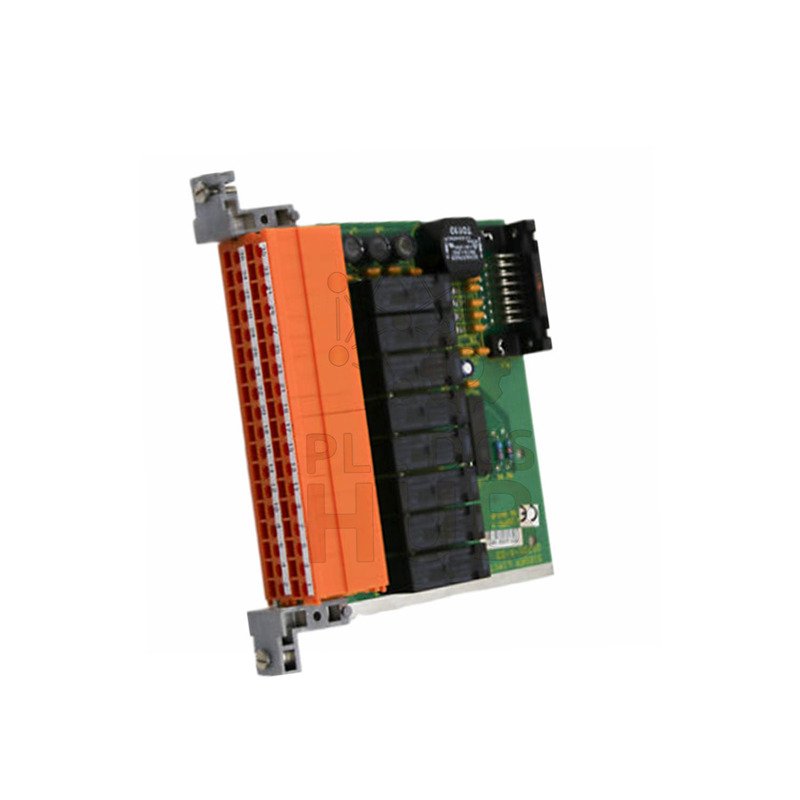

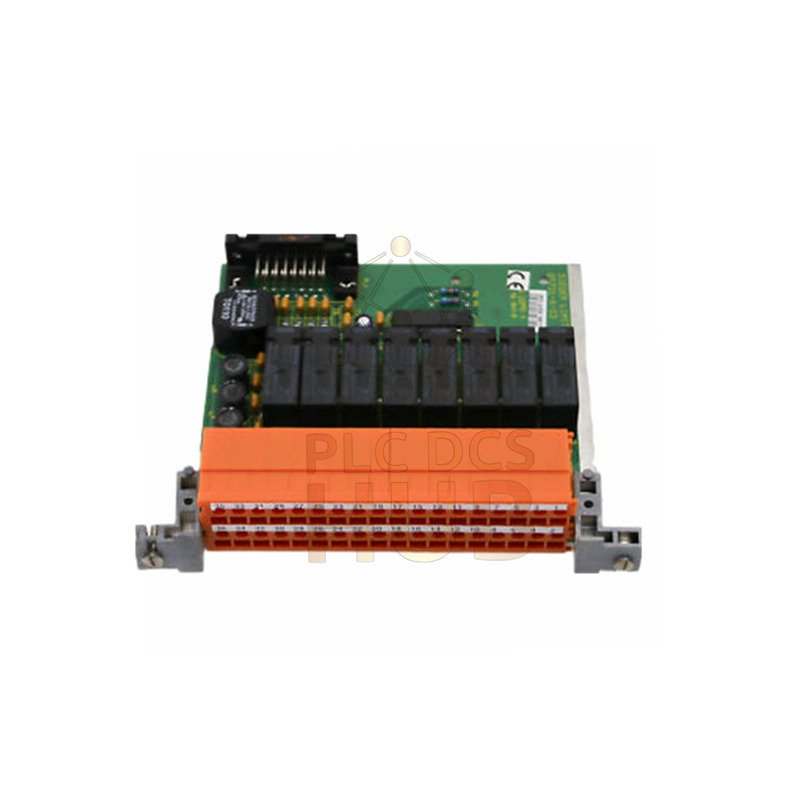

- Honeywell 05701-A-0329 is a triple DPCO relay card.
- Designed for industrial gas detection systems.
- Provides reliable relay switching for alarms.
- Supports safety and shutdown logic.
- Built for continuous operation.
Key Benefits
- Three independent relay outputs.
- Supports both DC and AC power sources.
- Stable performance under load.
- Compact size saves cabinet space.
- Rated enclosure improves durability.
Electrical Performance
- Power consumption: 3.25 W.
- DC supply range: 18 to 32 VDC.
- External DC input supported.
- External AC input: 85 to 264 VAC.
- AC frequency range: 47 to 440 Hz.
Signal Handling
- Input signal range: 0 to 25 mA.
- Full-scale input: 15 mV to 600 mV.
- Maximum line resistance: 40 ohms.
- Designed for stable sensor interfacing.
Relay Characteristics
- Triple DPCO relay design.
- Fast and repeatable switching.
- Supports alarm and fault outputs.
- Low contact wear.
Mechanical Details
- Dimensions: 112 mm x 25 mm x 170 mm.
- Weight: 1.36 kg.
- Panel-mounted card format.
- Easy access terminals.
Environmental Rating
- Ingress protection level: IP54.
- Protected from dust and splashing water.
- Suitable for industrial cabinets.
Compatibility
- Works with Honeywell gas controllers.
- Interfaces with sensor input cards.
- Supports alarm panels and PLCs.
- Ideal for system expansion.
Operational Advantages
- Improves alarm reliability.
- Reduces false trips.
- Supports layered safety design.
- Simple replacement reduces downtime.
Warranty and Delivery
- Standard warranty: 12 months.
- Secure industrial packaging.
- Worldwide shipping available.
- Courier options: FedEx, UPS, DHL.
Professional FAQ
- Is this relay card suitable for safety alarms?
- Yes. It supports reliable alarm switching.
- Can it accept both AC and DC power?
- Yes. It supports wide power input ranges.
- Is IP54 enough for plant use?
- Yes. It fits most control room cabinets.
- What should I check before buying?
- Confirm signal range and power source.
- Is it suitable for system upgrades?
- Yes. It integrates well with existing cards.
