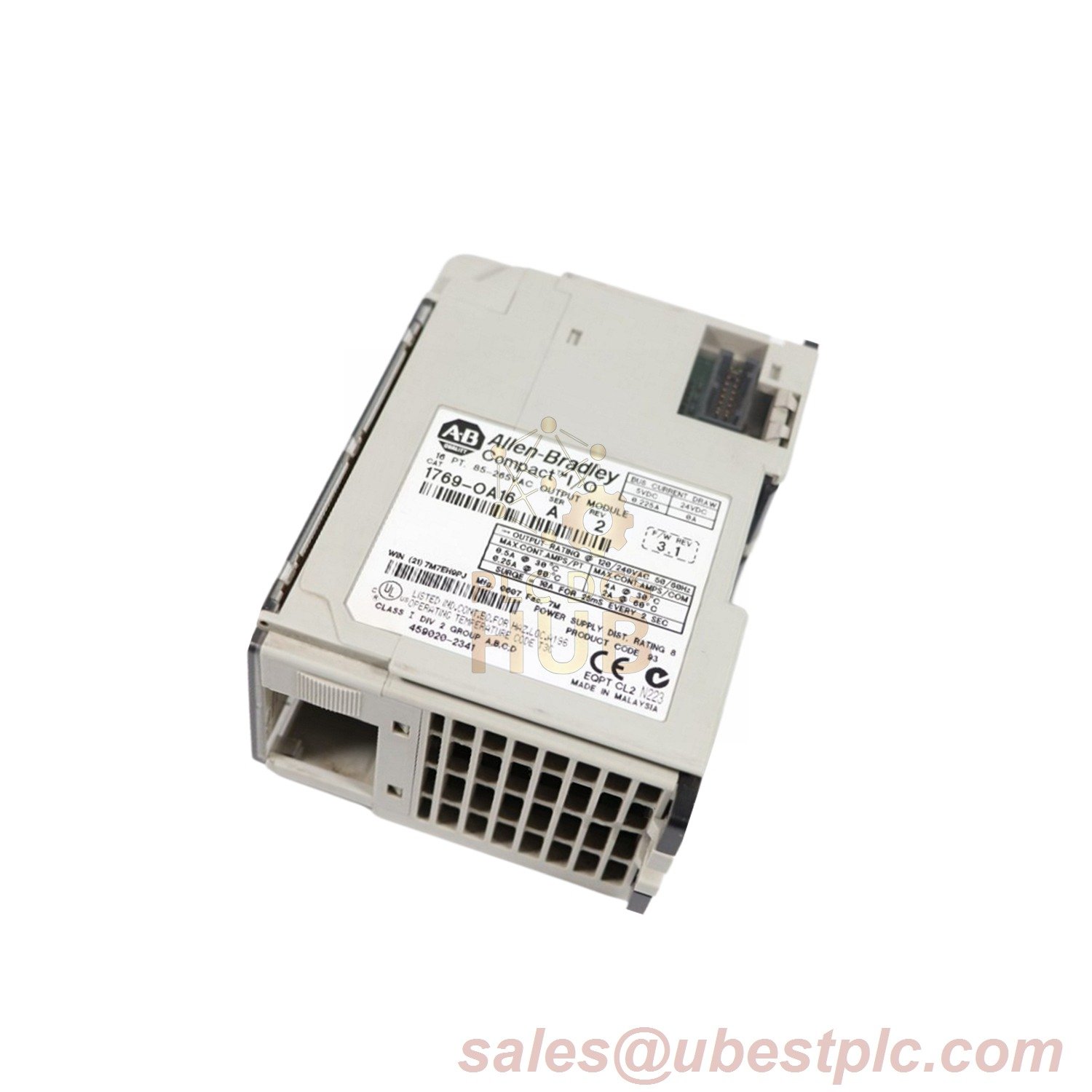

The Allen-Bradley 1769-OA16 is a 16-point discrete AC output module from the Compact I/O series. It features two isolated groups of eight outputs each, supporting both 120V and 240V AC applications. Compatible with CompactLogix and MicroLogix 1500 controllers, this module ensures efficient and flexible operation in industrial automation environments.
Technical Data
- Brand: Allen-Bradley / Rockwell Automation
- Series: Compact I/O
- Model: 1769-OA16
- Output Voltage: 120/240V AC
- Operating Voltage Range: 85-264V AC, 47-63 Hz
- Number of Outputs: 16 (2 groups of 8)
- Continuous Current per Point: 0.5A @ 30°C, 0.25A @ 60°C
- Continuous Current per Module: 2A @ 60°C, 4A @ 30°C
- Mounting Type: DIN Rail / Panel Mount
- Enclosure Type: Open
- Backplane Current Draw: 225mA at 5.1V DC
- Power Dissipation: 4.9W
- Surge Current: 5A for 25ms (repeatable every 2 sec)
