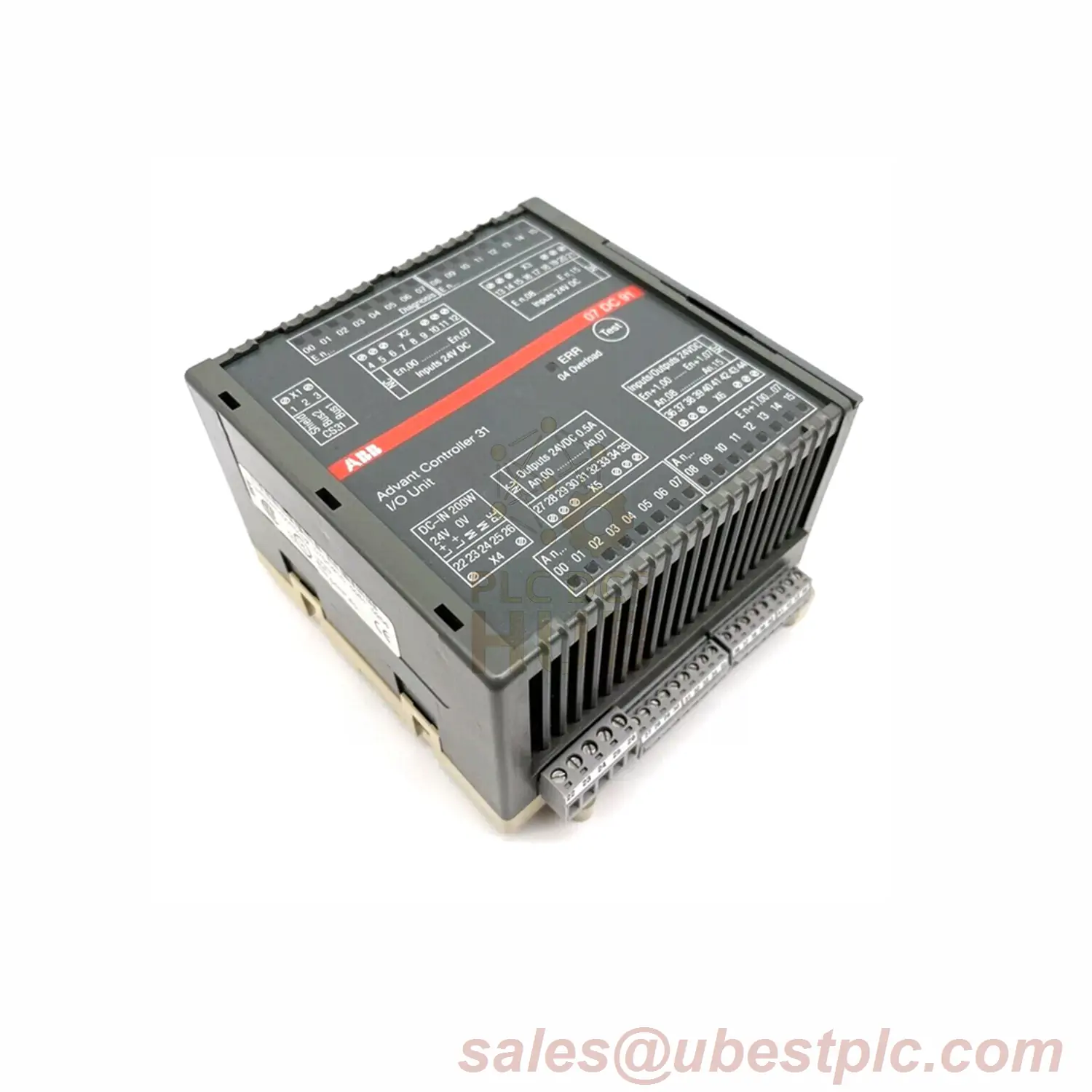

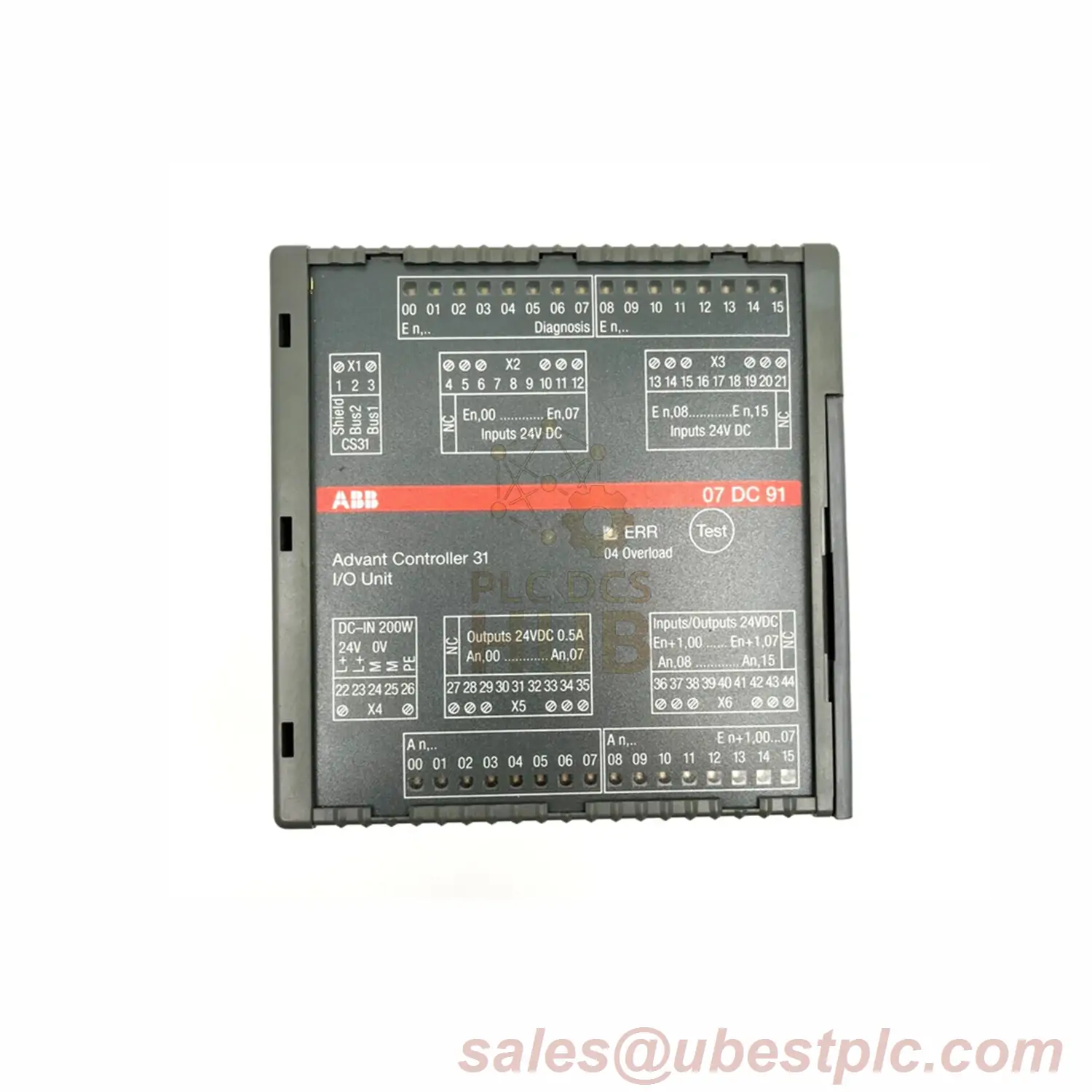

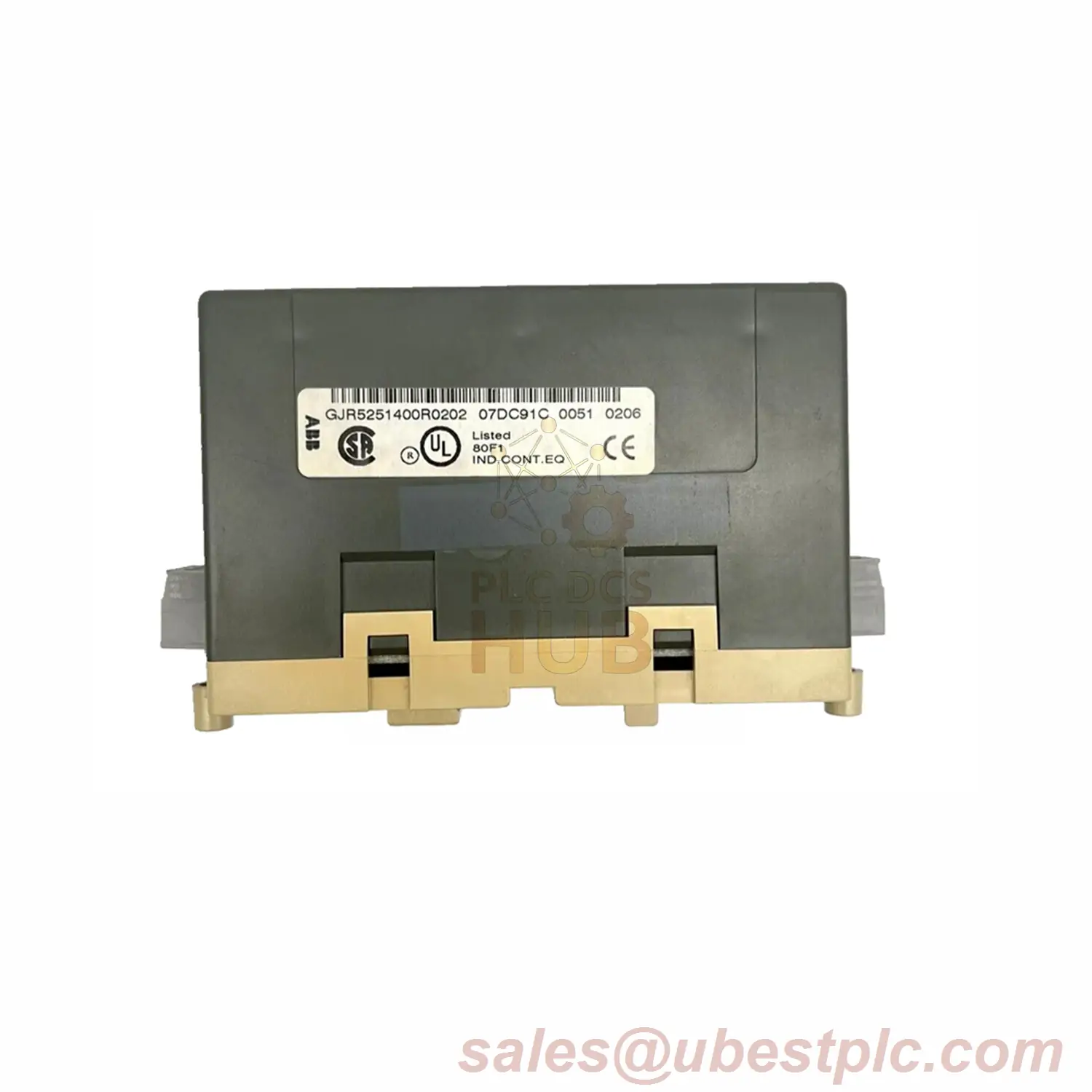

ABB Digital Input/Output Module 07DC91: Flexible Industrial Control
Product Description
Advanced 32-channel I/O module for ABB CS31 systems. Combines 16 digital inputs, 8 outputs, and 8 configurable channels. Features short-circuit protection and real-time diagnostics. Ideal for machine control and process automation.
Technical Specifications
- Brand: ABB
- Model: Digital I/O Module
- Full Suffix: 07DC91
- Inputs: 16 digital (24V DC)
- Outputs: 8 transistor (0.5A rated)
- Configurable I/O: 8 channels (input/output/re-readable)
- Power Supply: 24V DC
- Operating Temp: 0°C to 55°C
- Protection: Overload/short-circuit safety
Installation Guide
Mount vertically on DIN rail (EN 50022) or with 4x M4 screws. Ensure airflow around module. Max wire: 2.5mm² for power, 1.5mm² for signals.
Compatibility
Works with ABB CS31 control systems. Connects to PLCs, sensors, and relays.
Package Contents
- 07DC91 module
- Mounting hardware
Warranty & Shipping
12-month warranty. Ships via FedEx/UPS/DHL worldwide in 2-4 days.
Real-World Applications
Packaging Lines: Bottle counter with 16 digital sensors
Conveyor Systems: Motor control via 8 transistor outputs
HVAC Control: Configurable I/O for damper position feedback
FAQ
Q: Can configurable channels switch modes during operation?
A: Yes! Set as inputs/outputs in real-time.
Q: Maximum load per output channel?
A: 0.5A continuous (protected against shorts).
Q: How to monitor module health?
A: 33 LEDs show status: Green=inputs, Yellow=outputs, Red=errors.
