Product Overview: Quad Relay Interface Card

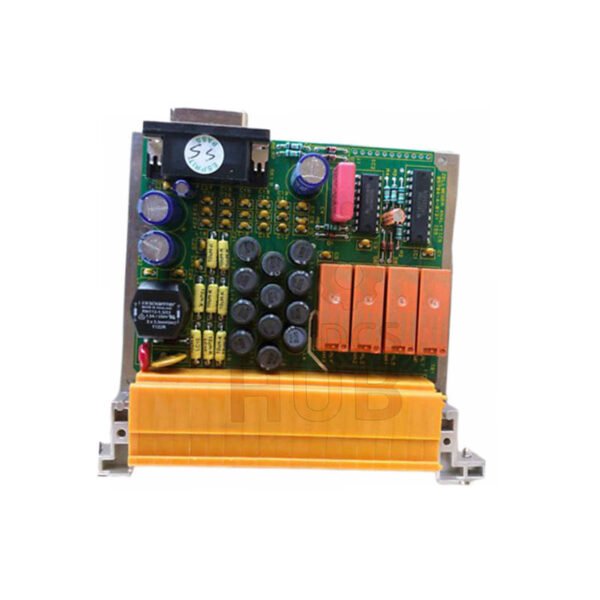

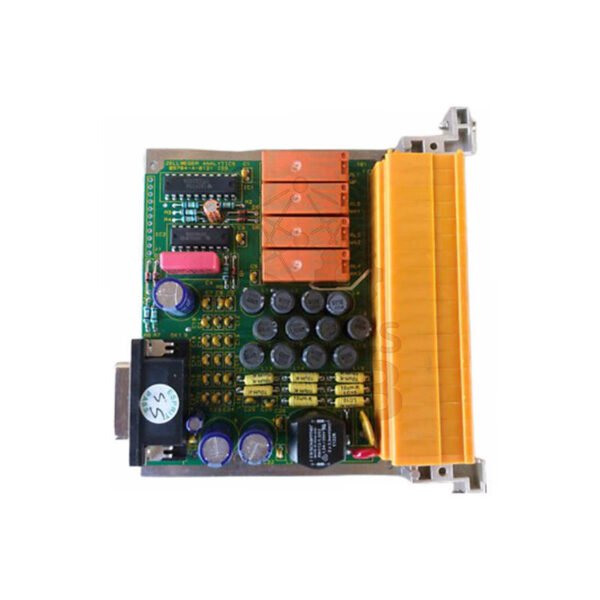

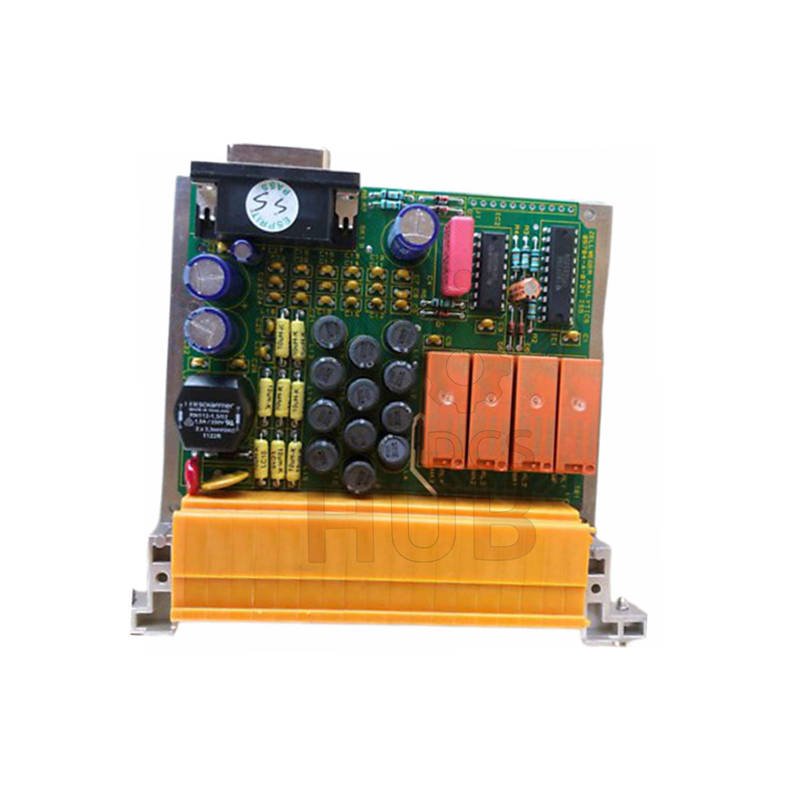

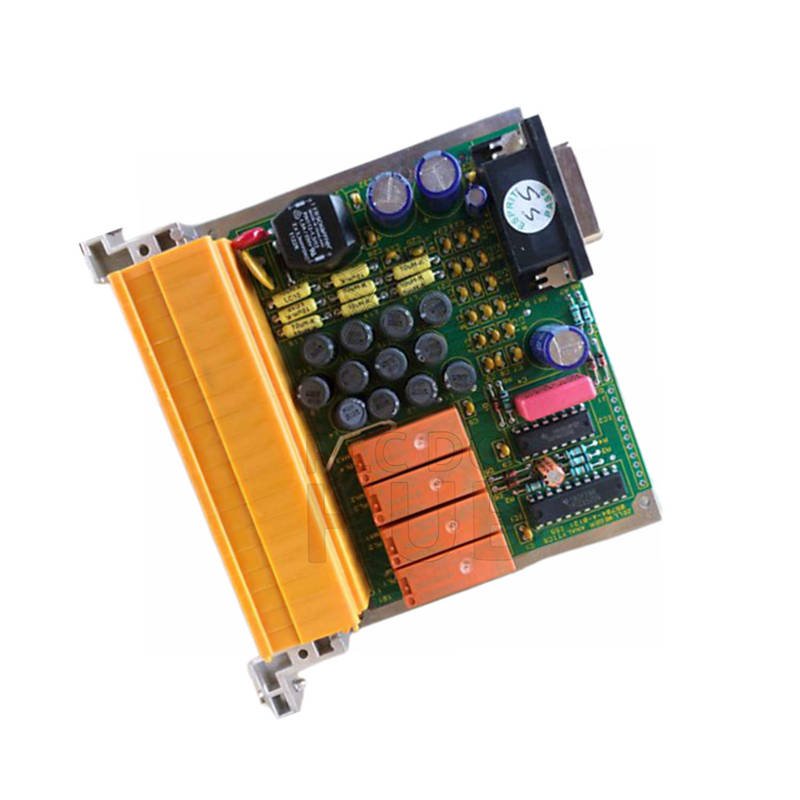

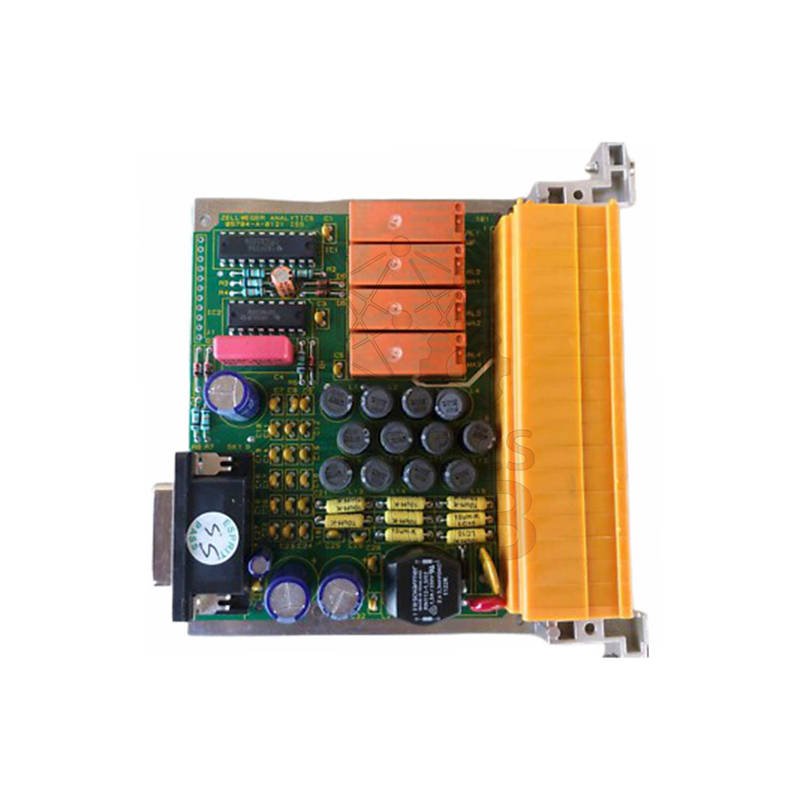

The Honeywell Sieger 05704-A-0121 is an output module. It has four built-in relays. This card switches power to external devices. It is strong and works in tough conditions. Perfect for control panels and automation.
Full Technical Specifications
- Brand & Model: Honeywell Sieger 05704-A-0121
- Product Type: Relay Output Interface Card.
- Output Channels: 4 relay channels.
- Relay Form: SPDT (Single Pole Double Throw).
- Contact Rating: 5 Amps at 30VDC or 250VAC.
- Max Switching Power: 1250 VA (AC), 150 W (DC).
- Electrical Endurance: >100,000 operations minimum.
- Mechanical Life: >10 million operations.
- Coil Control Voltage: Typically 24 VDC (system dependent).
- Isolation Resistance: >100 MΩ at 500 VDC.
- Operating Temperature: -40°C to +70°C (-40°F to 158°F).
- Vibration Resistance: Up to 2G operational.
- Connection Method: Plug-in terminal block.
- Mounting Style: Designed for system rack or chassis.
- Product Dimensions: 163 mm x 38 mm x 58 mm.
- Unit Weight: 0.35 kg.
Main Advantages
- High-Capacity Switching: Controls motors, heaters, and lamps directly.
- Extreme Environment Ready: Wide operating temperature range.
- Compact Multi-Channel: Four relays save panel space.
- Versatile Contact Type: SPDT allows for flexible circuit design.
- Proven Reliability: Built for long-term industrial use.
Support & Delivery
Your purchase includes a 12-month warranty. We ship fast using FedEx, UPS, and DHL worldwide.
Frequently Asked Questions
What can I connect to each relay output?
You can connect lights, small contactors, solenoid valves, or alarm horns. Ensure the load is under 5 Amps.
How do I wire the SPDT contacts?
Each relay has three terminals: Common (C), Normally Open (NO), and Normally Closed (NC). Connect your load between C and NO or NC.
What is a common failure cause?
Switching inductive loads without protection. Always use a flyback diode for DC coils or an RC snubber for AC loads.
Does this card need external power?
No. The relay coils are powered directly from the control system’s backplane or logic supply.
Is the Honeywell 05704-A-0121 a good spare part?
Yes. It is an exact replacement for this quad relay card in many Honeywell Sieger gas detection and control systems.
Simple Buying Guide
Choose the Honeywell Sieger 05704-A-0121 to add four robust control outputs. It is ideal for system upgrades or maintenance spares. Verify it fits your specific Honeywell chassis model.
