Description
Product Overview

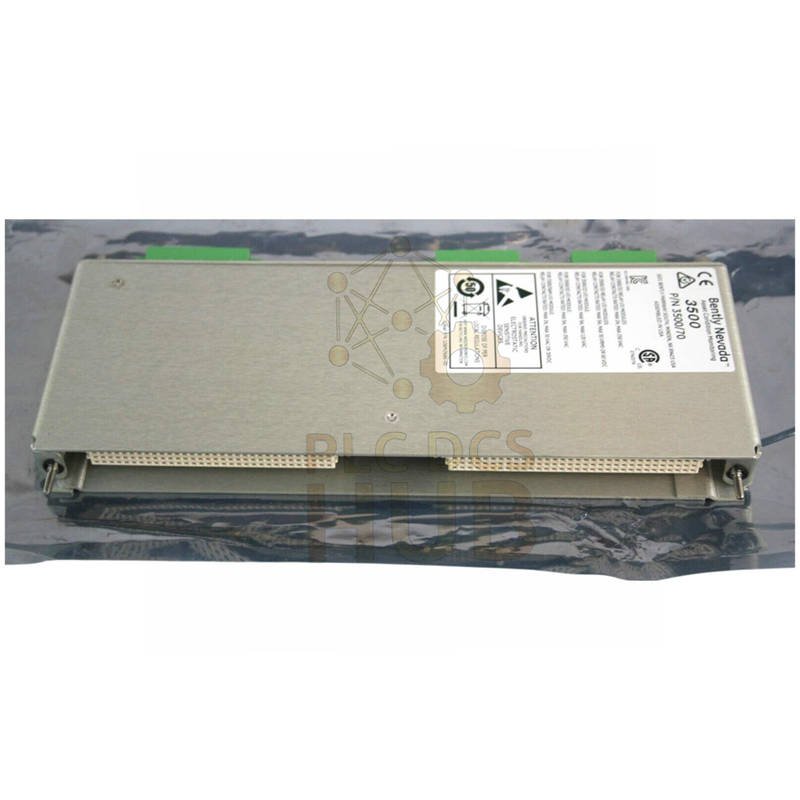

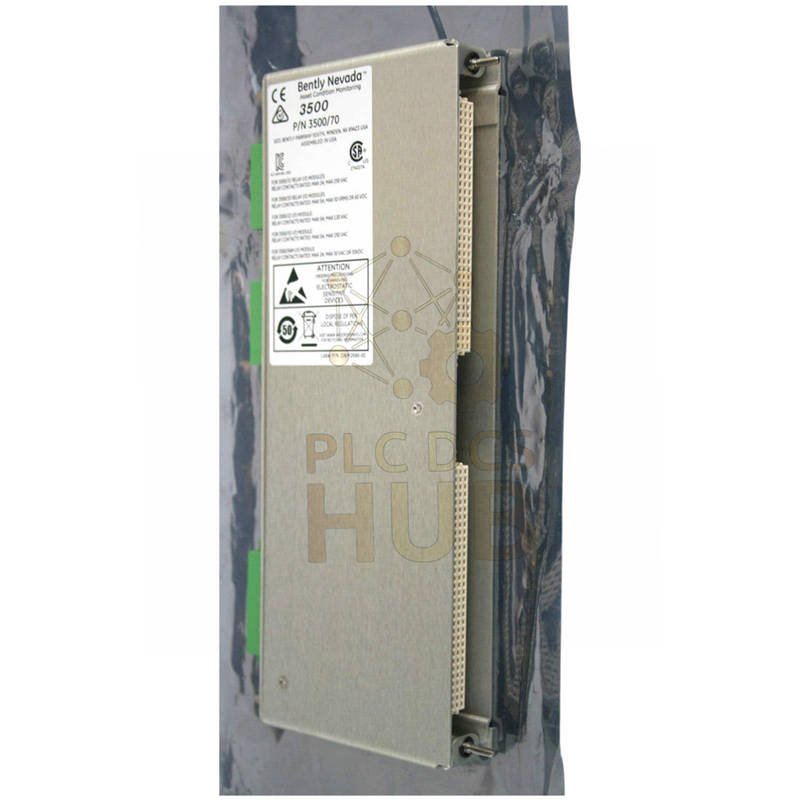

The Bently Nevada 3500/70 106M2686-00 monitor module is designed for stable signal monitoring.
It supports critical industrial control systems.
The module fits the 3500 Series architecture.
It delivers fast and accurate analog output.
- Brand: Bently Nevada
- Model: 3500/70 106M2686-00
- Series: 3500 Series
- Product Type: Monitor Module
- Country of Origin: USA
Core Selling Points
- Stable 4-20 mA signal output
- Fast response for real-time control
- High accuracy reduces false readings
- Wide temperature tolerance
- Strong electrical isolation
- Simple mounting options
Electrical and Signal Performance
- Power Supply: 24 VDC nominal
- Current Draw: 300 mA maximum
- Signal Type: 4-20 mA analog
- Response Time: 100 ms
- Input Impedance: 10 kΩ
- Accuracy: ±0.5% of full scale
- Resolution: High, suitable for trend analysis
- Signal Stability: Low noise output
Isolation and Protection
- Isolation Voltage: 500 V RMS
- Protects against ground loops
- Improves system safety
- Reduces electrical interference
Environmental Specifications
- Operating Temperature: -20°C to +70°C
- Humidity Range: 5% to 95% non-condensing
- Designed for harsh industrial sites
- Stable performance under load
Mechanical and Installation
- Mounting Type: DIN rail or panel mount
- Compact footprint
- Easy wiring access
- Fits standard control cabinets
System Compatibility
- Compatible with Bently Nevada 3500 racks
- Integrates with PLC and DCS systems
- Supports long-distance signal transmission
Typical Applications
- Rotating equipment monitoring
- Power generation systems
- Oil and gas facilities
- Industrial process control
- Condition-based maintenance
Packaging, Warranty, and Shipping
- Warranty: 12 months
- Factory-tested before shipment
- Anti-static industrial packaging
- Shipping: FedEx, UPS, DHL
Professional FAQ
Is this module suitable for continuous operation?
Yes. It is designed for 24/7 industrial use.
What signal length works best in practice?
4-20 mA works well over long cable runs.
Does isolation improve system reliability?
Yes. It protects against voltage spikes and noise.
How should buyers choose this model?
Select it when stable analog output is required.
What is a common installation tip?
Ensure proper grounding during panel mounting.
