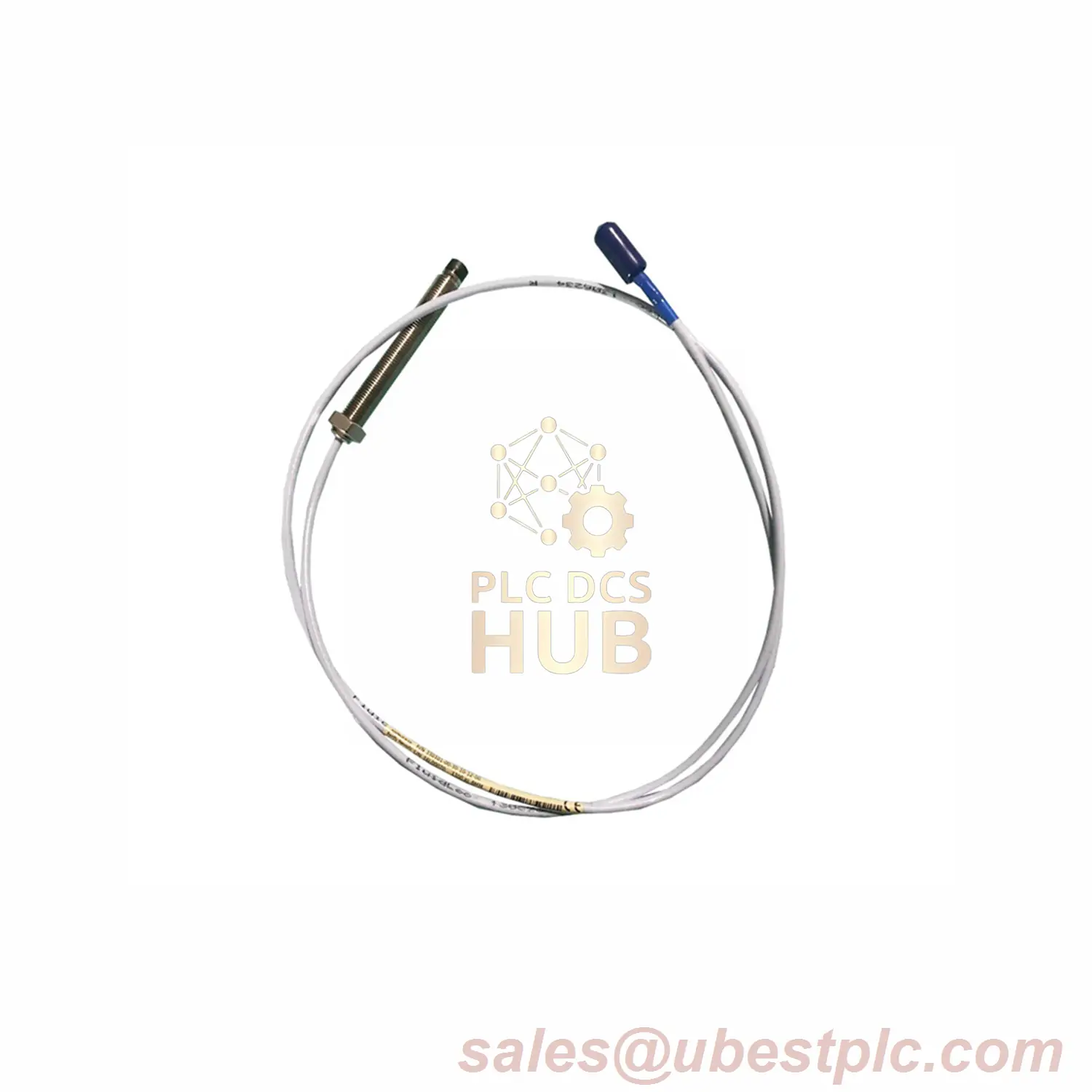

Bently Nevada 3300 XL FluidLoc Probe: 5m Armored Sensor
Oil-resistant proximity probe with armored cable for industrial monitoring. Get installation guide: [Download Now]
Product Configuration
[330702-00-10-50-12-05] │ ├── 330702 = 3300 XL 11mm Armored Probe ├── 00 = 0" Unthreaded Length ├── 10 = 1.0" Case Length ├── 50 = 5.0m Cable ├── 12 = FluidLoc + Mini ClickLoc └── 05 = Multiple Approvals
Technical Specifications
- Thread Size: 1/2-20 UNF
- Max Torque: 400 in-lb
- Oil Resistance: 0% absorption
- Resistance: 7.2Ω ±0.8Ω
- Weight: 0.17kg (0.37lb)
- Seal Material: Viton O-ring
Installation Guide
- For use with 5m Proximitor only
- Recommended torque: 133 in-lb
- Min bend radius: 1.0″ (25.4mm)
- Keep above 30°F during install
Shipping & Support
- ⏱️ Ships same day from USA
- ???? FedEx/UPS/DHL options
- ???? 12-month full warranty
Technical FAQ
- Q: How does FluidLoc work?
A: Special barrier blocks oil capillary action - Q: Can I use in submerged applications?
A: Yes – resists oil immersion - Q: Compatible with all oils?
A: Works with most industrial lubricants - Q: Minimum installation temp?
A: 30°F to protect O-ring seal - Q: Warranty covers oil exposure?
A> Yes – FluidLoc failures covered
Note: For oil resistance data and installation videos: [Download FluidLoc Kit]
