Description

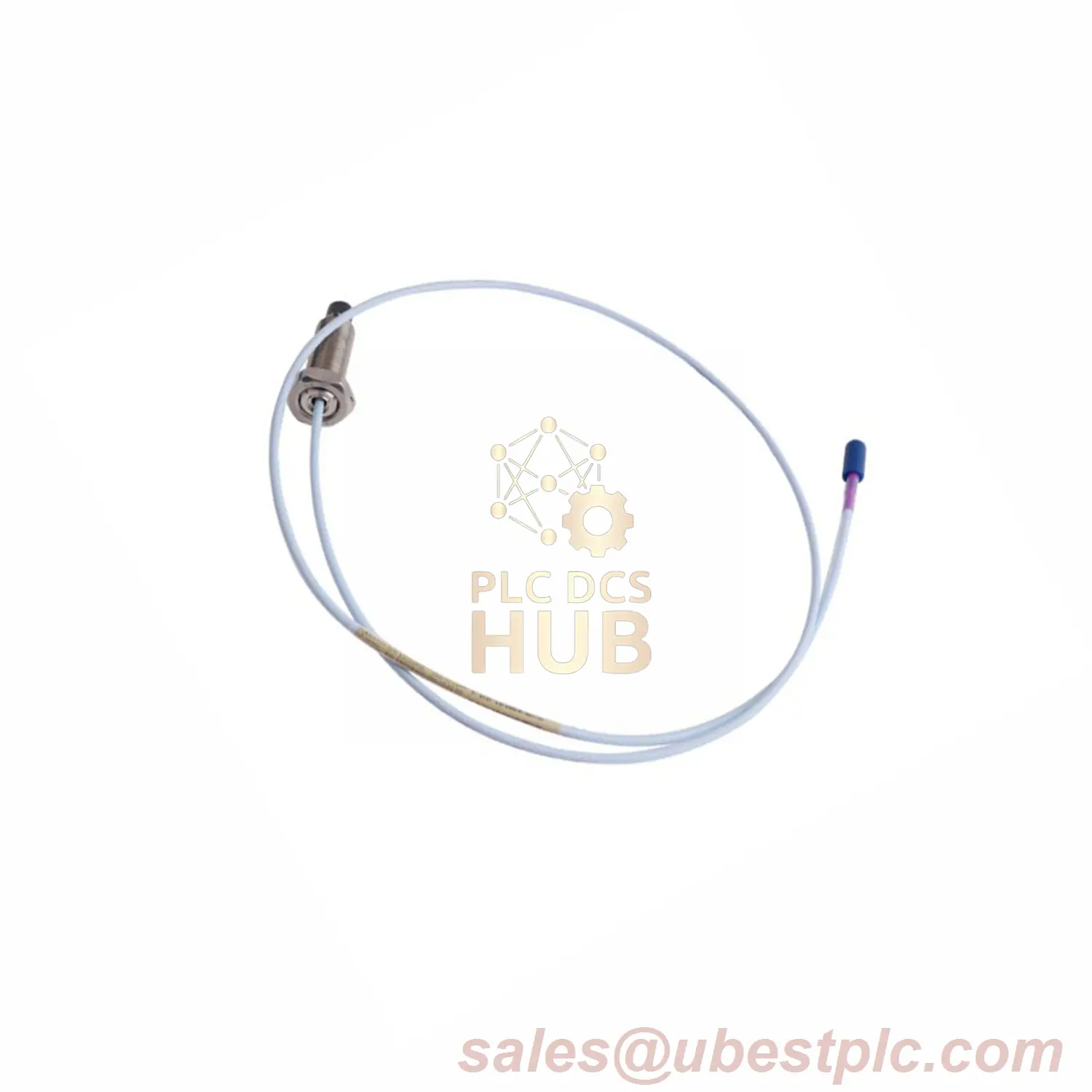

Bently Nevada 330702-00-10-90-01-00: Industrial Proximity Probe
9-meter armored proximity probe with miniature connector for precise machinery monitoring. Made in USA for reliable performance.
Product Code Explained
- ⚙️ 330702: XL 11mm armored probe
- ???? 00: 0.0″ unthreaded length
- ???? 10: 1.0″ case length
- ???? 90: 9.0 meter total length
- ???? 01: Mini ClickLoc + protector
- ???? 00: No agency approvals required
Technical Details
- Electrical:
- Resistance: 8.5Ω ±1.1Ω
- 75Ω triaxial design
- Mechanical:
- Max torque: 45.2 N•m
- Recommended torque: 15.2 N•m
- Min bend radius: 25.4mm
- Materials:
- PPS probe tip
- AISI 304 stainless case
Durability Features
- Stainless steel armored cable
- Viton O-ring pressure seal
- FEP insulated triaxial cable
- Connector protector included
Installation Guide
- 1/2-20 UNF thread pattern
- 0.75″ max thread engagement
- Finger-tight connector torque
- Avoid temperatures below -34°C
Shipping & Support
- 12-month warranty
- Global shipping: FedEx/UPS/DHL
- Includes: Connector protector, documentation
Expert Questions
- Q: What’s the difference between 01 and 11 options?
A: 01 has standard cable, 11 has FluidLoc - Q: Can I use in high-pressure applications?
A: Contact for custom pressure testing - Q: Is the armor waterproof?
A: Provides moisture resistance but not submersible - Q: Replacement connector availability?
A: Available through authorized distributors - Q: Minimum operating temperature?
A: -34°C to prevent seal damage
