Description

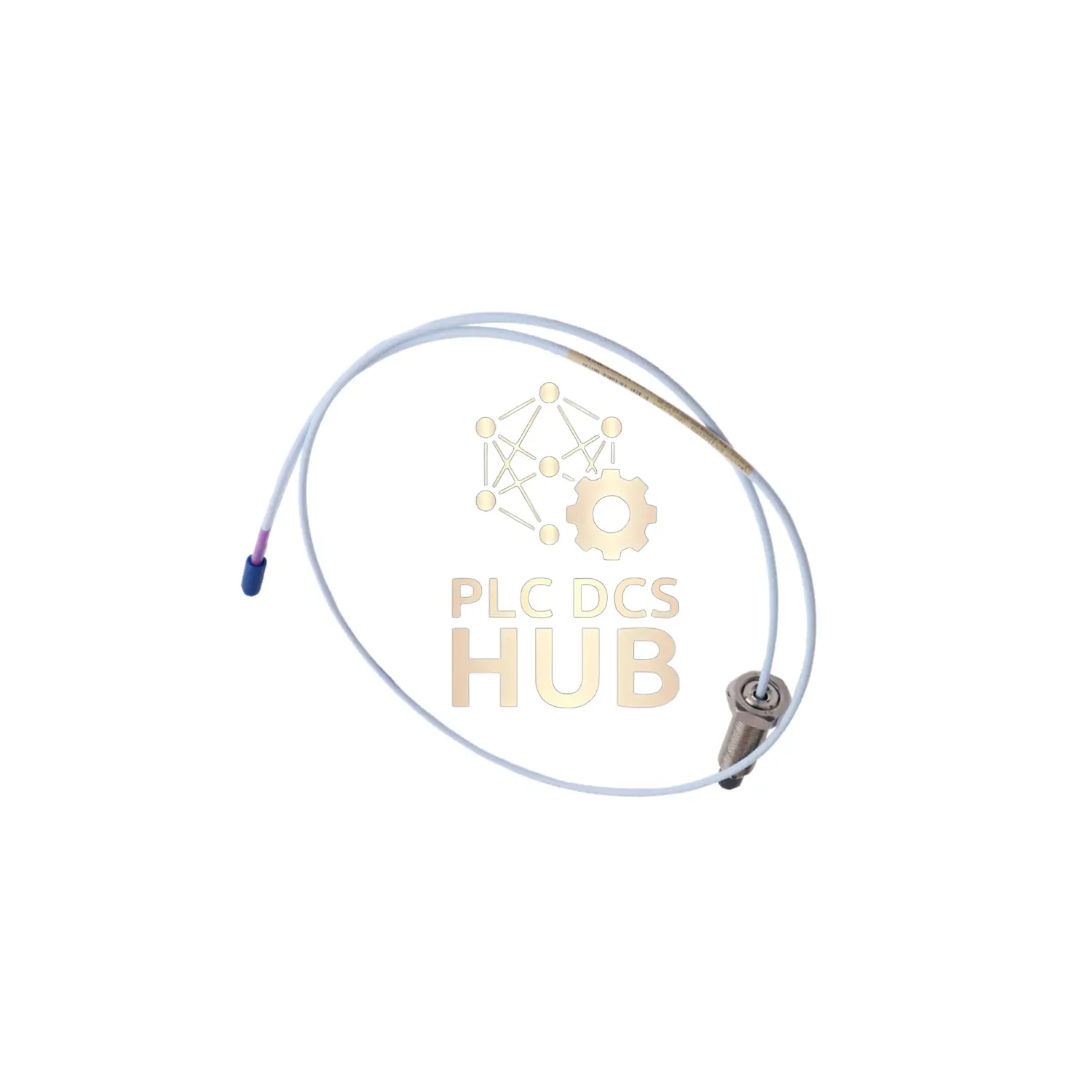

Bently Nevada 3300 XL Proximity Probe 330702-00-10-90-01-05 – 9m Certified Sensor
Technical Specifications
| Model | 330702-00-10-90-01-05 |
| Length | 9.0m (29.5ft) |
| Resistance | 8.5Ω ±1.1Ω |
| Temperature Range | -51°C to +177°C |
| Thread Size | ½-20 UNF |
| Bend Radius | 25.4mm (1.0in) |
Part Number Decoder
330702
Base Model
00
0″ Unthreaded
10
1.0″ Case
90
9.0m Cable
01
ClickLoc Connector
05
Multiple Approvals
Product Highlights
- PPS tip material for long service life
- Stainless steel armored construction
- Gold-plated ClickLoc connectors
- Viton O-ring pressure seal
- Lightweight at only 0.17kg
Installation Guide
- Recommended torque: 15.2 N•m
- Minimum bend radius: 25.4mm
- Keep above -34°C for seal integrity
- Use with matching 9m Proximitor
Shipping & Support
- Fast global delivery: FedEx/UPS/DHL
- 12-month warranty
- Includes protective connector cover
Expert Questions
- Q: What certifications does it have?
A: Multiple international approvals (05 suffix) - Q: Can I use this outdoors?
A: Yes, rated for -51°C to +177°C - Q: Is the cable oil-resistant?
A: Yes, FEP insulation resists oils - Q: What’s the thread engagement?
A> 0.750″ maximum - Q: Can I cut the cable shorter?
A: No, will affect performance
Get Complete Documentation
- Installation manual
- Certification documents
- Technical specifications
