Description

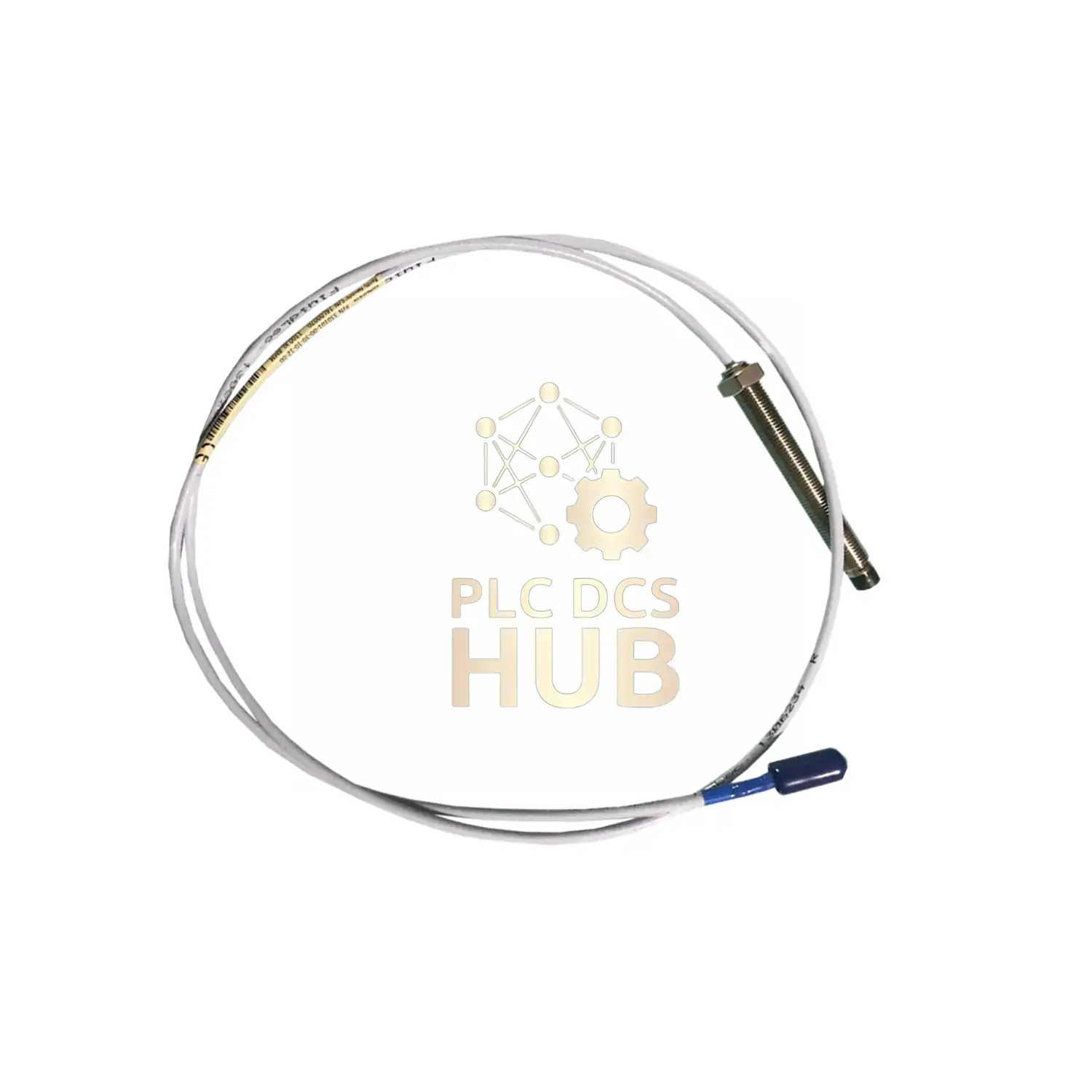

Bently Nevada 3300 XL 11mm Proximity Probe – Precision Vibration Monitoring
Industrial-grade vibration sensor for machinery health diagnostics. Made in USA with global certifications available.
Technical Data
- Brand: Bently Nevada
- Model: 3300 XL 11mm Proximity Probe
- Full Part No.: 330702-00-30-10-02-00
- 00: 0″ unthreaded length
- 30: 3.0″ case length
- 10: 1.0m cable (3.3 ft)
- 02: ClickLoc connector
- 00: No agency approval
- Electrical: 5.9Ω ±0.5 resistance (center to outer conductor)
- Temp Range: -51°C to +177°C (-60°F to +351°F)
- Cable: 75Ω triaxial FEP-armored
- Thread: 1/2-20 UNF (0.75″ max engagement)
- Torque: 15.2 N·m recommended (45.2 N·m max)
Installation Guide
- Mount with 1/2-20 UNF thread
- Apply maximum 15.2 N·m torque
- Maintain 25.4mm bend radius
- Connectors: Finger-tighten (max 0.565 N·m)
Key Features
- ▶︎ 12-month warranty
- ▶︎ FEP-armored cable resists chemicals/abrasion
- ▶︎ Sealed for differential pressure applications
- ▶︎ Compatible with 3300 monitoring systems
Shipping & Packaging
- FedEx/UPS/DHL global express
- Includes probe
- Weight: 0.17 kg
FAQ
- Q: Pressure rating?
A: Contact for custom pressure testing - Q: Min operating temp?
A: Avoid below -34°C to prevent seal damage - Q: Cable alternatives?
A: Available in 1m/5m/9m lengths
