Description

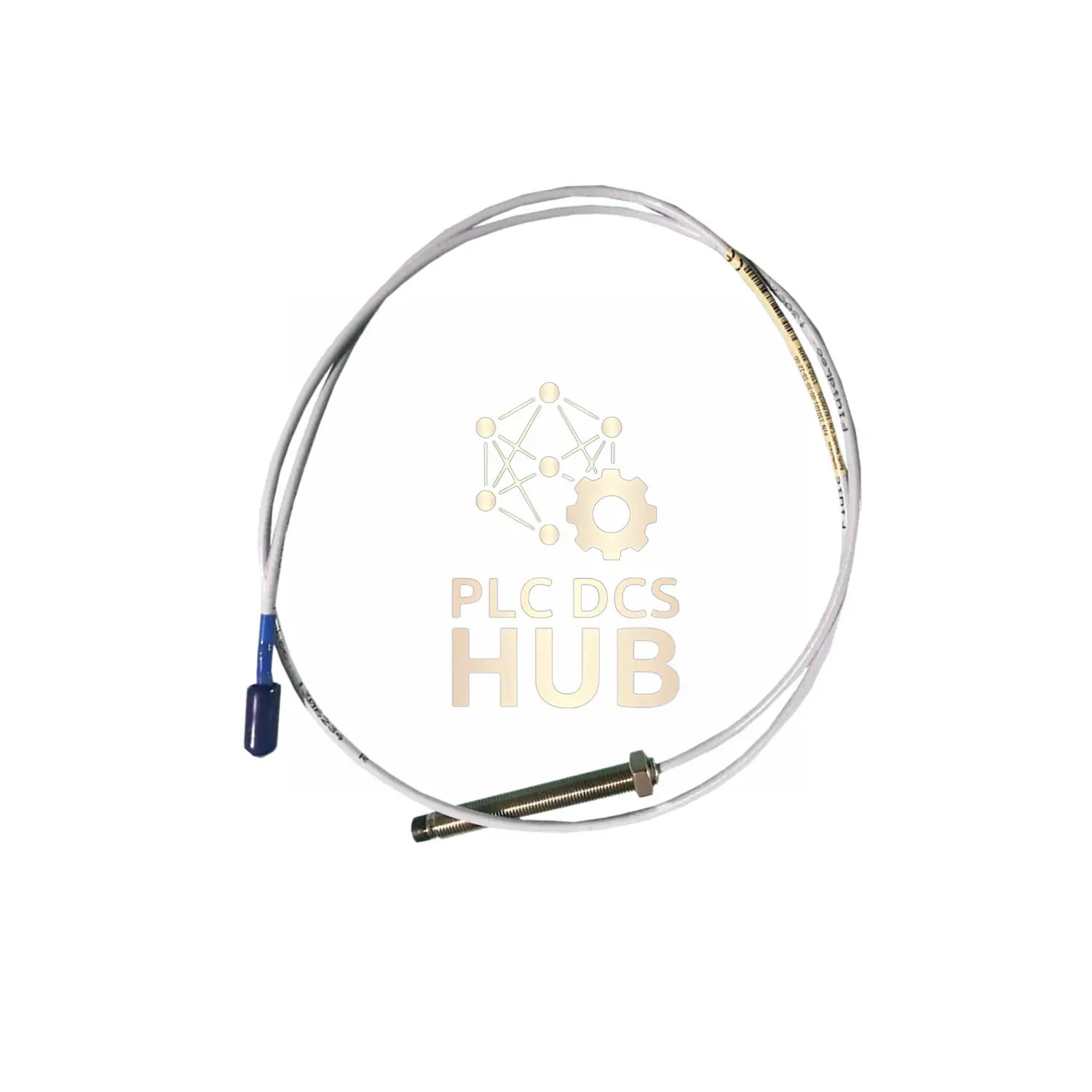

Bently Nevada 3300 XL 11mm Probe (330702-00-10-50-11-05)
Professional-grade vibration sensor with 5m FluidLoc® cable and multiple international approvals. Operates in -51°C to +177°C extremes. Includes 12-month warranty. Ships via FedEx/UPS/DHL.
Technical Specifications
- Complete Part No.: 330702-00-10-50-11-05
- Configuration Code:
- 00: Zero unthreaded length
- 10: 1.0″ case size
- 50: 5.0m cable (16.4ft)
- 11: FluidLoc® + Mini ClickLoc®
- 05: Multiple agency approvals
- Electrical: 7.2Ω ±0.8Ω center-to-outer resistance
- Temperature: -51°C to +177°C operational
- Thread: 1/2-20 UNF (0.75″ max depth)
- Installation Torque: 15.2 N•m (133 in-lb) recommended
- Cable Specs: 75Ω triaxial FEP, 25.4mm min bend
- Weight: Only 0.17kg (0.37 lbs)
Installation Notes
- For 5m Proximitor systems only
- Finger-tight connector installation (max 0.565 N•m)
- Keep above -34°C to maintain seal integrity
Package Contents
- 11mm vibration probe
- 5m armored FluidLoc® cable
- Connector protector caps
- 1-year warranty
Common Questions
- What approvals does it have?
- Multiple international certifications (see -05 suffix)
- Can I use in chemical plants?
- Yes, FEP cable resists chemicals
- Is calibration required?
- No, factory pre-calibrated
- How durable is the cable?
- Armored design withstands industrial use
- What’s the warranty period?
- Full 12 months from shipment
