Description

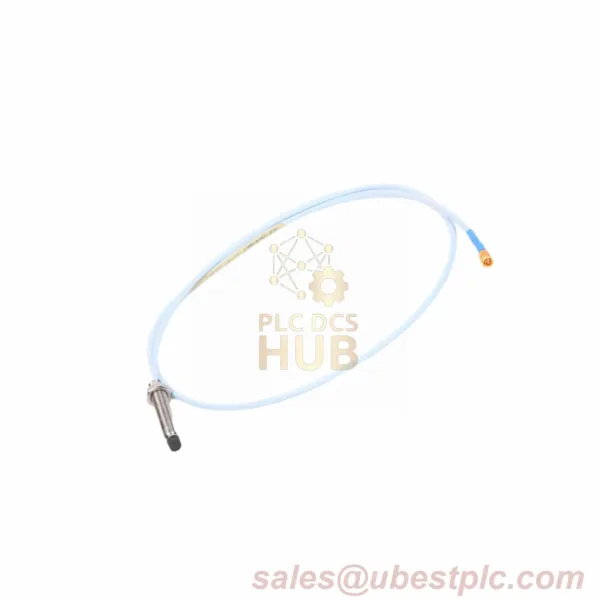

Bently Nevada 3300 XL Vibration Sensor: Heavy-Duty Machinery Protection
Industrial-Grade Monitoring Solution
Precision 11mm vibration probe with 5/8-18 UNF threaded case. Features PPS tip and stainless steel body for harsh environments. Includes connector protector for reliable connections. Perfect for predictive maintenance in power plants and manufacturing.
Key Technical Specifications
- Model: Bently Nevada 330707-00-62-10-01-00
- Cable: 1.0m FEP-insulated triaxial (75Ω)
- Case Length: 6.2 inches
- Temp Range: -52°C to +177°C
- Resistance: 5.9Ω ±0.5 at 25°C
- Thread: 5/8-18 UNF
- Max Torque: 45.2 N•m (400 in•lb)
- Min Bend Radius: 25.4mm
Installation Made Simple
- Hand-tighten connectors (max 0.565 N•m)
- Apply 15.2 N•m torque to case
- Max thread engagement: 0.938″
- Keep above -34°C during install
Real-World Applications
- Power Generation: Detects turbine blade vibration at 3000 RPM
- Paper Mills: Monitors roller bearings in high-moisture areas
- Oil Refineries: Tracks pump shaft movement in explosive zones
- Steel Plants: Survives near forging hammers at 150°C ambient
Package & Delivery
- Single probe unit (0.17kg)
- Global shipping: FedEx/UPS/DHL
- 12-month quality guarantee
Common Questions
Q: Can this monitor gearbox vibrations?
A: Yes, ideal for gear mesh monitoring up to 10kHz
Q: Waterproof rating?
A: Sealed against splashes but not submersible
Q: Works with older monitors?
A: Compatible with 3300/3500 systems
Q: Lead time for 5m version?
A: Special order, 2-3 weeks production
