330707-00-24-50-11-00 Bently Nevada 11 mm Probe Buy Now

Description

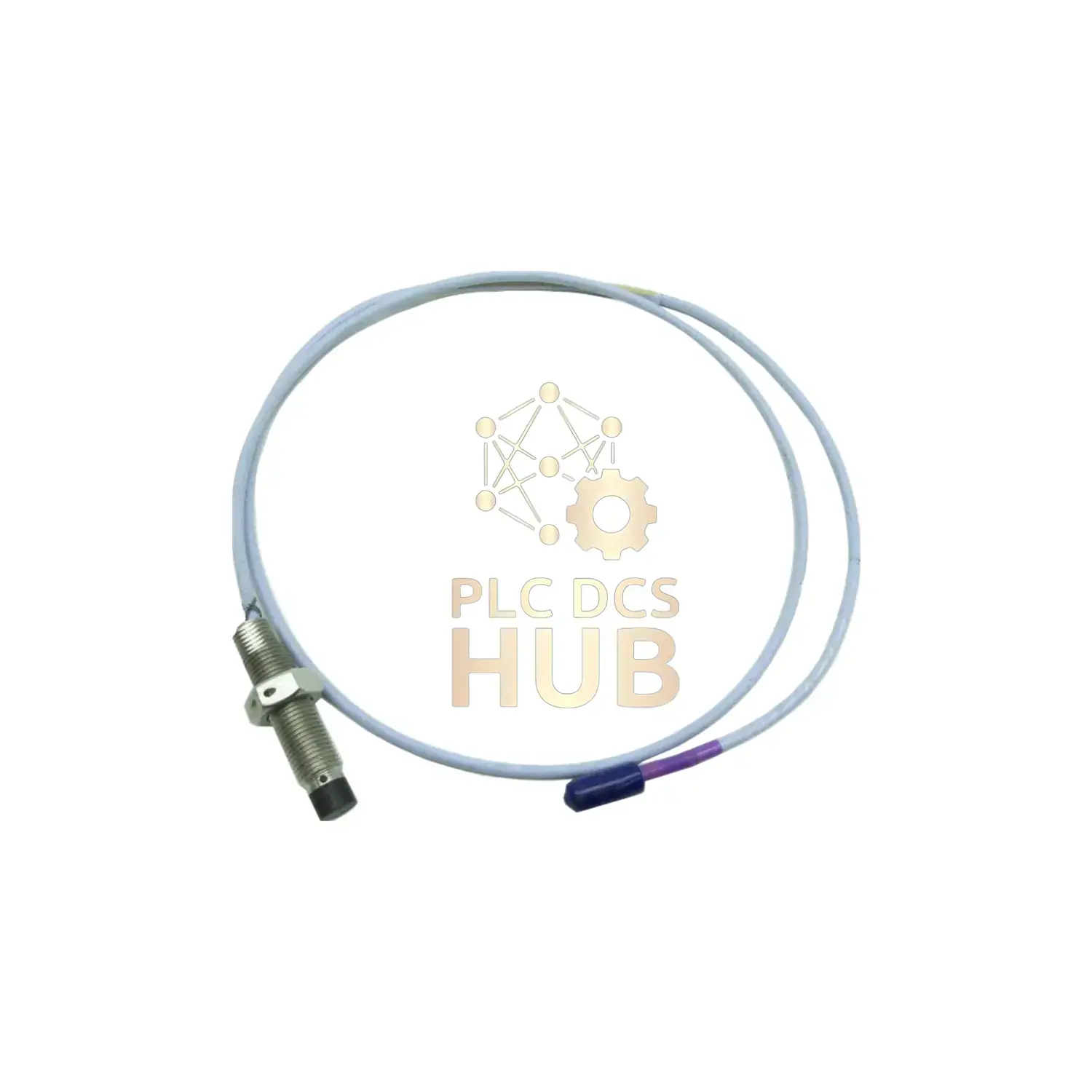

Bently Nevada 3300 XL 11mm Proximity Probe: Precision Vibration Monitoring

Industrial-grade sensor for critical machinery health analysis. Features PPS tip and stainless steel armor for extreme conditions. Download the manual for installation details.

Technical Data

• Brand: Bently Nevada
• Model: 3300 XL 11mm Proximity Probe
• Full P/N: 330707-00-24-50-11-00
• Suffix Breakdown:
  • 00: 0″ unthreaded length
  • 24: 2.4″ case length
  • 50: 5.0m cable (16.4 ft)
  • 11: Mini ClickLoc + FluidLoc cable
  • 00: No agency approval
• Probe Resistance: 7.2Ω ±0.8Ω
• Cable Type: 75Ω triaxial FEP
• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 SST

Installation Guide

• Thread: 1/2-20 UNF
• Max Engagement: 0.750 in (19mm)
• Torque: 15.2 N•m (recommended) / 45.2 N•m (max)
• Bend Radius: >25.4mm (1.0 in)
• Connector Torque: Finger tight + max 0.565 N•m

Compatibility Notes

• ⚡ Requires 5-meter Proximitor only
• ⚠️ Not compatible with 1m/9m interface systems

Certifications & Shipping

• ???? Package Includes: Probe, connector protector
• ⚖️ Shipping Weight: 0.17 kg
• ???? Global Delivery: FedEx, UPS, DHL

FAQ

• Q: Pressure rating?
  A: Seals differential pressure (contact for custom testing)
• Q: Minimum operating temp?
  A: -34°C (-30°F) to preserve seal integrity
• Q: Cable replacement possible?
  A: No – cable is permanently integrated

???? Need installation help? Download the full manual here
