Description

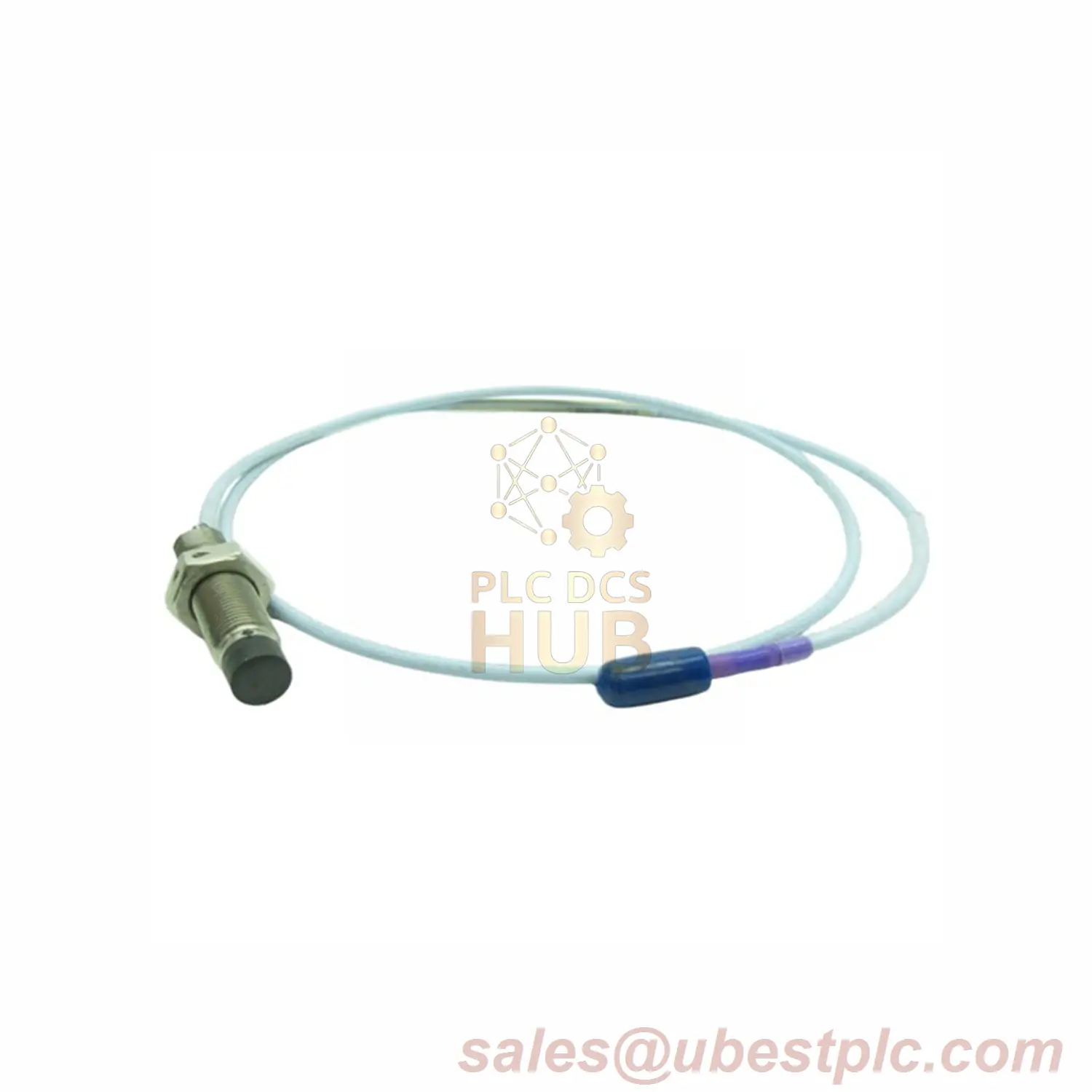

Bently Nevada 3300 XL 11mm Proximity Probe – Precision Vibration Monitoring
Professional-grade 3300 XL probe for industrial vibration measurement. Made in USA. 12-month warranty included.
Product Description
This Bently Nevada 330707-00-24-50-01-00 proximity probe delivers reliable vibration monitoring for industrial machinery. Featuring 11mm sensing diameter and 5-meter armored cable, it’s engineered for harsh environments with wide temperature tolerance.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 11mm Proximity Probe
- Full Suffix: 330707-00-24-50-01-00
- Measurement Range: 11mm sensing diameter
- Probe Resistance: 7.2Ω ±0.8Ω (5m cable)
- Temperature Range: -51°C to +177°C (avoid below -34°C)
- Cable Length: 5.0 meters (16.4 ft)
- Connector: Miniature coaxial ClickLoc with protector
- Cable Type: 75Ω triaxial with FEP insulation
- Thread: 1/2-20 UNF (Max engagement: 0.75 in)
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
Installation Guide
- Recommended Torque: 15.2 N•m (133 in•lb)
- Maximum Torque: 45.2 N•m (400 in•lb)
- Connector Torque: Finger tight (max 0.565 N•m)
- Minimum Bend Radius: 25.4mm (1.0 in)
- Do not expose below -34°C to preserve seal integrity
Compatibility Notes
Designed specifically for use with 5-meter Proximitor® sensors. Not compatible with 1m or 9m sensor systems.
Certifications & Standards
Agency approvals not required. Certificate of Origin (COO) available on request. Complies with industrial vibration monitoring standards.
Packaging & Warranty
- 1x 3300 XL Probe with connector protector
- Shipping Weight: 0.17 kg
- 12-month manufacturer warranty
Global Shipping
Fast worldwide delivery via FedEx, UPS, and DHL. Tracking provided for all orders.
Frequently Asked Questions
- Q: Is pressure testing included?
A: Probes ship without pressure testing. Contact us for custom testing. - Q: Can I use this with 1m cables?
A: No, this 330707-00-24-50-01-00 model requires 5m Proximitor® systems. - Q: What’s the lead time?
A: Standard orders ship within 2 business days.
