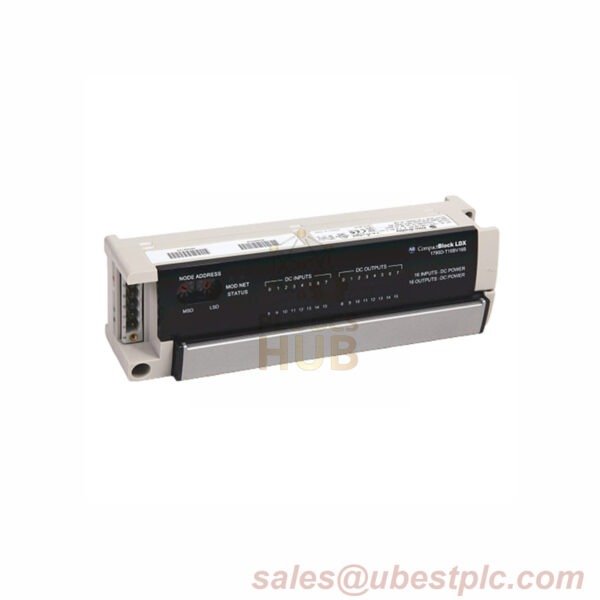

The Allen-Bradley 1790D-T16BV16B CompactBlock LDX is a versatile 32-point base block designed for industrial automation applications. It operates efficiently within a temperature range from 0 to 55 °C (32 to 131 °F) and has a compact design to integrate easily into tight spaces. The device offers reliable performance under varying environmental conditions, making it ideal for use in control systems requiring a rugged and durable I/O solution.
Technical Data
| Feature | Specification |
|---|---|
| Brand | Allen-Bradley / Rockwell Automation |
| Model | 1790D-T16BV16B |
| Series | CompactBlock LDX |
| Type | 32-Point Base Block |
| Input Voltage Range | 10-30 VDC |
| Current Draw | 130 mA at 24 VDC |
| Operating Temperature | 0 to 55 °C (32 to 131 °F) |
| Relative Humidity | 5 to 90% (noncondensing) |
| Operating Altitude | 2000 m |
| Vibration | 5g at 10 to 500 Hz |
| ESD Immunity | 8 kV air discharges (IEC 61000-4-2) |
| Enclosure Rating | None (open style) |
| Weight | 0.3 lb (0.1 kg) |
| Shock Tolerance | 30g operational |
| Thermal Dissipation | 2.2 W |
