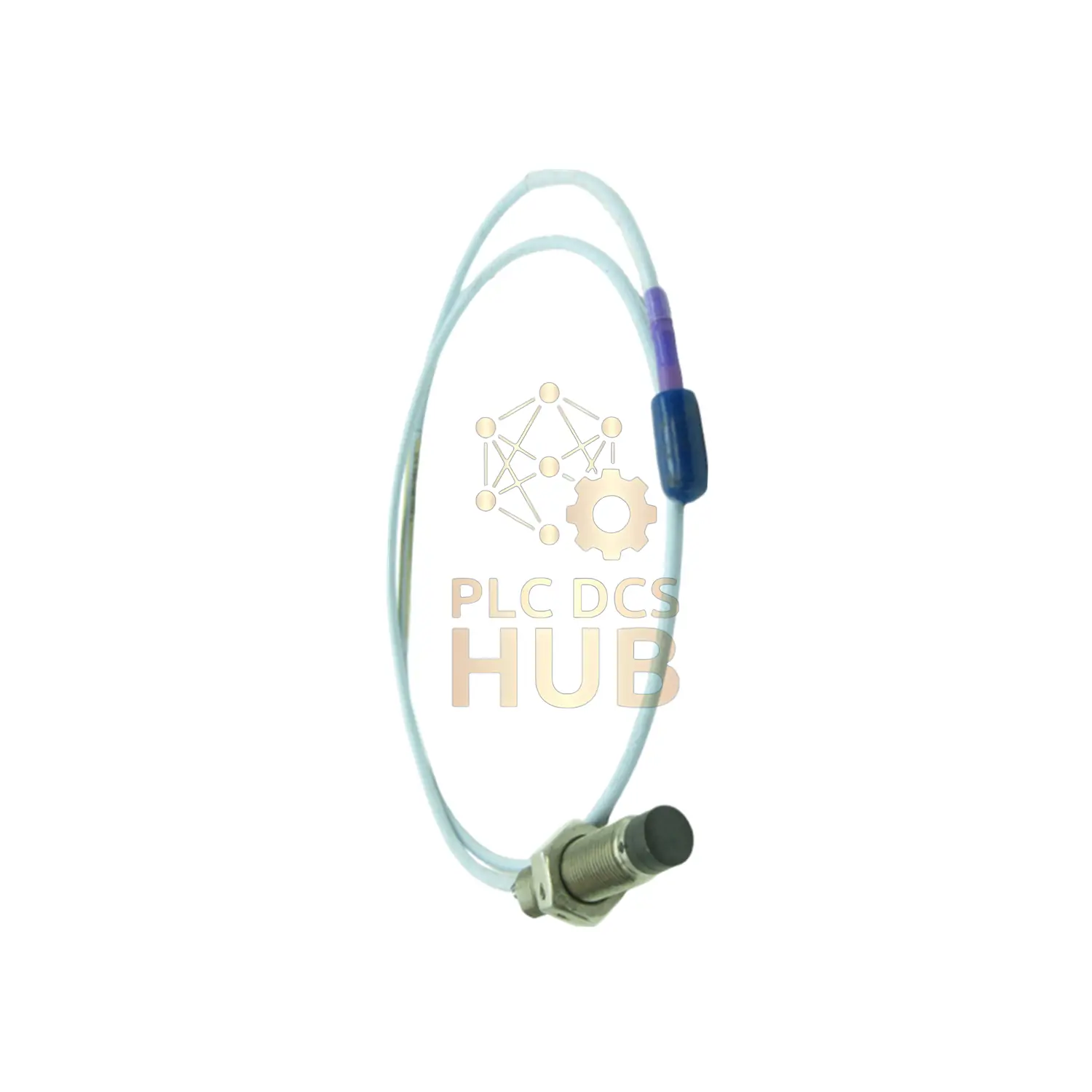

Bently Nevada 3300 XL Proximity Probe: Precision Vibration Monitoring
Professional-grade 11mm proximity probe for industrial machinery health monitoring. Made in USA with global certifications.
Key Features
- 11mm sensing tip with PPS material for wear resistance
- 9.0 meter cable (29.5 ft) with FluidLoc protection
- Stainless steel case (AISI 304) with 5/8-18 UNF thread
- Wide temperature range: -51°C to +177°C
- Pressure seal with Viton O-ring
Technical Specifications
- Brand: Bently Nevada
- Full Model: 330707-00-24-90-12-05
- Cable Length: 9.0 meters (29.5 ft)
- Resistance: 8.5 ± 1.1 ohms
- Connector: Miniature coaxial ClickLoc
- Cable Type: 75 Ω triaxial FEP
- Case Length: 2.4 in (61mm)
- Weight: 0.17 kg
Installation Guide
- Max thread engagement: 0.938 in (24mm)
- Recommended torque: 15.2 N•m (133 in•lb)
- Max connector torque: 0.565 N•m (5 in•lb)
- Minimum bend radius: 25.4 mm (1.0 in)
Compatibility & Certifications
- Works with all 3300 XL monitoring systems
- Multiple agency approvals (Option 05)
- Certificate of Origin (COO) available
What’s Included
- 1x Proximity probe 330707-00-24-90-12-05
- 12-month manufacturer warranty
Shipping & Delivery
Global express shipping via FedEx, UPS or DHL. Usually ships within 24hrs.
Frequently Asked Questions
- Q: Minimum operating temperature?
A: -34°C (-30°F) to prevent seal damage - Q: Pressure rating?
A: Contact us for custom pressure testing - Q: Cable armor option?
A: This model comes without armor
