Description

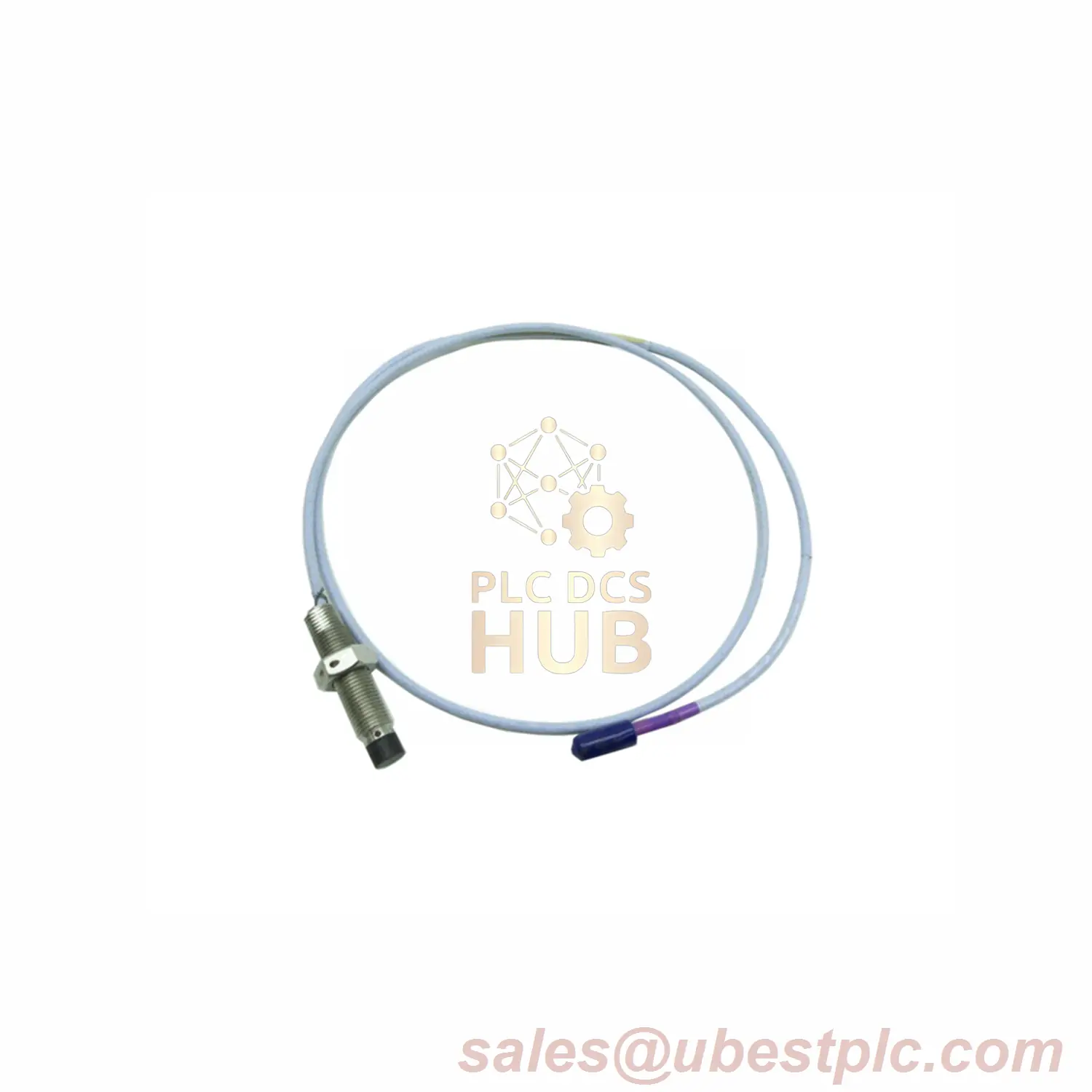

Bently Nevada 3300 XL 11mm Proximity Probe – Precision Vibration Monitoring
Industrial-grade vibration sensor for critical machinery health checks. Made in USA with Viton sealing. Works only with 5-meter Proximitor® systems.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 11mm Probe
- Full Product No: 330707-00-24-50-12-00
- Resistance: 7.2Ω ±0.8Ω (center to outer conductor)
- Temperature Range: -52°C to +177°C (-62°F to +351°F)
- Cable Length: 5.0 meters (16.4 feet)
- Cable Type: 75Ω triaxial with FEP insulation
Installation Guide
- Thread: 1/2-20 UNF (Max engagement: 0.750 inch)
- Case Torque: Max 45.2 N•m / Recommended 15.2 N•m
- Bend Radius: Minimum 25.4mm (1.0 inch)
- Warning: Avoid temperatures below -34°C (-30°F) to protect seal
Compatibility & Certifications
- Requires: 5-meter Proximitor® Sensor
- Agency Approvals: Not required (Option 00)
- COO: Certificate of Origin available
Packaging & Support
- Contents: 1x Probe with ClickLoc connector
- Shipping Weight: 0.17 kg (0.37 lbs)
- Carriers: FedEx, UPS, DHL
- Warranty: 12 months
Frequently Asked Questions
- Q: Can I use different cable lengths?
A: No – designed exclusively for 5m systems - Q: Is pressure testing included?
A: Available through custom design department - Q: Minimum safe temperature?
A: -34°C to prevent seal damage
Resources
Download complete documentation:
