Description

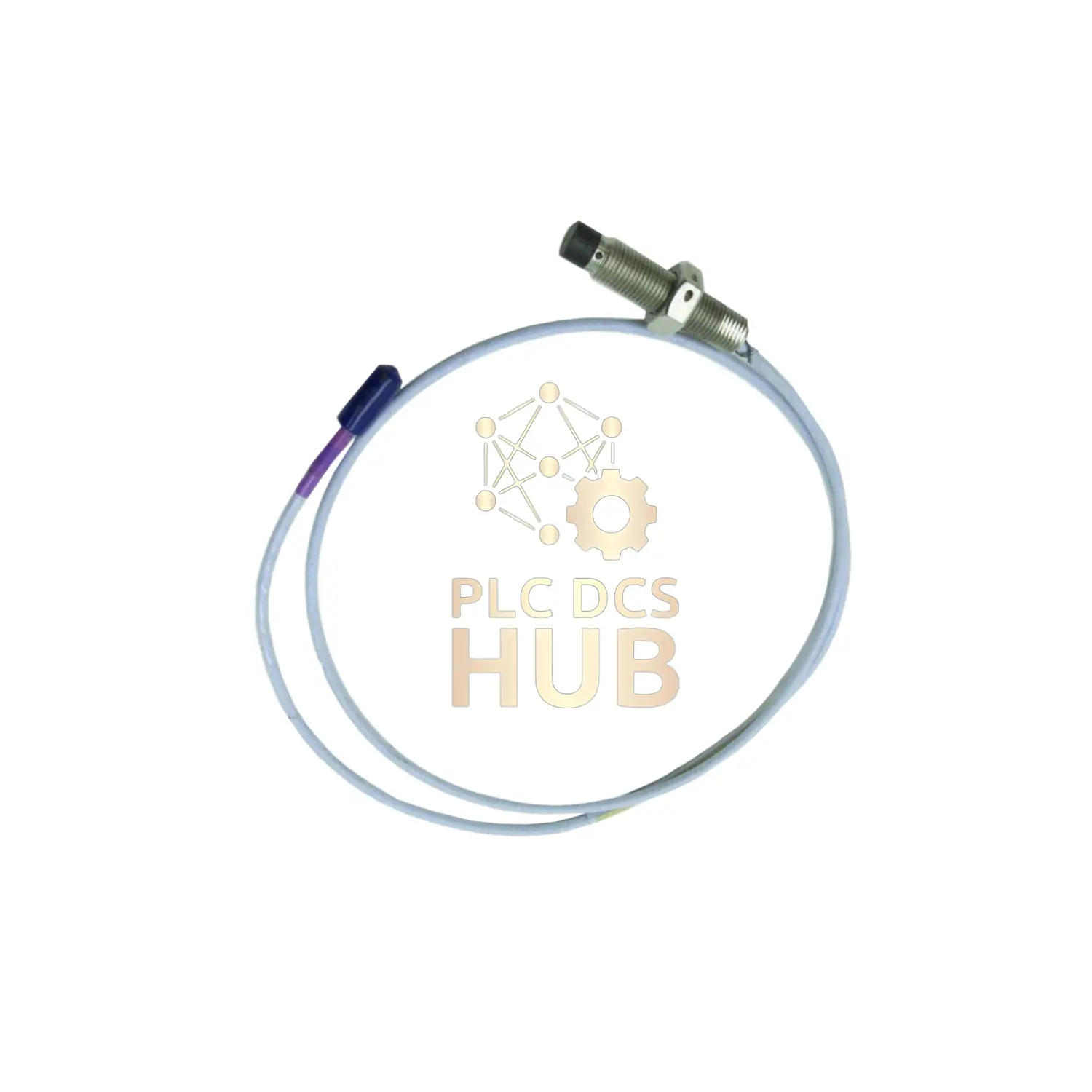

Bently Nevada 3300 XL 9M Proximity Probe (Model: 330707-00-24-90-11-00)
Industrial-grade vibration sensor with extra-long 9-meter cable for hard-to-reach machinery. Made in USA with high-temperature materials. Download the installation guide for setup help.
Product Identification
- Brand: Bently Nevada
- Type: 3300 XL 11mm Proximity Probe
- Full Model: 330707-00-24-90-11-00
- 330707: Base model
- 00: No unthreaded section
- 24: 2.4-inch case
- 90: 9.0 meter cable
- 11: ClickLoc connector
- 00: Standard approvals
Technical Measurements
- Cable Length: 9.0 meters (29.5 feet)
- Electrical Resistance: 8.5Ω ±1.1Ω
- Cable Type: 75Ω triaxial with FEP insulation
- Thread Size: 5/8-18 UNF
- Max Thread Depth: 0.938 inches
- Bend Radius: Minimum 1.0 inch
- Shipping Weight: 0.17 kg
Installation Notes
- Optimal Torque: 15.2 N•m (133 in-lb)
- Max Torque: 45.2 N•m (400 in-lb)
- Connector Tightness: Hand-tight only
- Seal Warning: Avoid below -34°C (-30°F)
Compatibility
- Requires 9-meter Proximitor systems
- Not for 1m or 5m interface units
- Works with FluidLoc-compatible gear
Included Items
- Probe with 9m cable
- ClickLoc connector protector
- Shipped via FedEx/UPS/DHL
Common Questions
- Q: Can this probe measure pressure?
A: No, it detects vibration only - Q: Is the cable waterproof?
A: Yes, FluidLoc cable resists fluids - Q: What maintenance is needed?
A: Check O-ring seal yearly - Q: Can I cut the cable shorter?
A: No, cutting damages the probe - Q: How long does shipping take?
A: Usually 2-5 days worldwide
Get expert setup advice: Download Probe Manual Here
