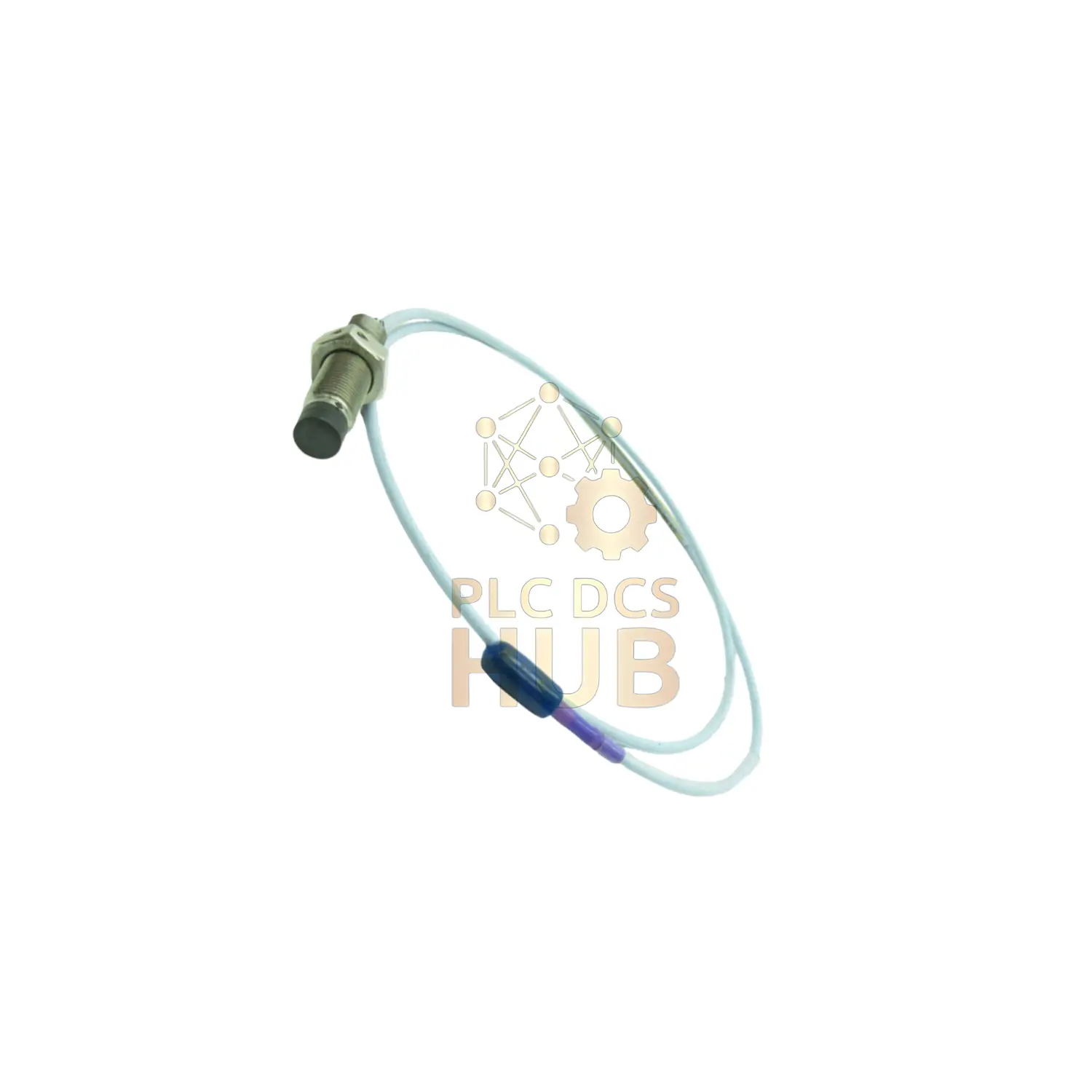

Bently Nevada 3300 XL Long-Body Proximity Probe
Precision 11mm vibration sensor with extended 2.4″ case – perfect for deep installations. Download full installation guide below.
Product Configuration Details
- Complete Part Number: 330707-00-24-10-12-00
• Probe base: 330707 (11mm, 5/8-18 UNF)
• Unthreaded: 00 (0 inch)
• Case length: 24 (2.4 inch)
• Cable: 10 (1.0 meter/3.3ft)
• Connection: 12 (ClickLoc + FluidLoc)
• Approvals: 00 (None required)
Measurement Specifications
- Electrical Resistance: 5.9Ω ±0.5Ω
- Operating Temperature: -51°C to +177°C
- Thread Depth: 5/8-18 UNF (0.938″ max)
- Bend Radius: Minimum 25.4mm (1.0 in)
- Shipping Weight: 0.17 kg
Installation Parameters
- Case Torque:
– Absolute maximum: 45.2 N•m
– Recommended: 15.2 N•m - Connector Handling: Finger tight only
- Temperature Alert: Seal damage risk below -34°C
- Cable Type: FluidLoc moisture protection
Construction Materials
- Measurement Tip: PPS plastic
- Probe Body: 304 stainless steel
- Cable Insulation: FEP material
- Sealing Element: Viton O-ring
Certification & Support
- Compliance: No agency approvals
- Origin: Made in USA
- Warranty: 12-month coverage
- Global Shipping: FedEx/UPS/DHL
Expert Questions Answered
- Q: Why choose 2.4″ case length?
A: Allows deeper mounting in hard-to-reach machinery spaces - Q: FluidLoc vs standard cable?
A: FluidLoc provides extra protection in wet/dirty conditions - Q: Pressure testing available?
A: Not standard – contact us for special pressure validation - Q: Can I cut the cable shorter?
A: No – cutting voids warranty and affects performance - Q: Suitable for food processing plants?
A: Yes – 304 stainless and PPS meet sanitary requirements
Get Installation Documents
Download full technical manual: 3300 XL 11 mm Proximity Transducer System Datasheet
Includes torque specifications, temperature guidelines, and wiring diagrams.
