Description

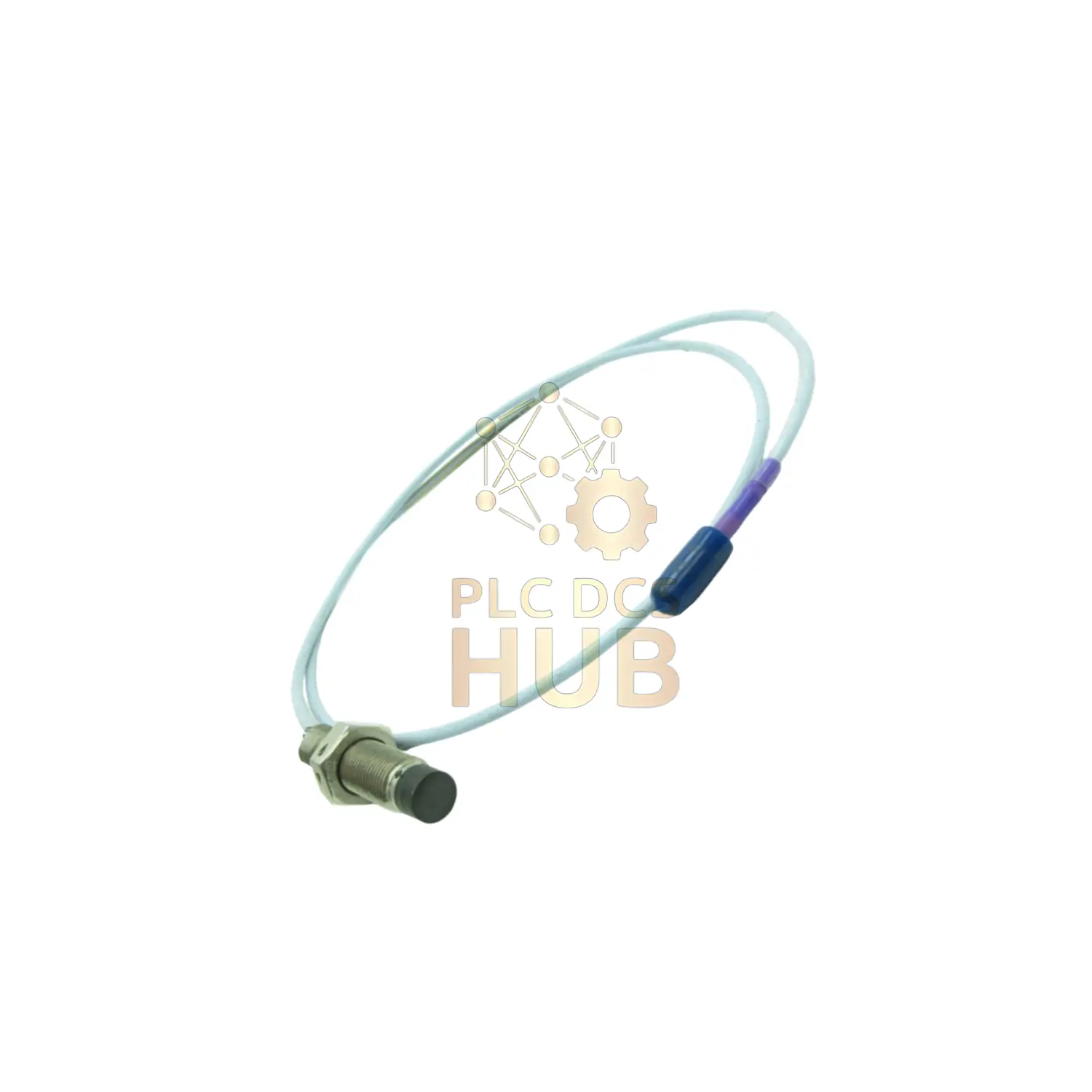

Bently Nevada 3300 XL Proximity Probe: Precision Machine Monitoring
New 330707-00-10-10-12-00 vibration sensor with 5/8-18 UNF thread. Made in USA. Includes optional Certificate of Origin. 12-month warranty.
Complete Model Breakdown
- 330707 – 11mm probe body
- 00 – 0″ unthreaded section
- 10 – 1.0″ case length
- 10 – 1.0m cable (3.3 ft)
- 12 – ClickLoc connector
- 00 – No approvals needed
Key Measurements
- Resistance: 5.9Ω ±0.5 (center to outer conductor)
- Temperature Range: -51°C to +177°C
- Min Bend Radius: 25.4mm (1.0 inch)
- Cable Options: 1m, 5m, 9m lengths
- Weight: 0.17 kg
Installation Specs
- Thread Type: 5/8-18 UNF
- Max Torque: 45.2 N•m (400 in•lb)
- Recommended Torque: 15.2 N•m (133 in•lb)
- Min Temp Warning: Do not install below -34°C
Construction Details
- Tip Material: PPS plastic
- Case Material: 304 stainless steel
- Seal Type: Viton O-ring
- Cable Type: 75Ω triaxial FEP
Shipping & Support
- Warranty: 12 months
- Carriers: FedEx, UPS, DHL
- Certificates: COO available
Technical FAQs
- Q: What does triaxial cable mean?
A: Three-layer design for better signal protection - Q: Can I get pressure testing?
A: Available through custom design department - Q: Minimum shaft size for measurement?
A: Works best on shafts 13mm+ diameter - Q: Chemical resistance of materials?
A: PPS tip and Viton seal resist most chemicals - Q: Connector torque specification?
A: Finger tight only (max 0.565 N•m)
