Description

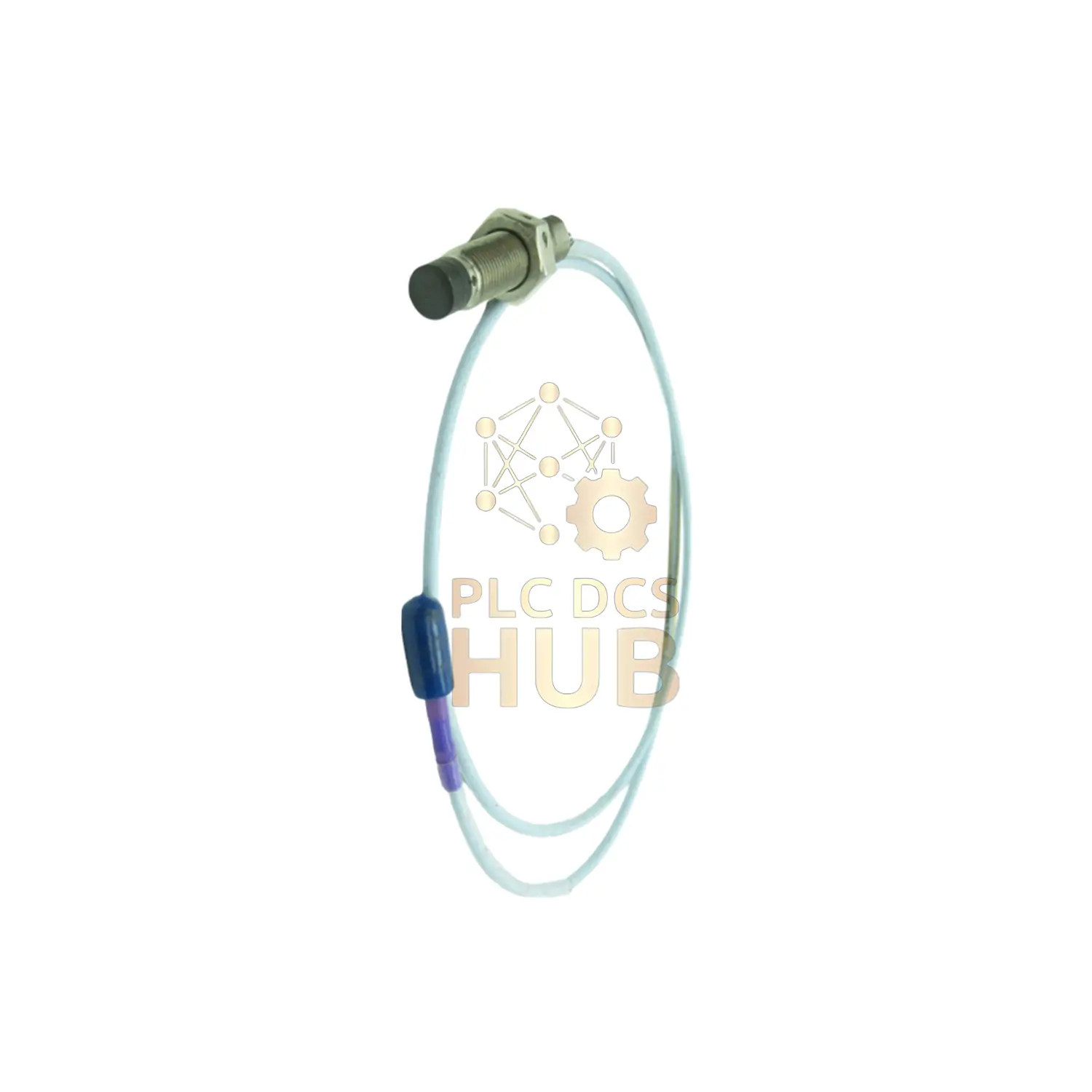

Bently Nevada 3300 XL Long-Reach Probe: Extended Monitoring Capability
Product Highlights
330707-00-24-90-11-05 with 9.0m FluidLoc cable and global approvals. Made in USA. Perfect for installations requiring extended reach.
Complete Part Number Details
330707-00-24-90-11-05 means:
- 330707: 5/8-18 UNF thread, no armor
- 00: 0″ unthreaded section
- 24: 2.4″ case length
- 90: 9.0m cable (29.5 ft)
- 11: ClickLoc with protector + FluidLoc
- 05: Multiple agency approvals
Key Specifications
- Cable Length: 9.0 meters (29.5 ft)
- Probe Resistance: 8.5Ω ±1.1
- Temp Range: -51°C to +177°C | Avoid below -34°C
- Thread Engagement: Max 0.938″
- Install Torque: 15.2 N•m recommended
- Bend Radius: Min 25.4mm
- Weight: 0.17 kg
Installation Guide
- Max case torque: 45.2 N•m
- Min bend radius: 25.4mm
- Keep above -34°C during install
- Connectors: Finger tight only
Expert Questions
- Q: What’s special about the 9.0m cable length?
A: Allows monitoring hard-to-reach equipment without extensions. - Q: Does cable length affect performance?
A: Resistance increases with length (8.5Ω at 9m vs 5.9Ω at 1m). - Q: Is FluidLoc needed for long cables?
A: Recommended for protection in long cable runs through harsh areas. - Q: How to manage the long cable?
A: Use cable ties every 50cm, maintain min bend radius. - Q: Can I cut the cable to shorter length?
A: No, this voids warranty and affects calibration.
