Description

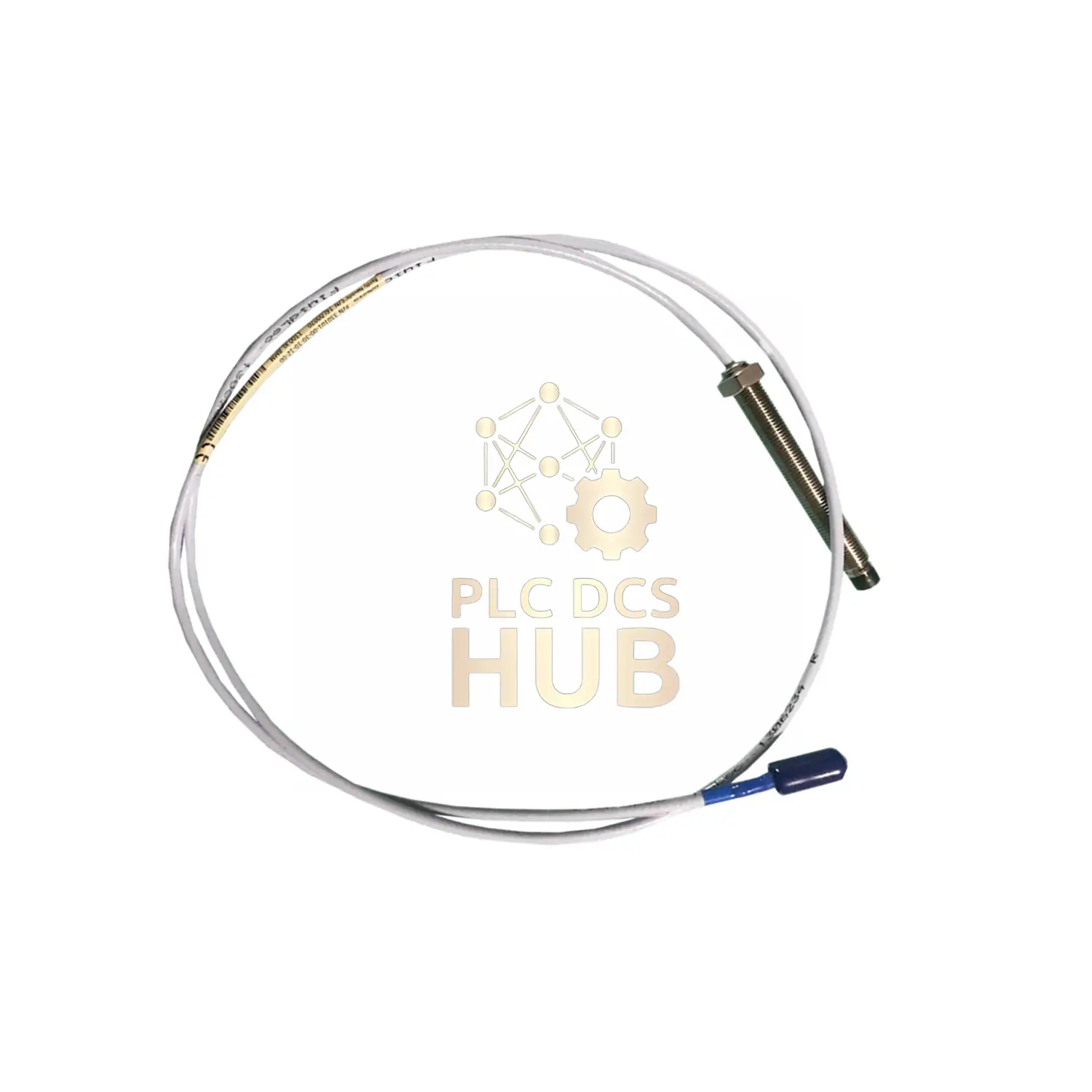

Bently Nevada 3300 XL 11mm Industrial Probe
Product Identification
330707-00-10-10-11-05 | Made in USA | COO available
Model Code Breakdown
- 330707 = 11mm probe · 5/8-18 thread · No armor
- 00 = 0″ unthreaded section
- 10 = 1.0″ case length
- 10 = 1.0 meter cable
- 11 = ClickLoc connector + FluidLoc cable
- 05 = Multiple safety approvals
Core Specifications
- Brand: Bently Nevada
- Sensing: 11mm diameter
- Tip: PPS plastic
- Case: Stainless steel
- Cable: Triaxial FluidLoc (1m/5m/9m)
- Temp: -51°C to +177°C
Electrical & Mechanical Data
- Resistance: 5.9Ω ±0.5Ω
- Cable type: 75Ω triaxial FEP
- Max torque: 45.2 N•m (400 in•lb)
- Bend radius: 25.4mm minimum
- Thread engagement: 0.938″ max
Environmental Limits
- Seal material: Viton O-ring
- Warning: Do not use below -34°C
- Pressure seal: Not factory tested
- Storage temp: Same as operating range
Shipping Details
- Weight: 0.17 kg
- Carriers: FedEx · UPS · DHL
- Packaging: Factory sealed
Professional FAQ
- Q: What is FluidLoc cable?
A: Special protection against liquids - Q: Cable length options?
A: 1m, 5m or 9m total length - Q: Thread type?
A: 5/8-18 UNF standard - Q: Minimum safe temperature?
A: -34°C to protect seal - Q: Pressure testing available?
A: Custom service only
