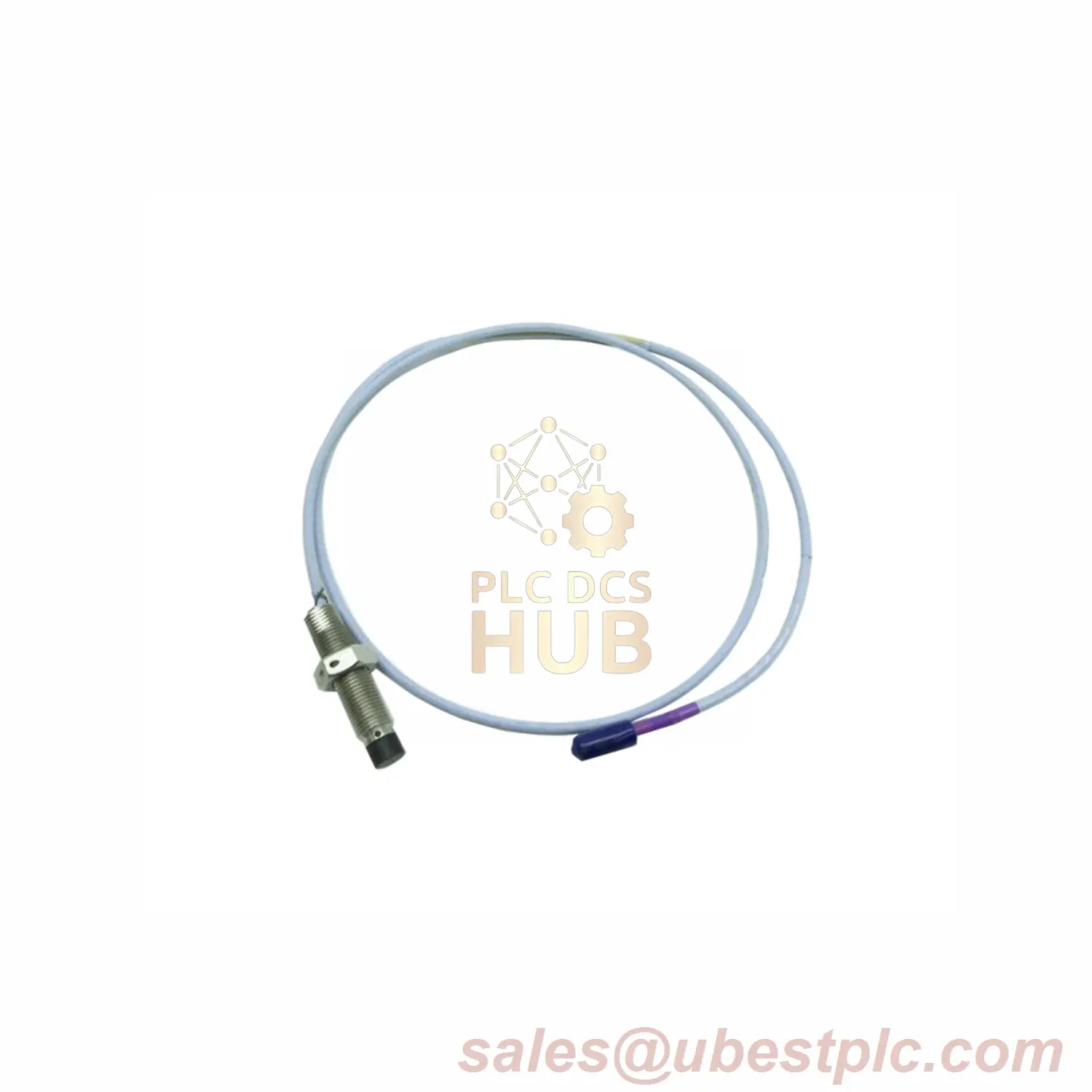

Bently Nevada 3300 XL 11mm Proximity Probe: Precision Industrial Monitoring
Product Description
Industrial-grade proximity probe for vibration and position monitoring. Features a polyphenylene sulfide (PPS) tip and AISI 304 stainless steel case. Designed for harsh environments with 9-meter FEP-insulated triaxial cable and ClickLoc connector. Sealed with Viton O-ring for pressure differentials.
Key Technical Data
- – Brand: Bently Nevada
- – Model: 3300 XL 11mm Probe
- – Full Suffix: 330707-00-24-90-02-05
- – Thread: 5/8-18 UNF (Max engagement: 0.938 in)
- – Cable: 9m (29.5 ft) triaxial, 75 Ω, FEP insulation
- – Resistance: 8.5Ω ±1.1Ω (center to outer conductor)
- – Temp Range: -51°C to +177°C (-60°F to +351°F)
- – Bend Radius: 25.4mm (1.0 in) min
- – Weight: 0.17 kg
Installation Guide
- – Case Torque: Max 45.2 N•m (400 in•lb), Recommended 15.2 N•m (133 in•lb)
- – Connector Torque: Finger tight (Max 0.565 N•m)
- – Warning: Avoid temperatures below -34°C (-30°F) to prevent seal damage
Compatibility & Certifications
- – Connector: Miniature coaxial ClickLoc (Standard cable)
- – Agency Approvals: Multiple international certifications (Option 05)
- – Material Compatibility: Resists oils, chemicals, and extreme temperatures
Package & Warranty
- – Includes: Probe
- – Warranty: 12-month guarantee
- – Shipping: FedEx, UPS, or DHL worldwide
FAQ
- Q: Pressure rating?
A: Not pressure-tested by default. Contact for custom sealing tests. - Q: Armor included?
A: No. This model (330707) is without armor. - Q: Minimum operating temp?
A: -51°C, but avoid sustained use below -34°C to protect seals. - Q: Cable alternatives?
A: Available in 1m, 5m, or 9m lengths (specify when ordering).
