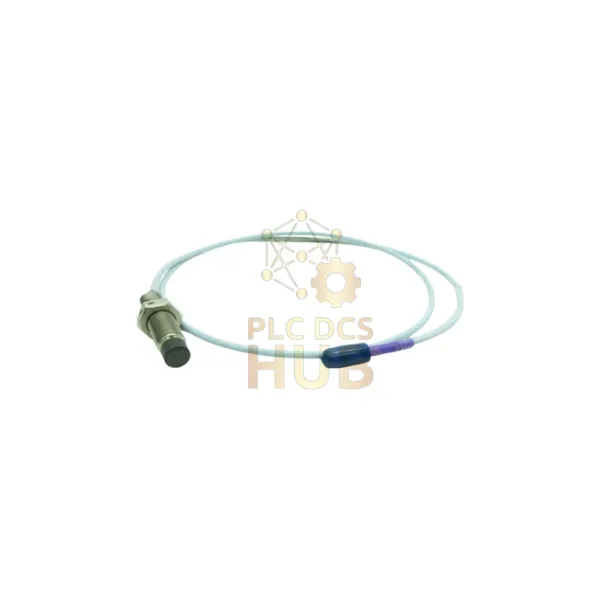

330707-00-24-50-11-05 Bently Nevada 3300 XL 11 mm Probe

Description

Bently Nevada 3300 XL 11mm Proximity Probe with Armor

Complete Product Identification

• Full Product Number: 330707-00-24-50-11-05
  • Base model: 330707 (11mm probe)
  • Unthreaded length: 00 (0 inch)
  • Case length: 24 (2.4 inch)
  • Cable length: 50 (5.0 meters / 16.4 feet)
  • Connector: 11 (ClickLoc with protector)
  • Approvals: 05 (Multiple certifications)

Key Specifications

• Thread Size: 1/2-20 UNF (Max 0.75″ engagement)
• Electrical Resistance: 7.2Ω ±0.8Ω
• Temperature Range: -51°C to +177°C
• Cable Type: FluidLoc with FEP insulation
• Armor: Stainless steel protection included
• Weight: 0.17 kg shipped

Installation Details

• Case Torque: Max 45.2 N•m (400 in•lb)
  Recommended 15.2 N•m (133 in•lb)
• Connector Torque: Finger tight only
• Min Bend Radius: 25.4mm (1.0 in)
• Important: Only for use with 5m Proximitor Sensors

Construction Materials

• Tip: Polyphenylene sulfide (PPS)
• Case: AISI 304 stainless steel
• Seal: Viton O-ring
• Cable: 75Ω triaxial with FluidLoc protection

Certifications & Shipping

• Approvals: Multiple international certifications
• Origin: Made in USA (COO available)
• Delivery: FedEx, UPS, DHL worldwide
• Warranty: 12-month quality guarantee

Professional FAQs

• Q: Can this probe handle wet environments?
  A: Yes, FluidLoc cable provides extra moisture protection
• Q: Is the armor removable?
  A: No, stainless steel armor is permanently attached
• Q: Why only for 5m Proximitor Sensors?
  A: Electrical calibration matches specifically with 5m systems
• Q: Pressure testing available?
  A: Custom pressure tests possible (contact before ordering)
• Q: Compatible with all 3300 XL monitors?
  A: Only compatible with 5-meter Proximitor Sensor systems
