Schneider 8-Channel Relay Output Module – Modicon Quantum | 140DRC83000

Description

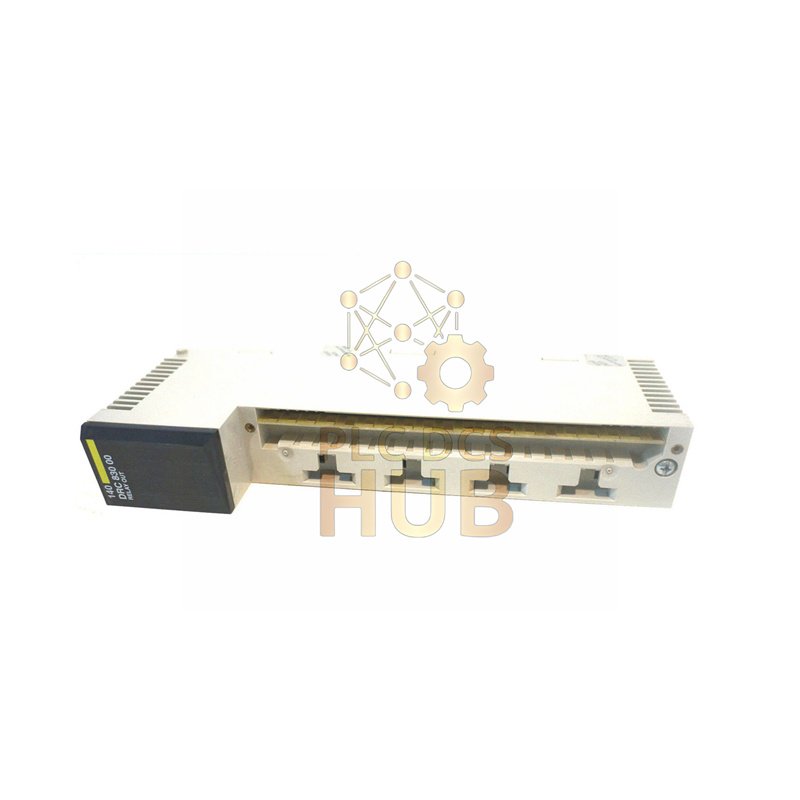

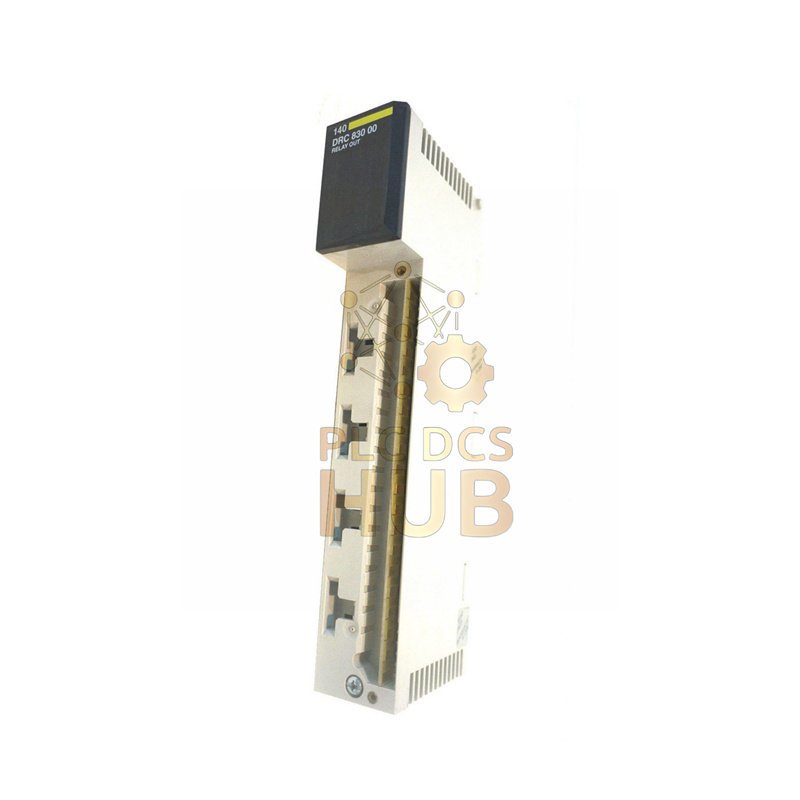

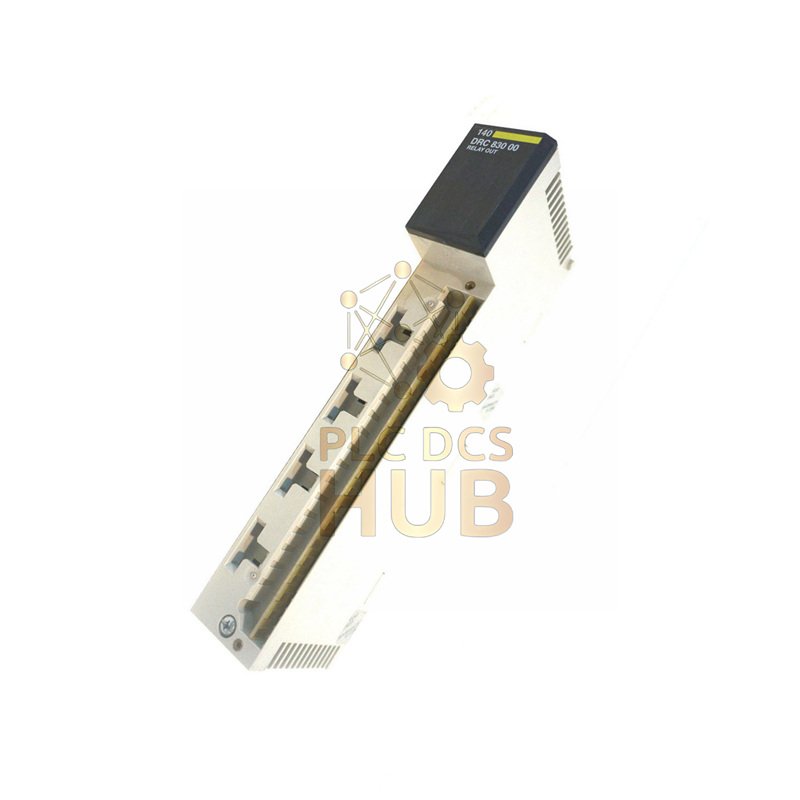

Schneider Electric 140DRC83000: Versatile 8-Channel Relay Output Module

Control high-power devices safely with the Schneider Electric 140DRC83000. This robust relay output module is built for the Modicon Quantum platform. It features 8 Form C relays that handle both AC and DC loads with ease. Perfect for switching motors, lights, and other industrial equipment.

Key Benefits at a Glance

• Wide Voltage Range: Works with 5-250V AC and 30-150V DC.
• High Current Capacity: Supports up to 5A resistive loads.
• Long Life: 10 million mechanical operations.
• Excellent Isolation: 2500V protection between channels and bus.
• Universal Compatibility: Handles AC/DC loads effortlessly.

Technical Specifications

Brand & Model: Schneider Electric 140DRC83000
Product Line: Modicon Quantum
Module Type: Relay Output Module
Number of Outputs: 8 Channels
Contact Type: Form C (1NO/1NC)
Voltage Range: 5-250V AC / 30-150V DC
Max Current: 5A resistive, 2A tungsten lamp
Switching Frequency: 30 Hz resistive
Response Time: 10ms ON, 20ms OFF
Isolation Voltage: 2500V DC
Power Consumption: 2.75W + (0.5 x points on)
Operating Temperature: 0°C to 60°C
Certifications: UL 508, CSA, FM Class 1 Div 2

Application & Installation

The 140DRC83000 module is ideal for controlling various loads without external relays. It uses only 0.5 words of output addressing. Each channel has individual status LEDs for easy monitoring. For technical support during installation, Support, Inquiry, Contact: +86 158 8020 0923.

Expert FAQs

• Q1: What does “Form C” contact mean?
  A: Form C means each relay has both Normally Open (NO) and Normally Closed (NC) contacts.
• Q2: Can this module control AC and DC simultaneously?
  A: Yes, different channels can control AC and DC loads at the same time.
• Q3: What is the maximum motor size it can start?
  A: It can directly start motors up to 1/4 HP at 250V AC.
• Q4: How long do the relays typically last?
  A: Mechanical life is 10 million operations; electrical life is 100,000-200,000 operations.
• Q5: Is surge protection included?
  A: Yes, each output has built-in varistor protection for 275V surges.

Quality Assurance & Delivery

We provide a 12-month warranty on this module. Orders ship worldwide via FedEx, UPS, and DHL for fast, reliable delivery.

Get Complete Technical Information

Download the full manual to access:

• Detailed wiring diagrams
• Load compatibility charts
• Safety guidelines
• Programming examples

Download the 140DRC83000 technical manual here.
